Xerox VersaLink B7030 Service Manual

April 2017
5-31
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.10
Parts Lists
Launch Issue

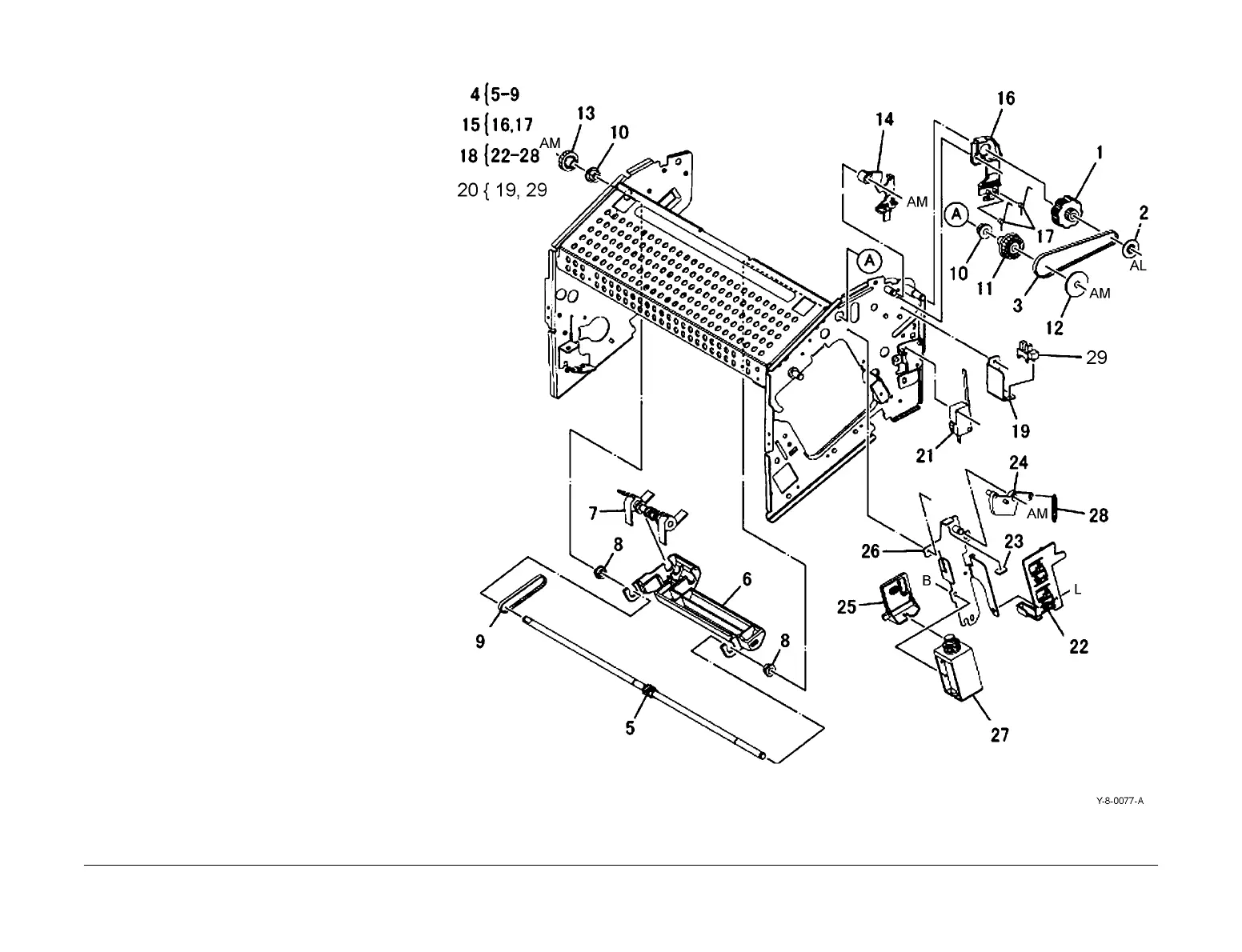

PL 12.10 Integrated Office Finisher
Base Assembly (1 of 5)
Item Part Description
1 – Pulley knob (Not Spared)
2 – Collar (Not Spared)
3 – Front paddle belt (Not Spared)
(REP 12.2)
4 012K96371 Link shaft assembly
5 – Link shaft (P/O PL 12.10 Item 4)
6 – Support (P/O PL 12.10 Item 4)
7 – Sub paddle shaft assembly (P/O PL
12.10 Item 4)
8 – Bearing (P/O PL 12.10 Item 4)
9 – Front paddle belt (P/O PL 12.10
Item 4) (REP 12.2)
10 – Bearing (Not Spared)
11 – Pulley (Not Spared)
12 – Collar (Not Spared)
13 – Gear (21T) (Not Spared)
14 – Actuator (Not Spared)
15 – Knob cover assembly (Not Spared)
16 – Knob Cover (P/O PL 12.10 Item 15)
17 – Spring (P/O PL 12.10 Item 15)
18 – Sub paddle solenoid assembly (Not
Spared)
19 – Bracket (P/O PL 12.10 Item 20)
20 068K30000 Finisher top cover interlock sensor
assembly
21 – Finisher top cover interlock (Not
Spared)
22 – Support (P/O PL 12.10 Item 18)
23 – Cushion (P/O PL 12.10 Item 18)
24 – Link (P/O PL 12.10 Item 18)
25 – Arm (P/O PL 12.10 Item 18)
26 – Bracket (P/O PL 12.10 Item 18)
27 121K34620 Sub paddle solenoid (SOL12-013)
(REP 12.3)
28 – Spring (P/O PL 12.10 Item 18)
29 – Finisher top cover interlock sensor
(P/O PL 12.10 Item 20)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
