Xerox VersaLink B7030 Service Manual

April 2017
5-10
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.10
Launch Issue
Parts Lists

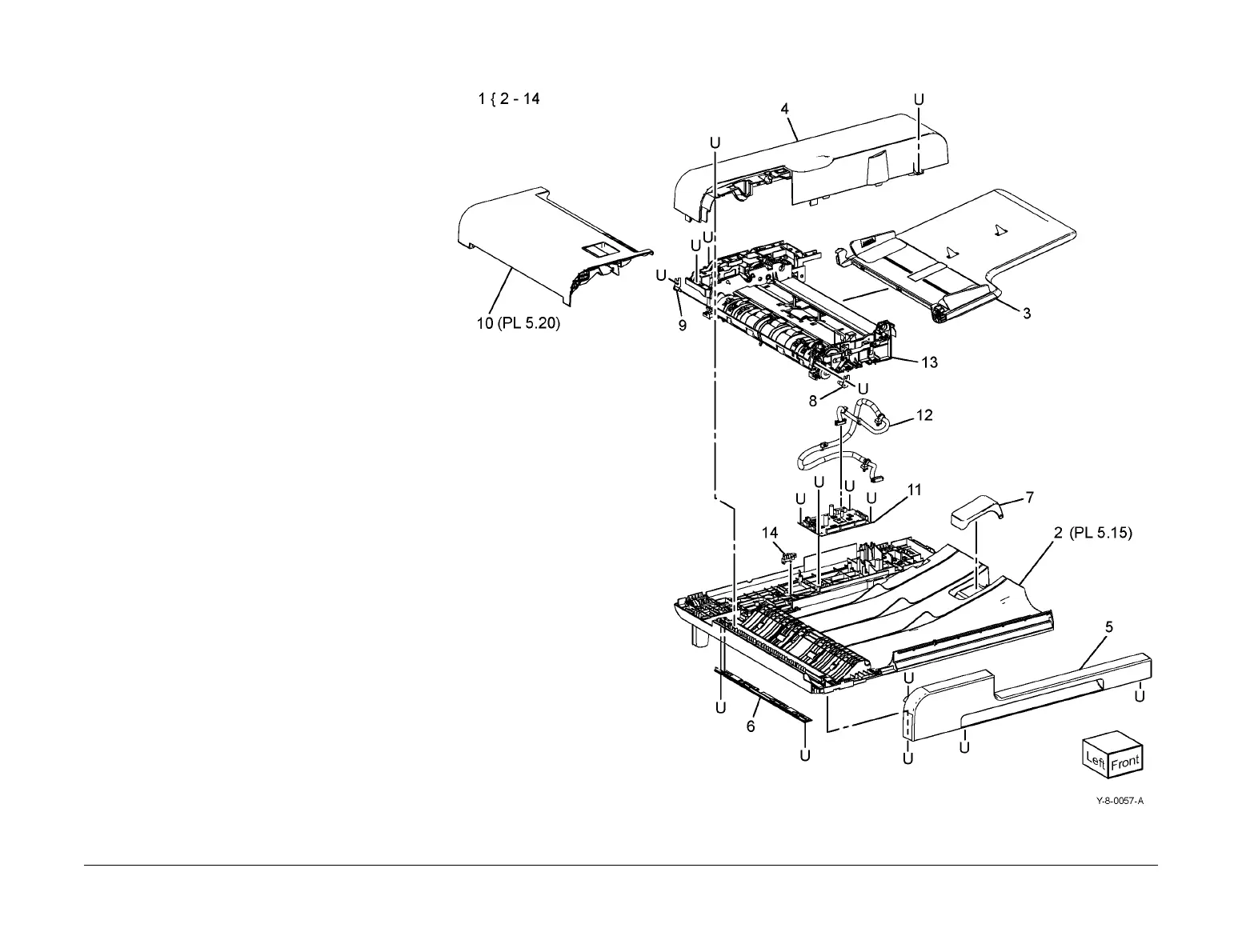

PL 5.10 DADF Components
Item Part Description
1 – Base frame and feeder assembly
(Not Spared) (REP 5.4)
2 801K64910 Base frame
3 050K73352 Document tray
4 – Rear cover (P/O PL 5.10 Item 1)
(REP 5.4)
5 – Front cover (P/O PL 5.10 Item 1)
(REP 5.3)
6 – Registration pinch cover (P/O PL
5.10 Item 1)
7 – Tray stopper (P/O PL 5.10 Item 1)
8 – Front hinge bracket (P/O PL 5.10
Item 1)
9 – Rear hinge bracket (P/O PL 5.10
Item 1)
10 – Upper feeder assembly (P/O PL
5.10 Item 1) (REP 5.6)
11 960K78321 DADF PWB (REP 5.5)
12 – I/F wire harness (P/O PL 5.10 Item
1)
13 – Feeder assembly (P/O PL 5.10
Item 1) (REP 5.7)
14 930W00121 CVT feeder cover sensor (Q05-
212)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
