Xerox VersaLink B7030 Service Manual

April 2017
4-118
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.20, REP 13.21
Launch Issue
Repairs and Adjustments
REP 13.20 Stacker Tray
Parts List on PL 13.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. If installed, remove the booklet maker assembly, REP 13.31.
2. Remove the front cover assembly, REP 13.6.
3. Remove the rear upper cover, REP 13.7.
4. Remove the stacker tray, Figure 1:
a. Remove four screws (1).
b. Remove the stacker tray (2).

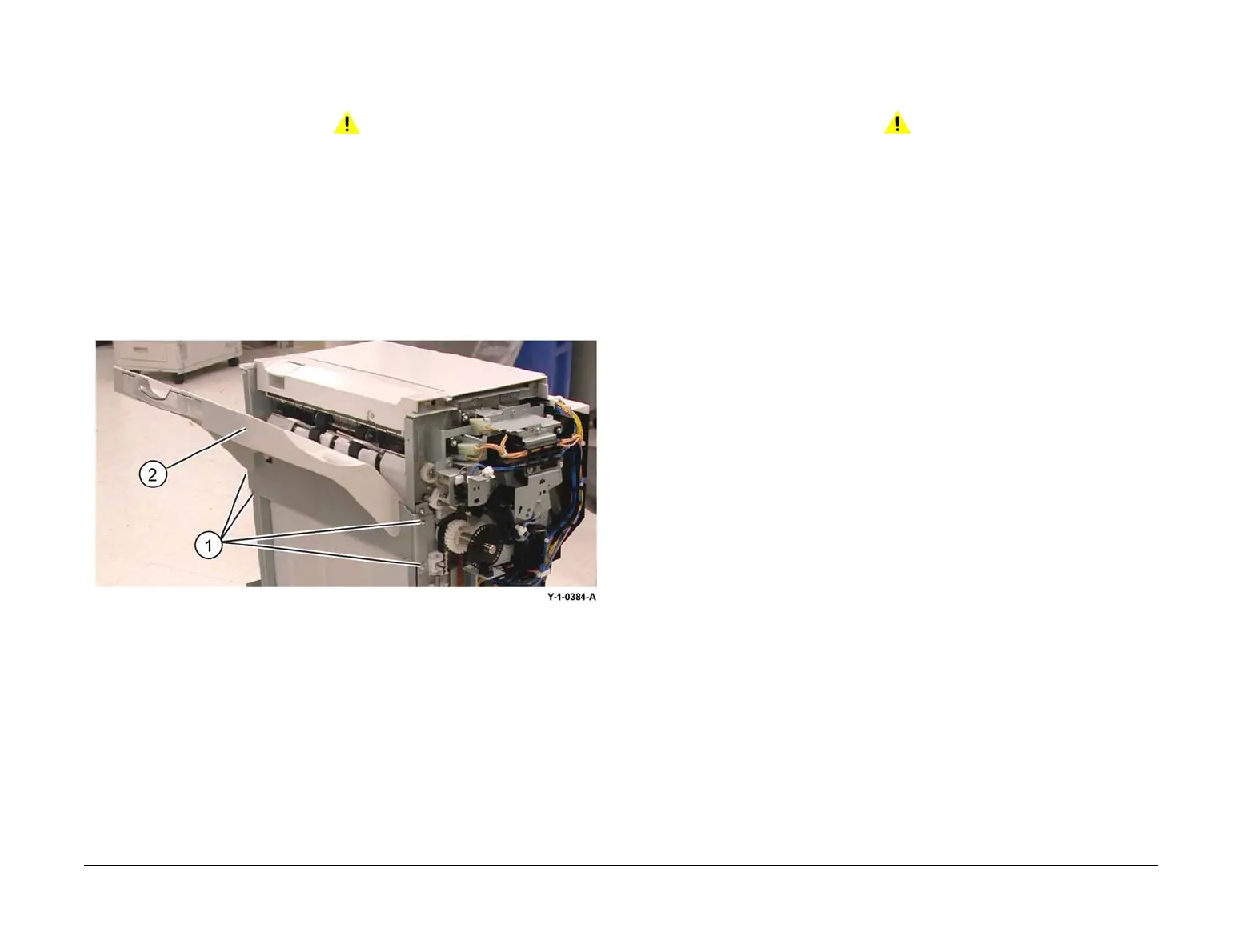

Figure 1 Stacker tray removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.21 Eject Belt
Parts List on PL 13.29
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the finisher, REP 13.5.
2. Remove the booklet maker, REP 13.31.
3. Remove the rear upper cover, REP 13.7.
4. Remove the eject motor, REP 13.25.
5. Remove the eject belt, PL 13.29 Item 10.
Replacement
The replacement is the reverse of the removal procedure.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
