Xerox VersaLink B7030 Service Manual

April 2017
4-55
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.1
Repairs and Adjustments
Launch Issue
REP 12.1 Integrated Office Finisher Removal
Parts List on PL 12.05 and PL 12.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the STM cover, PL 28.06 Item 1.

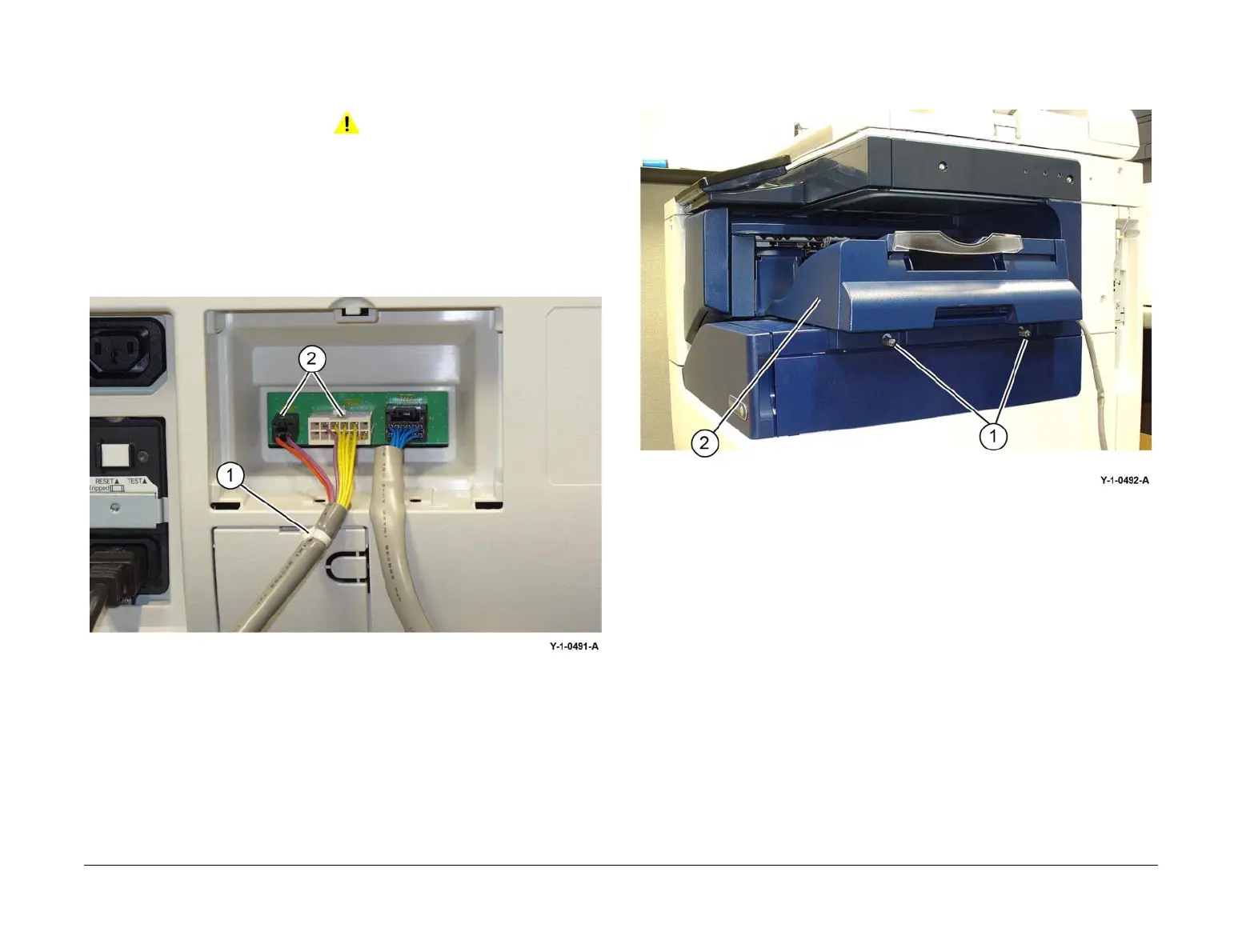

2. Disconnect the integrated office finisher harnesses, Figure 1:
a. Release the cable clamp (1).
b. Disconnect two connectors (2).
Figure 1 Connectors
3. Remove the integrated office finisher, Figure 2:
a. Remove two thumbscrews (1).
b. Remove the integrated office finisher (2) towards the front of the machine.
Figure 2 Finisher removal
Replacement
Reverse the removal procedure for replacement.
