Xerox VersaLink B7030 Service Manual

April 2017
5-25
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.15
Parts Lists
Launch Issue

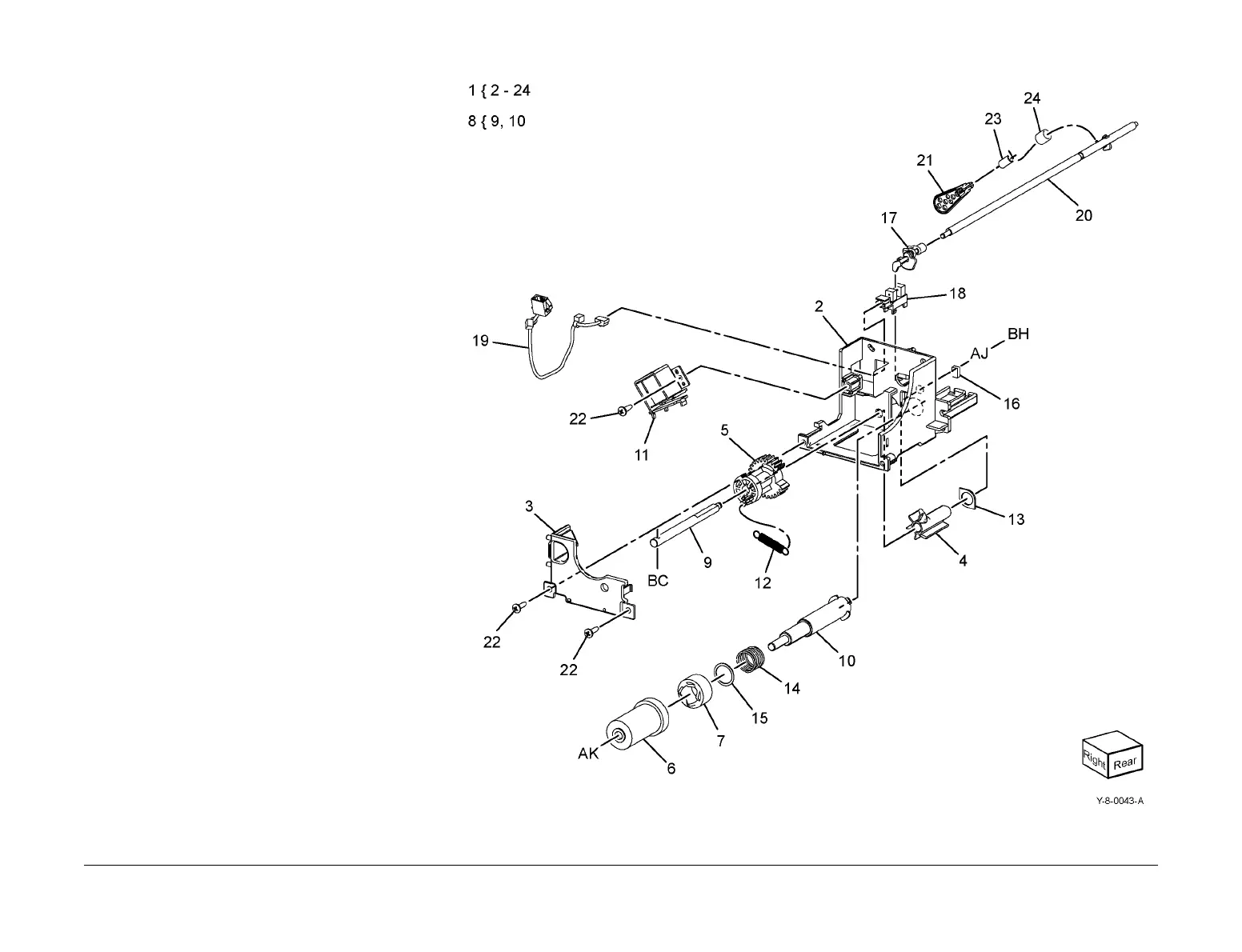

PL 10.15 Exit 1 Base Assembly
Item Part Description
1 – Exit 1 base assembly (Not Spared)
2 – Base exit 1 (P/O PL 10.15 Item 1)
3 – Base exit 1 cover (P/O PL 10.15
Item 1)
4 – Cam screw (P/O PL 10.15 Item 1)
5 – OCT segment gear (P/O PL 10.15
Item 1)
6 – Exit 1 idler gear (P/O PL 10.15 Item
1)
7 – Coupling gear (P/O PL 10.15 Item
1)
8 – Exit 1 shaft assembly (P/O PL
10.15 Item 1)
9 – Cam shaft (P/O PL 10.15 Item 8)
10 – Idler gear shaft (P/O PL 10.15 Item
8)
11 – Exit 1 offset solenoid (SOL77-010)
(P/O PL 10.15 Item 1)
12 – Cam spring (P/O PL 10.15 Item 1)
13 – Cam screw pad (P/O PL 10.15 Item
1)
14 – OCT safety spring (P/O PL 10.15
Item 1)
15 – Exit 1 washer (P/O PL 10.15 Item
1)
16 – OCT back pad (P/O PL 10.15 Item
1)
17 – Full sensor actuator (P/O PL 10.15
Item 1)
18 930W00113 Exit 1 OCT full stack sensor (Q77-
124)
19 – Exit harness assembly (P/O PL
10.15 Item 1)
20 – Full stack B shaft (P/O PL 10.15
Item 1)
21 – Full actuator (P/O PL 10.15 Item 1)
22 – Screw (P/O PL 10.15 Item 1)
23 – Spring pipe (P/O PL 10.15 Item 1)
24 – Spring (P/O PL 10.15 Item 1)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
