April 2017
4-5
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 1.1
Repairs and Adjustments
Launch Issue
REP 1.1 HVPS
Parts List on PL 1.10
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.

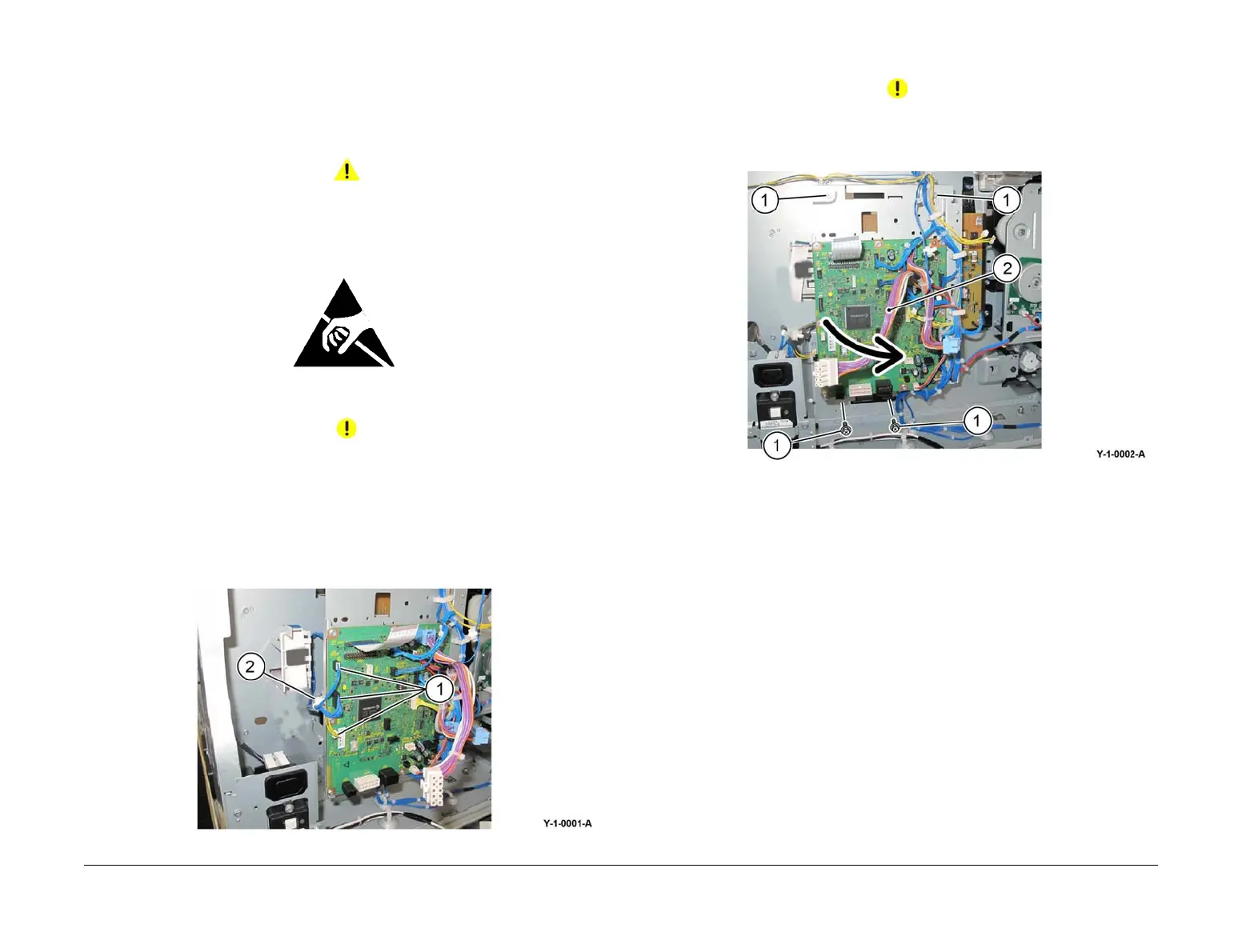

Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. Remove the upper rear cover, REP 28.5.
2. Remove the lower rear cover, REP 28.6.
3. Remove the ESS PWB chassis assembly, REP 3.2.
4. Remove the LVPS assembly, REP 1.4.
5. Disconnect three connectors (1), then release the harness from the clamp (2), Figure 2.
Figure 2 Connectors
6. Prepare to remove the HVPS, Figure 3:
a. Remove four screws (1).
CAUTION
When moving the drive PWB assembly, take care not to damage the harnesses.
b. Move the drive PWB assembly (2) in the direction of the arrow.
Figure 3 Preparation
To Next Page
