Xerox VersaLink B7030 Service Manual

April 2017
4-41
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.13, REP 5.14
Repairs and Adjustments
Launch Issue
9. Remove the gear pulley, Figure 4:
a. Loosen the screw (1).
b. Remove the tension spring (2).
c. Remove the gear pulley (3).

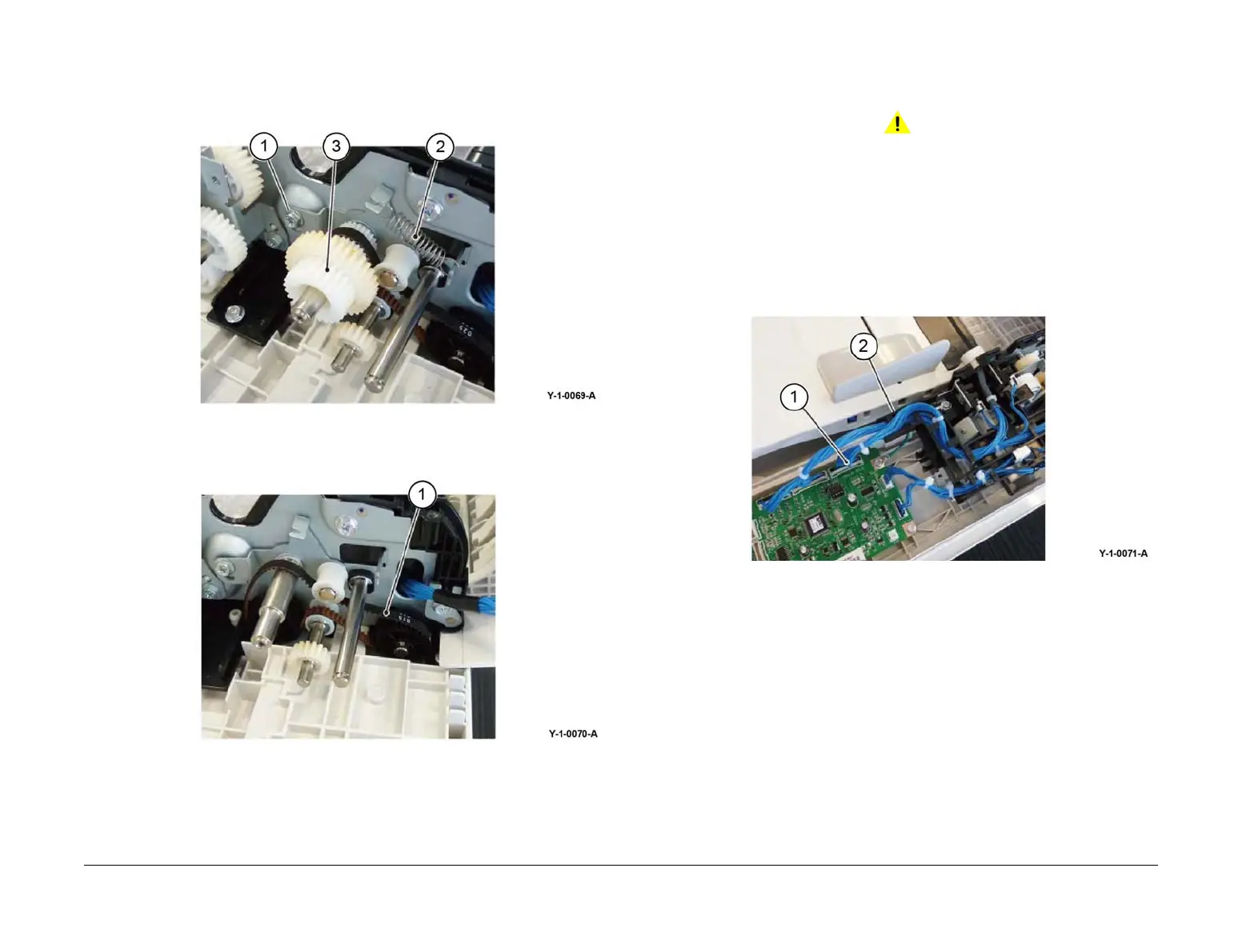

Figure 4 Gear pulley removal
10. Remove the DADF drive belt (1), Figure 5.
Figure 5 Drive belt removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the belt is fully tensioned before tightening the screw, refer to Figure 4.
REP 5.14 Document Tray
Parts List on PL 5.45
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3.
2. Remove the DADF rear cover, REP 5.4.
3. Remove the document tray harness, Figure 1:
a. Disconnect the connector (1).
b. Remove the harness from the harness guide (2).
Figure 1 Harness removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
