Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.07
Parts Lists
Launch Issue

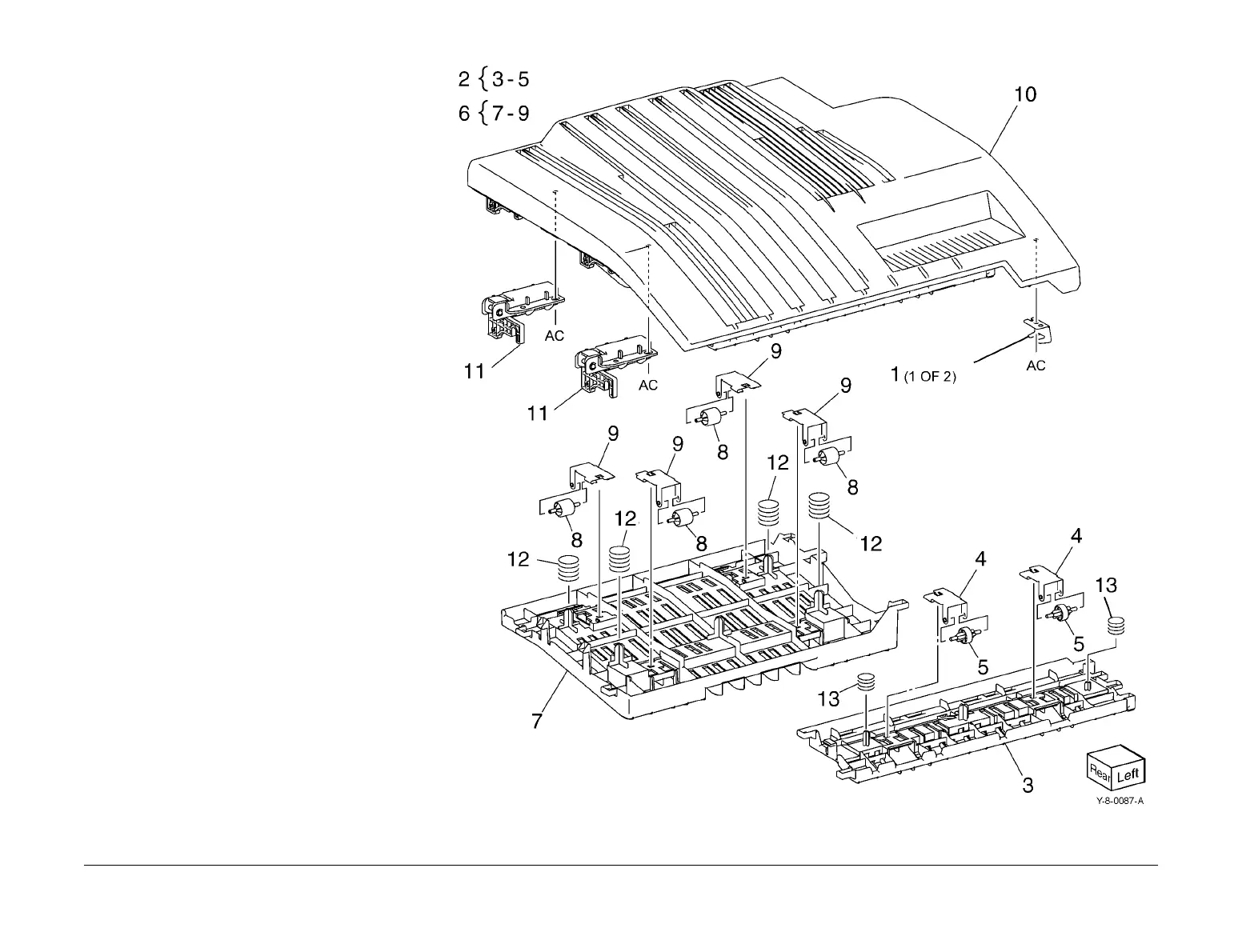

PL 13.07 H-Transport Assembly (3 of
5)
Item Part Description
1 – Bracket (P/O PL 13.06 Item 4)
2 054K50020 Left chute assembly
3 – Left chute (P/O PL 13.07 Item 2)
4 – Pinch spring (P/O PL 13.07 Item 2)
5 – Pinch roller (P/O PL 13.07 Item 2)
6 054K35246 Right chute assembly
7 – Right chute (P/O PL 13.07 Item 6)
8 – Nip roll (P/O PL 13.07 Item 6)
9 – Nip spring (P/O PL 13.07 Item 6)
10 – Top cover (Not Spared)
11 – H-Transport counter balance (Not
Spared)
12 – Spring (Not Spared)
13 – Spring (Not Spared)
