Xerox VersaLink B7030 Service Manual

April 2017
4-203
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.25, REP 80.26
Repairs and Adjustments
Launch Issue
REP 80.25 HCF Nudger Bracket/Nudger Lever/Torsion
Spring
Parts List on PL 80.61
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HCF feed shaft, REP 80.23.
2. Disassemble the feed shaft by removing (4) E-rings and unscrewing the nudger support
that retains the torsion spring.
Replacement
The replacement is the reverse of the removal procedure.
REP 80.26 HCF Takeaway Roll
Parts List on PL 70.55
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HCF feed motor, REP 80.27.
2. Remove the takeaway roll, Figure 1:
a. Remove two screws, then the lower chute (1).
b. Slide the takeaway roll (2) to the rear until the front end is released, then lower the
roll to remove.

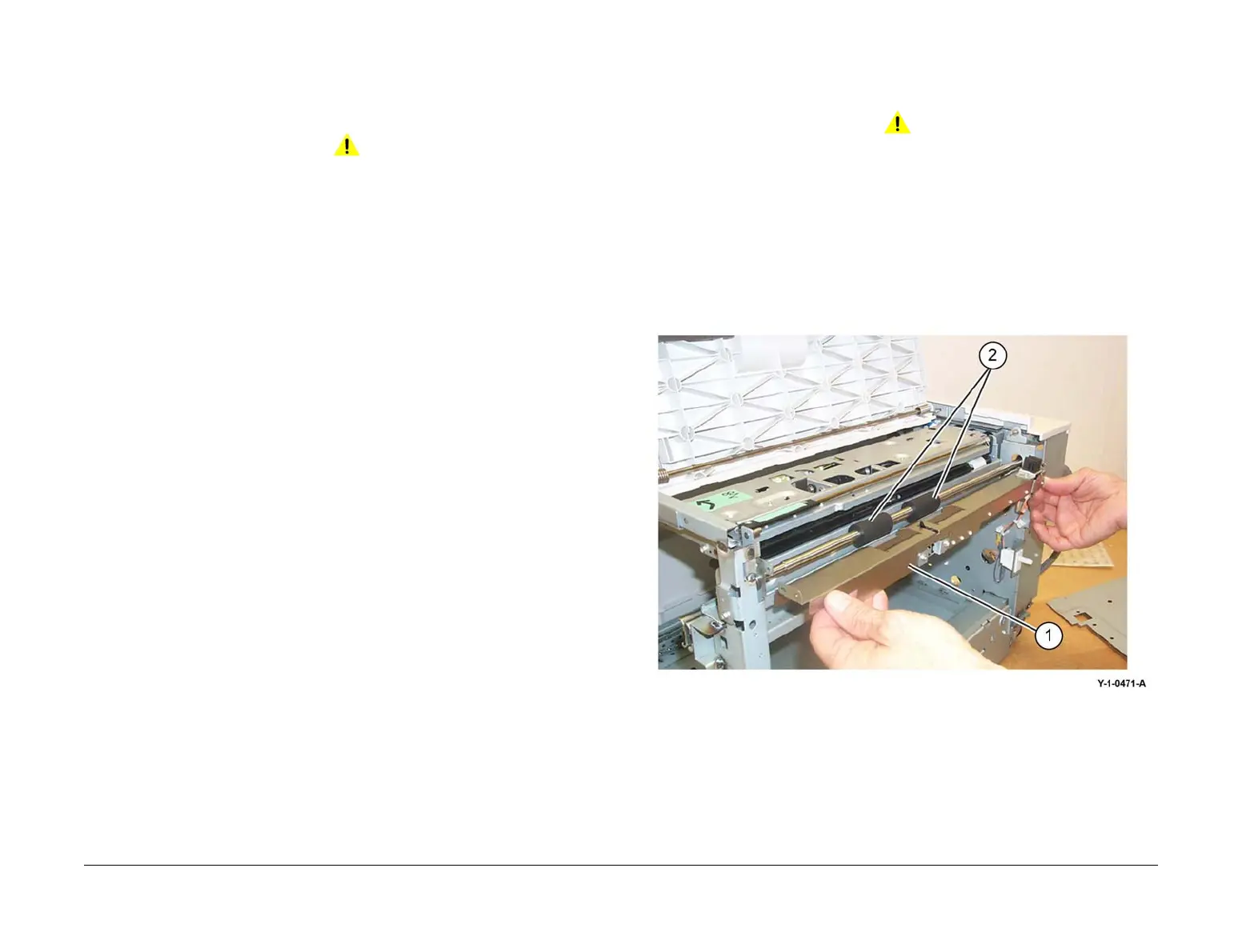

Figure 1 Lower chute removal
Replacement
The replacement is the reverse of the removal procedure.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
