Xerox VersaLink B7030 Service Manual

April 2017
4-215
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.40, REP 80.41
Repairs and Adjustments
Launch Issue
REP 80.40 Transfer Gear (TTM)
Parts List on PL 70.85
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Pull out tray 3. Remove the paper.
2. Remove the bracket assembly, PL 70.85 Item 9.
3. Remove the transfer gear, PL 70.85 Item 8 from the bracket.
Replacement
The replacement is the reverse of the removal procedure.
REP 80.41 TTM Takeaway Rolls and Bearings
Parts List on PL 80.65
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Perform the relevant procedure:
• Upper (Tray 2) Takeaway Roll
• Lower (Tray 3 and 4) Takeaway Roll
Upper (Tray 2) Takeaway Roll
1. Pull out trays 2, 3 and 4. Remove the paper.
2. Remove trays 2, 3 and 4.
3. Remove the tray 2 feeder assembly, REP 80.33.
4. Remove the rear cover, PL 70.95 Item 8.
5. Remove the takeaway motor assembly, PL 70.85 Item 1.

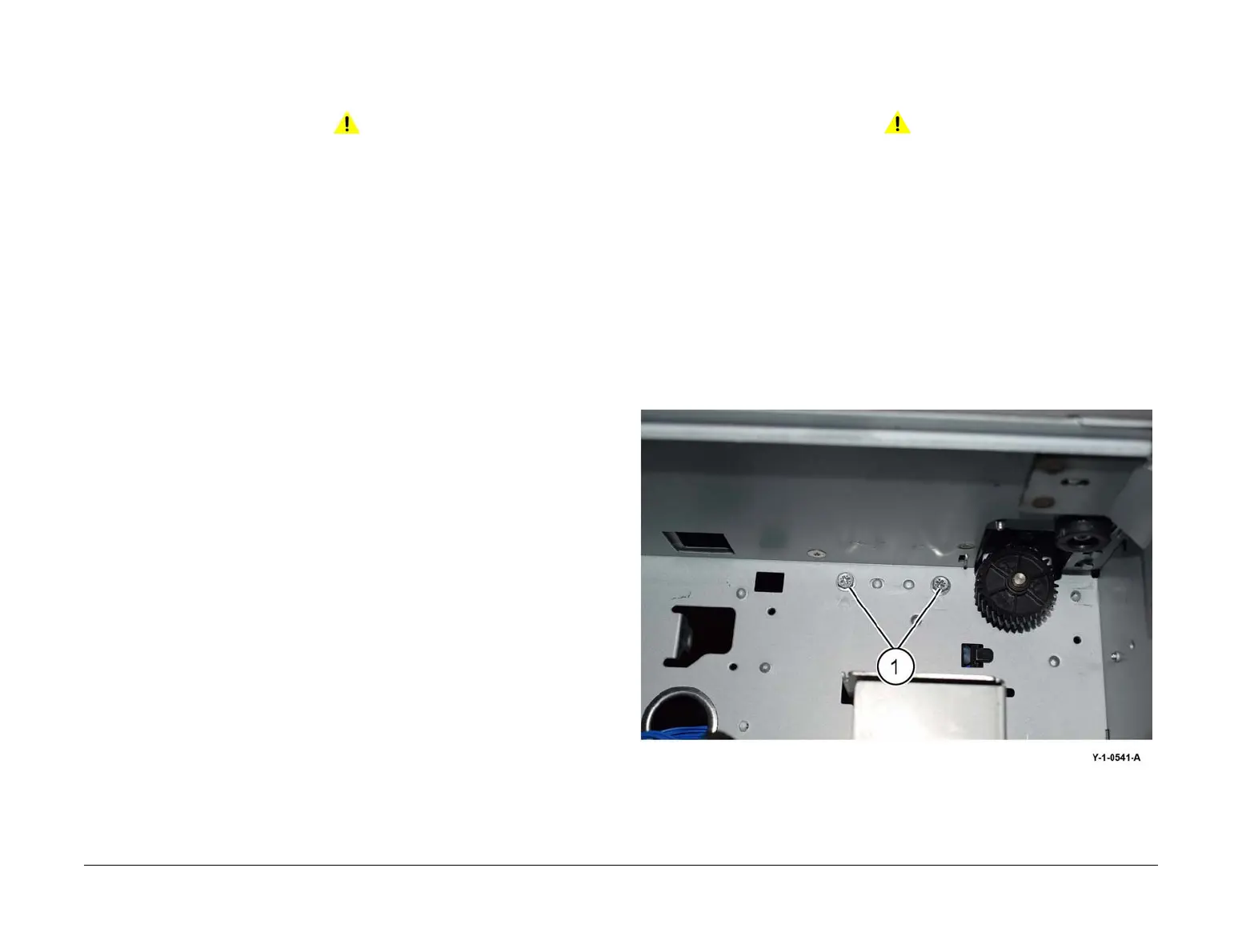

6. Remove two rear screws (1), Figure 1.
Figure 1 Rear screw removal
