April 2017
4-153
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.6, REP 60.7
Repairs and Adjustments
Launch Issue
5. Remove the light guide, Figure 2:
a. Remove the screw (1).
b. Remove the spring guide (2).
c. Remove the screw (3).
d. Remove the spring guide (4).
e. Remove the light guide (5).

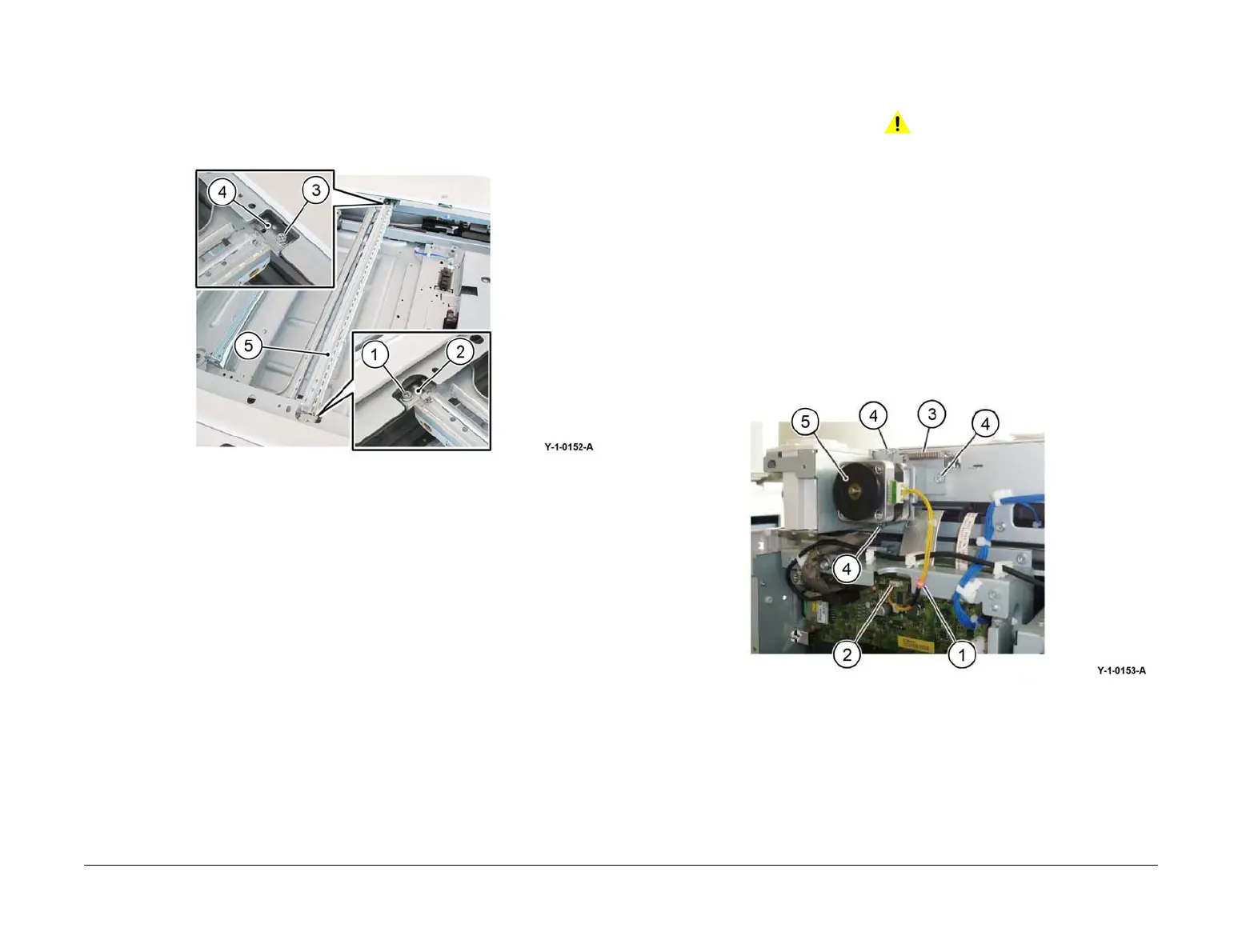

Figure 2 Light guide removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. When installing the light guide, insert the boss into the locating hole in the full rate car-
riage.
REP 60.7 IIT Scan Motor Assembly
Parts List on PL 60.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF, REP 5.1.
2. Remove the IIT rear cover, PL 60.05 Item 4.
3. Remove the IIT top cover, PL 60.05 Item 3.
4. Remove the IIT scan motor assembly, Figure 1:
a. Release the cable clamp (1).
b. Disconnect the connector (2).
c. Remove the extension spring (3).
d. Remove three screws (4).
e. Remove the IIT scan motor assembly (5).
Figure 1 IIT scan motor assembly removal
To Next Page
