April 2017
5-33
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.12
Parts Lists
Launch Issue

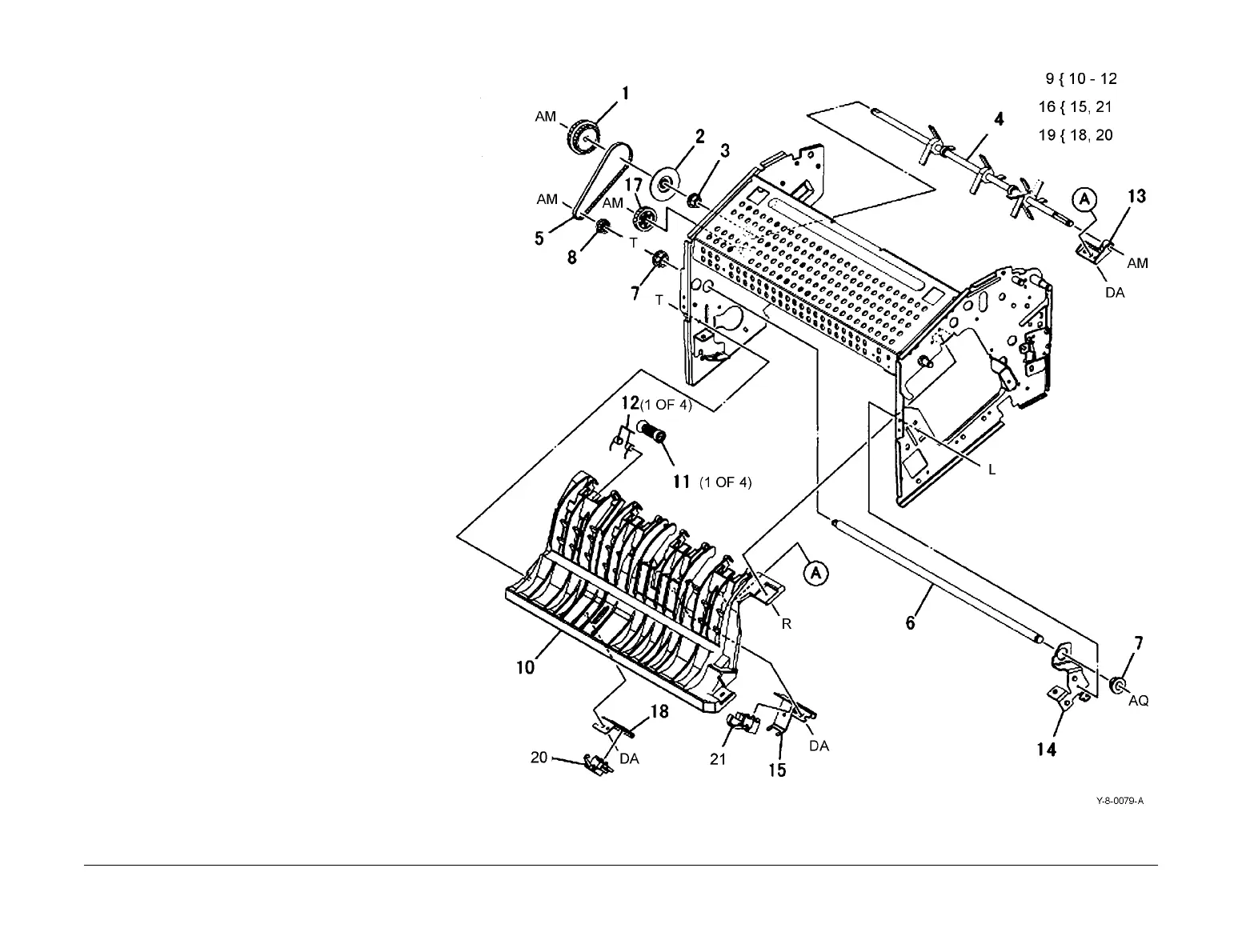

PL 12.12 Integrated Office Finisher
Base Assembly (3 of 5)
Item Part Description
1 – Gear pulley (37T/45T) (Not Spared)
2 – Collar (Not Spared)
3 – Bearing (Not Spared)
4 006K25001 Main paddle shaft assembly (REP
12.10)
5 – Belt (Not Spared)
6 – Shaft (Not Spared)
7 – Bearing (Not Spared)
8 – Pulley (19T) (Not Spared)
9 054K30361 Lower chute assembly
10 – Lower chute (P/O PL 12.12 Item 9)
11 – Nip roll (P/O PL 12.12 Item 9) (REP
12.7)
12 – Spring (P/O PL 12.12 Item 9)
13 – Support (Not Spared)
14 – Bracket (Not Spared)
15 – Bracket (P/O PL 12.12 Item 16)
16 068K29850 Compile exit sensor assembly
(Q12-150) (REP 12.9)
17 – Gear (27T) (Not Spared)
18 – Bracket (P/O PL 12.12 Item 19)
19 068K30520 Entry sensor assembly (Q12-140)
(REP 12.8)
20 – Entry sensor (Q12-140) (P/O PL
12.12 Item 19)
21 – Compile exit sensor (Q12-150) (P/
O PL 12.12 Item 16)
