Xerox VersaLink B7030

April 2017
5-3
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 1.05
Parts Lists
Launch Issue

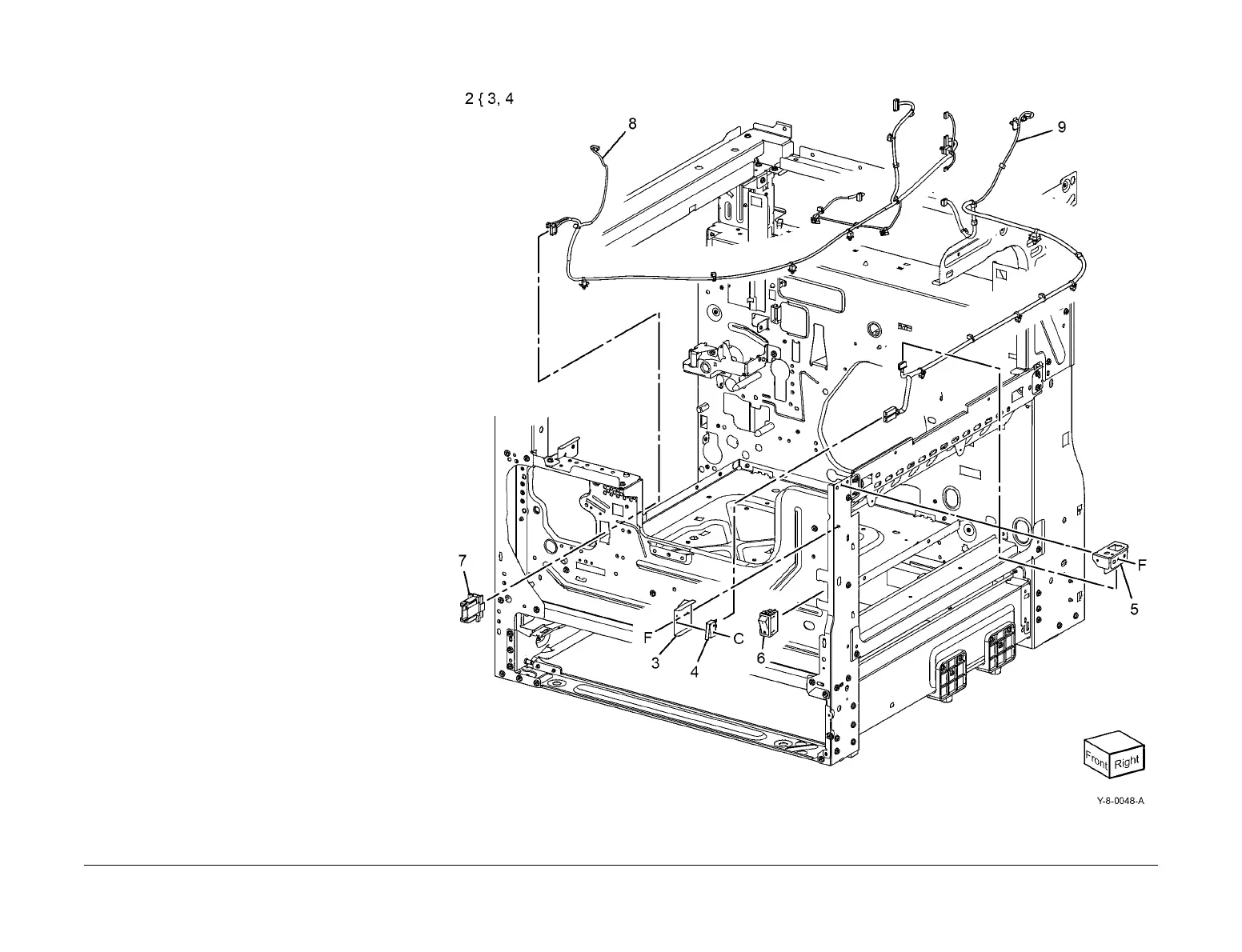

PL 1.05 Electrical Front Upper
Item Part Description
1 – Not used
2 110K18110 Interlock switch assembly
3 – Bracket (Not Spared)
4 – Front cover interlock switch (P/O
PL 1.05 Item 2)
5 – Bracket (Not Spared)
6 110E15080 Main power switch
7 – Connector panel (Not Spared)
8 – Wire harness (front) (Not Spared)
9 – Wire harness (SW) (Not Spared)
