April 2017
5-78
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.05
Launch Issue
Parts Lists

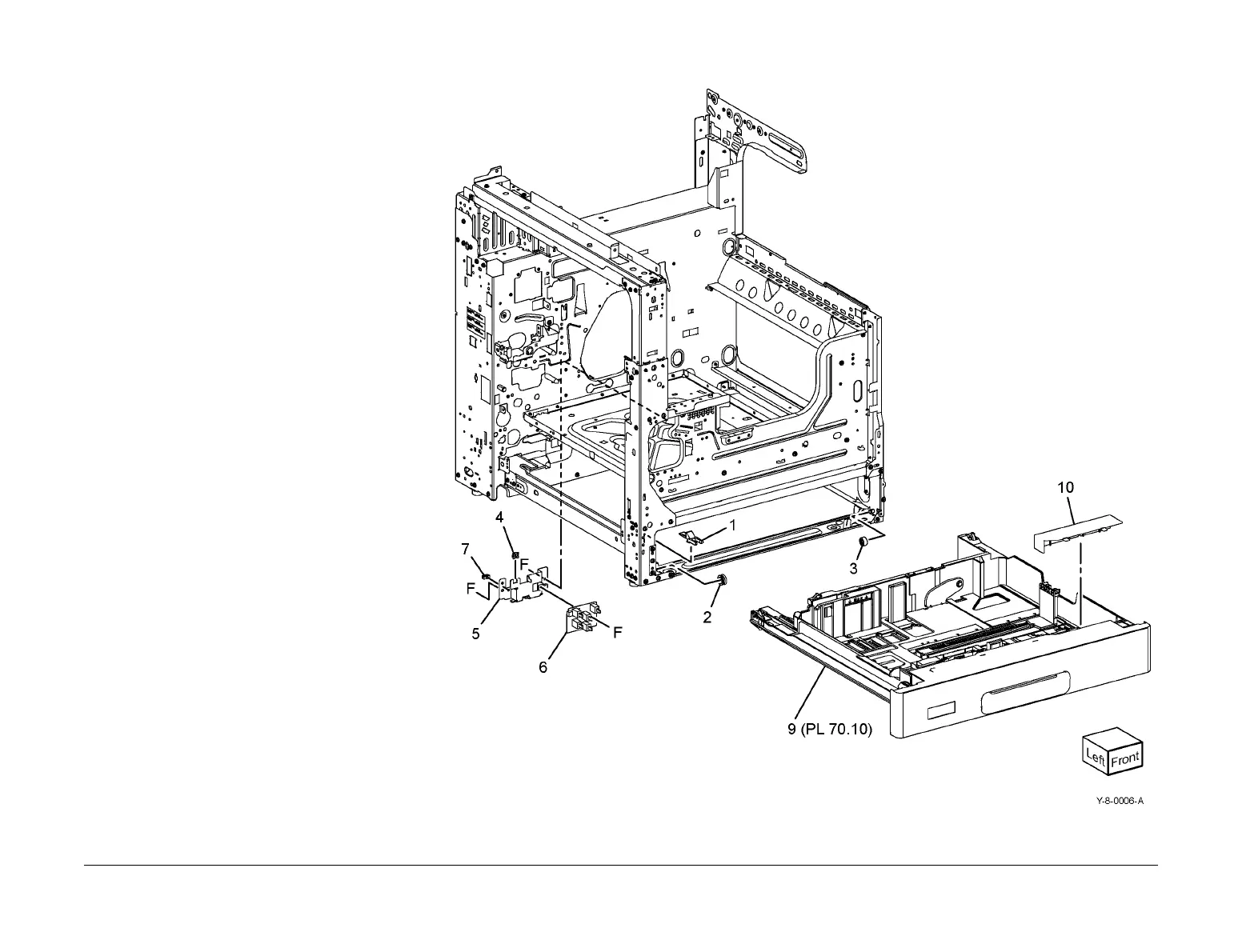

PL 70.05 Tray 1
Item Part Description
1 003E75432 Stopper
2 059E10660 Left roller
3 059E08410 Right roller
4 – Locking clamp (Not Spared)
5 – Switch bracket (Not Spared)
6 110K12100 Tray 1 size sensor (REP 70.1)
7 – Locking clamp (Not Spared)
8 – Not used
9 – Tray 1 assembly (REF: PL 70.10
Item 1) (REP 70.11)
10 – RAI cover (Not Spared)
