Xerox VersaLink B7030 Service Manual

April 2017
5-97
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.55
Parts Lists
Launch Issue

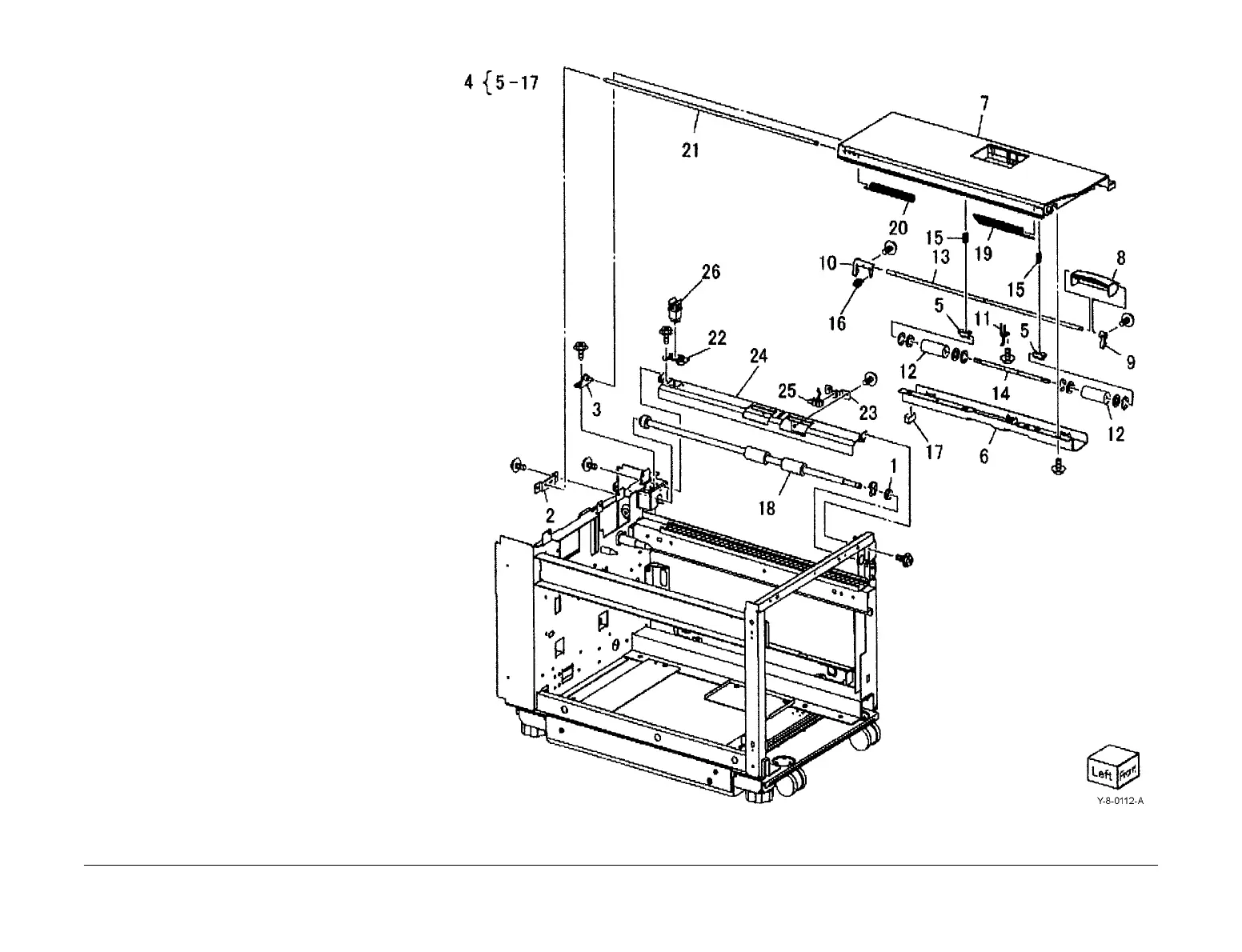

PL 70.55 HCF Top Cover Assembly
Item Part Description
1 013E17100 Bearing
2 – Bracket (Not Spared)
3 – Pivot bracket (Not Spared)
4 – Top cover assembly (Not Spared)
5 – Bearing (P/O PL 70.55 Item 4)
6 – Upper chute (P/O PL 70.55 Item 4)
7 – Top cover (P/O PL 70.55 Item 4)
8 – Knob (P/O PL 70.55 Item 4)
9 – Latch (P/O PL 70.55 Item 4)
10 – Latch (P/O PL 70.55 Item 4)
11 – Spring (P/O PL 70.55 Item 4)
12 059E01430 Nip roll
13 – Shaft (P/O PL 70.55 Item 4)
14 – Shaft (P/O PL 70.55 Item 4)
15 – Spring (P/O PL 70.55 Item 4)
16 – Spring (P/O PL 70.55 Item 4)
17 – Gasket (P/O PL 70.55 Item 4)
18 059K36260 Takeaway roll (REP 80.26)
19 – Spring (left) (P/O PL 70.45 Item 16)
20 – Spring (right) (P/O PL 70.45 Item
16)
21 – Pivot shaft (P/O PL 70.45 Item 16)
22 – Bracket (P/O PL 70.45 Item 5)
23 – Bracket (P/O PL 70.45 Item 16)
24 – Lower chute (P/O PL 70.45 Item
16)
25 130K88150 HCF feed out sensor (Q78-101)
26 110E94770 Top cover interlock switch
