Xerox VersaLink B7030 Service Manual

April 2017
5-88
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.26
Launch Issue
Parts Lists

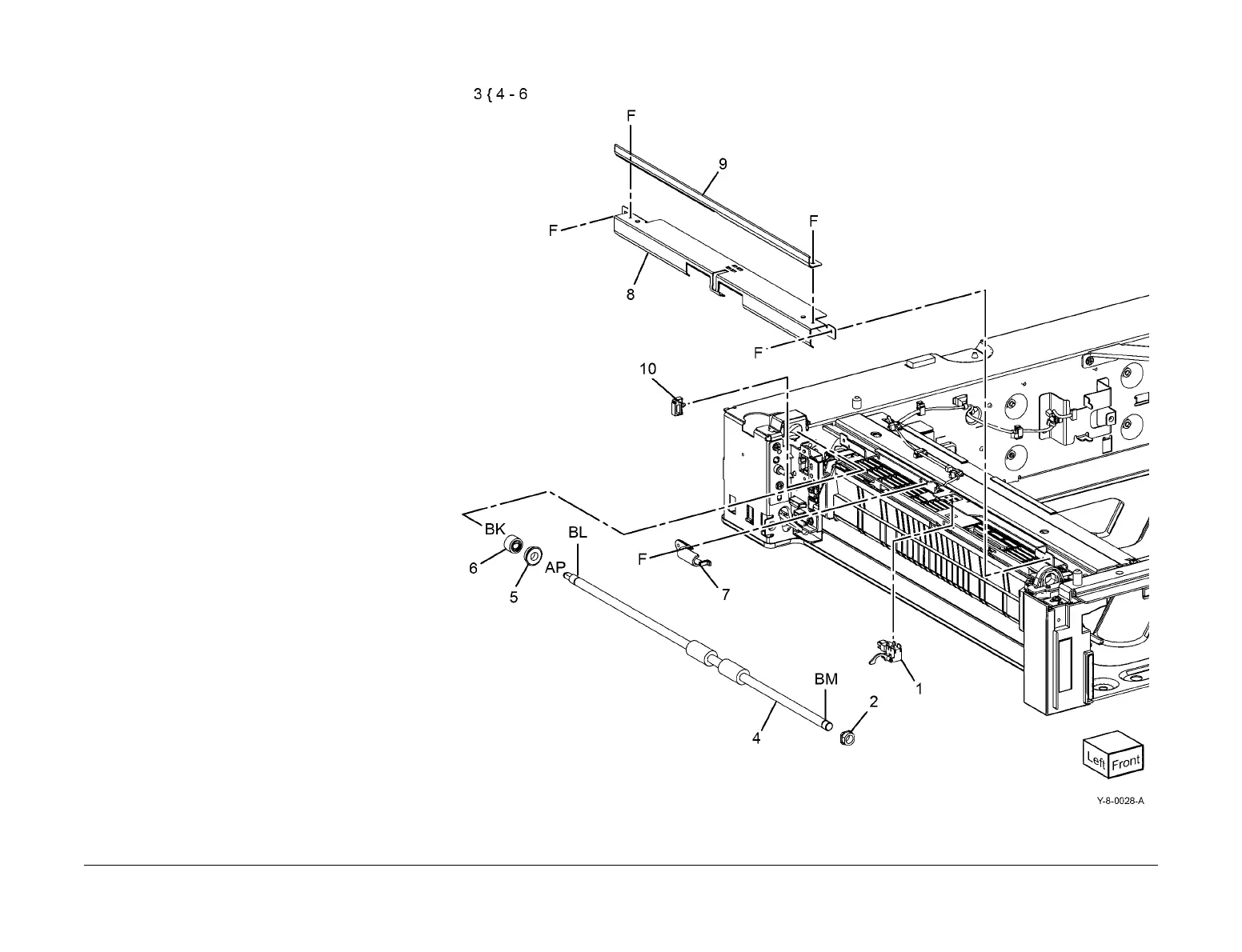

PL 70.26 STM (2 of 4)
Item Part Description
1 130K64121 Tray 2 feed out sensor (Q72-103)
2 413W11860 Bearing
3 059K86600 Takeaway roll assembly
4 – Roller assembly (P/O PL 70.26
Item 3)
5 – Bearing (P/O PL 70.26 Item 3)
6 – Gear 16T (P/O PL 70.26 Item 3)
7 – LH harness guide (Not Spared)
8 – Takeaway chute (Not Spared)
9 – Exit chute (Not Spared)
10 920W01209 Locking clamp
