Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.30
Launch Issue
Repairs and Adjustments
REP 13.30 Booklet PWB
Parts List on PL 13.70
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet PWB cover, REP 13.35.
2. Remove the booklet PWB, Figure 1:
a. Disconnect all connectors from the booklet PWB.
b. Remove four screws (1).
c. Remove the booklet PWB (2).

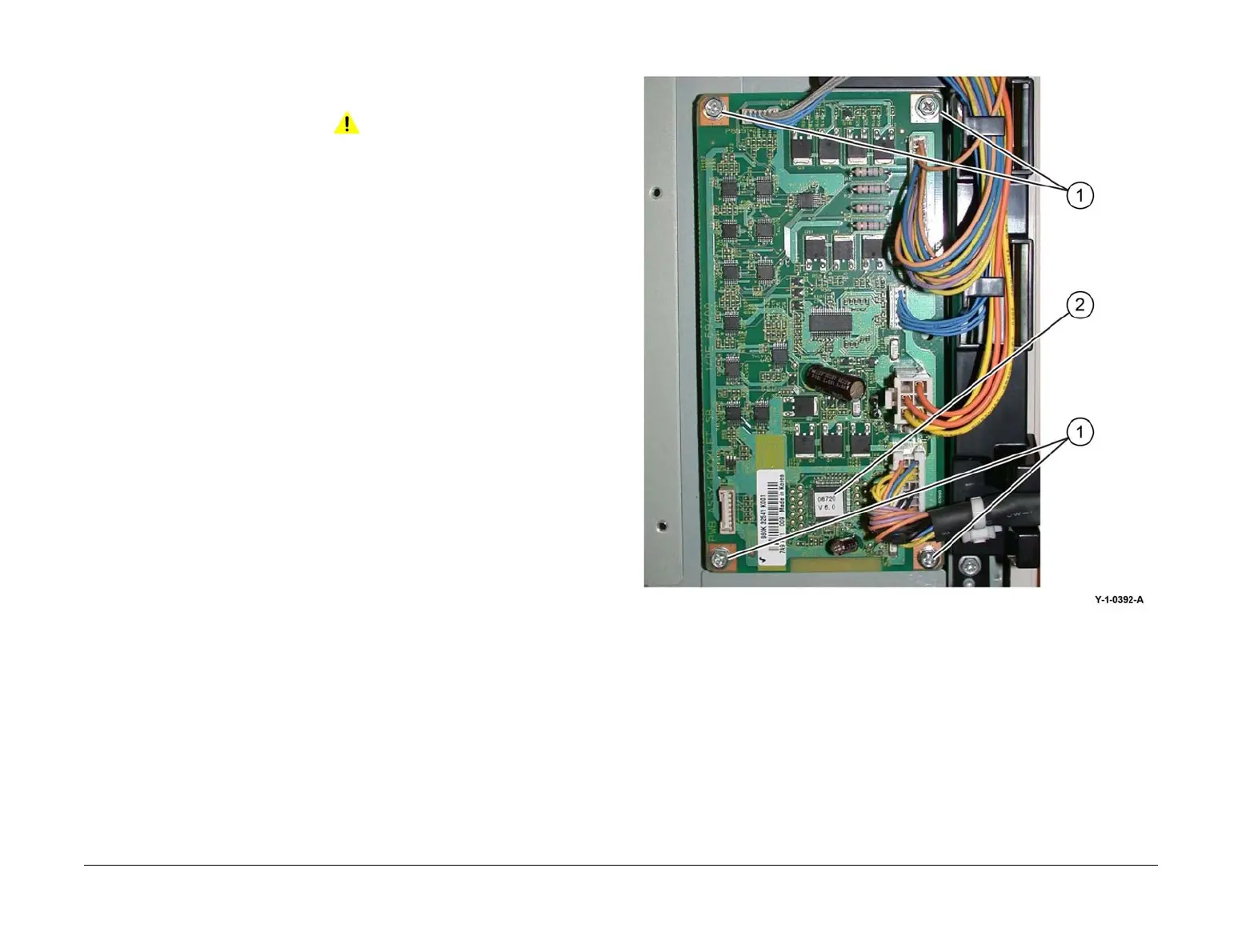

Figure 1 Booklet PWB removal
Replacement
The replacement is the reverse of the removal procedure.
