April 2017
5-74
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 60.20
Launch Issue
Parts Lists

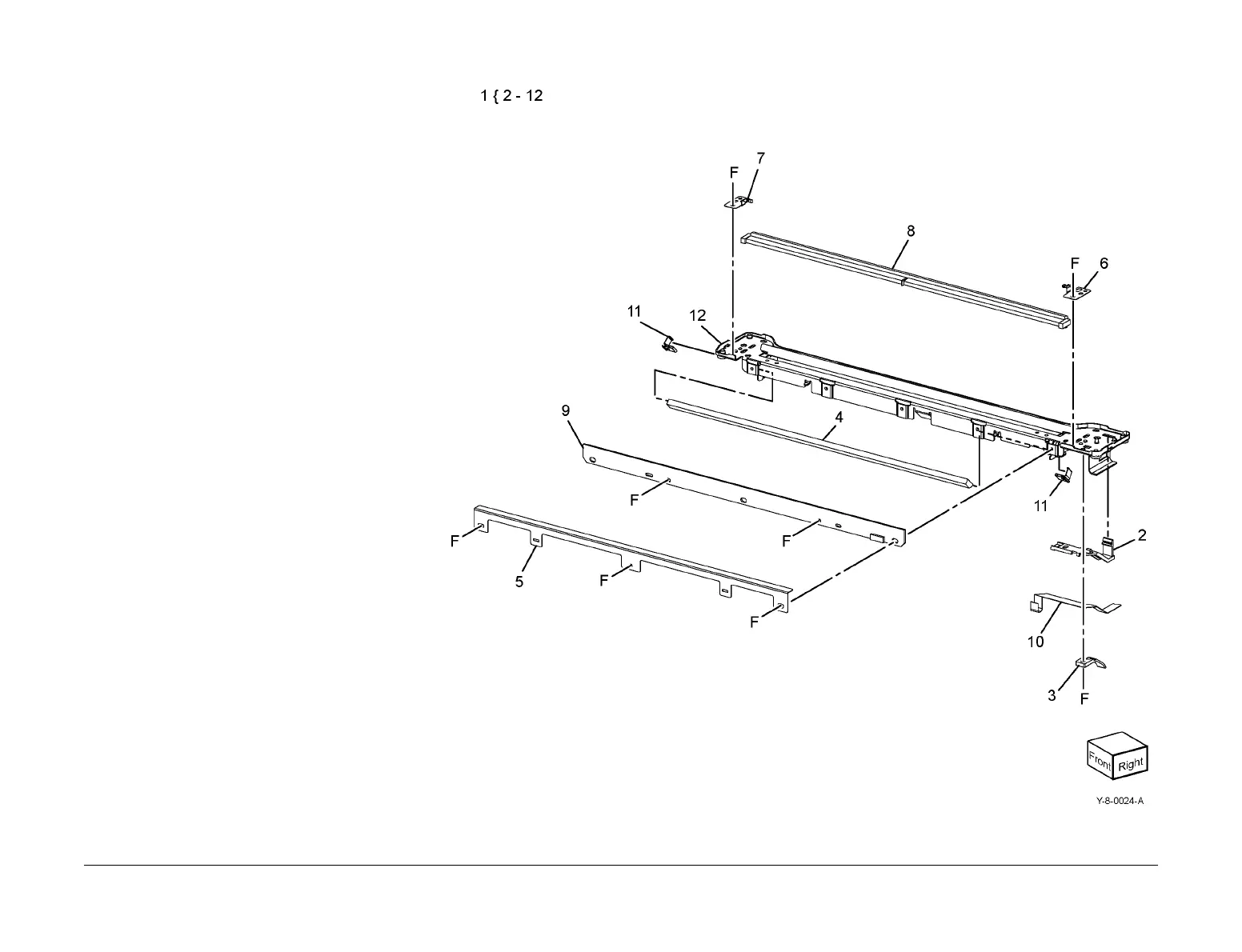

PL 60.20 Full Rate Carriage
Item Part Description
1 – Full rate carriage assembly (REF:
PL 60.15 Item 1)
2 – Cable guide A (P/O PL 60.20 Item
1)
3 – Cable guide FR (P/O PL 60.20 Item
1)
4 – Mirror 1 (P/O PL 60.20 Item 1)
5 – LED bracket (P/O PL 60.20 Item 1)
6 – Front spring guide (P/O PL 60.20
Item 1)
7 – Rear spring guide (P/O PL 60.20
Item 1)
8 – Light guide (P/O PL 60.20 Item 1)
(REP 60.6)
9 960K61571 Lamp assembly (P/O PL 60.20 Item
1) (REP 60.4)
10 952K20520 FFC LED cable assembly (P/O PL
60.20 Item 1) (REP 60.5)
11 – Mirror SL clip (P/O PL 60.20 Item 1)
12 – Full rate carriage (P/O PL 60.20
Item 1)
