Xerox VersaLink B7030 Service Manual

April 2017
4-213
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.36, REP 80.37
Repairs and Adjustments
Launch Issue

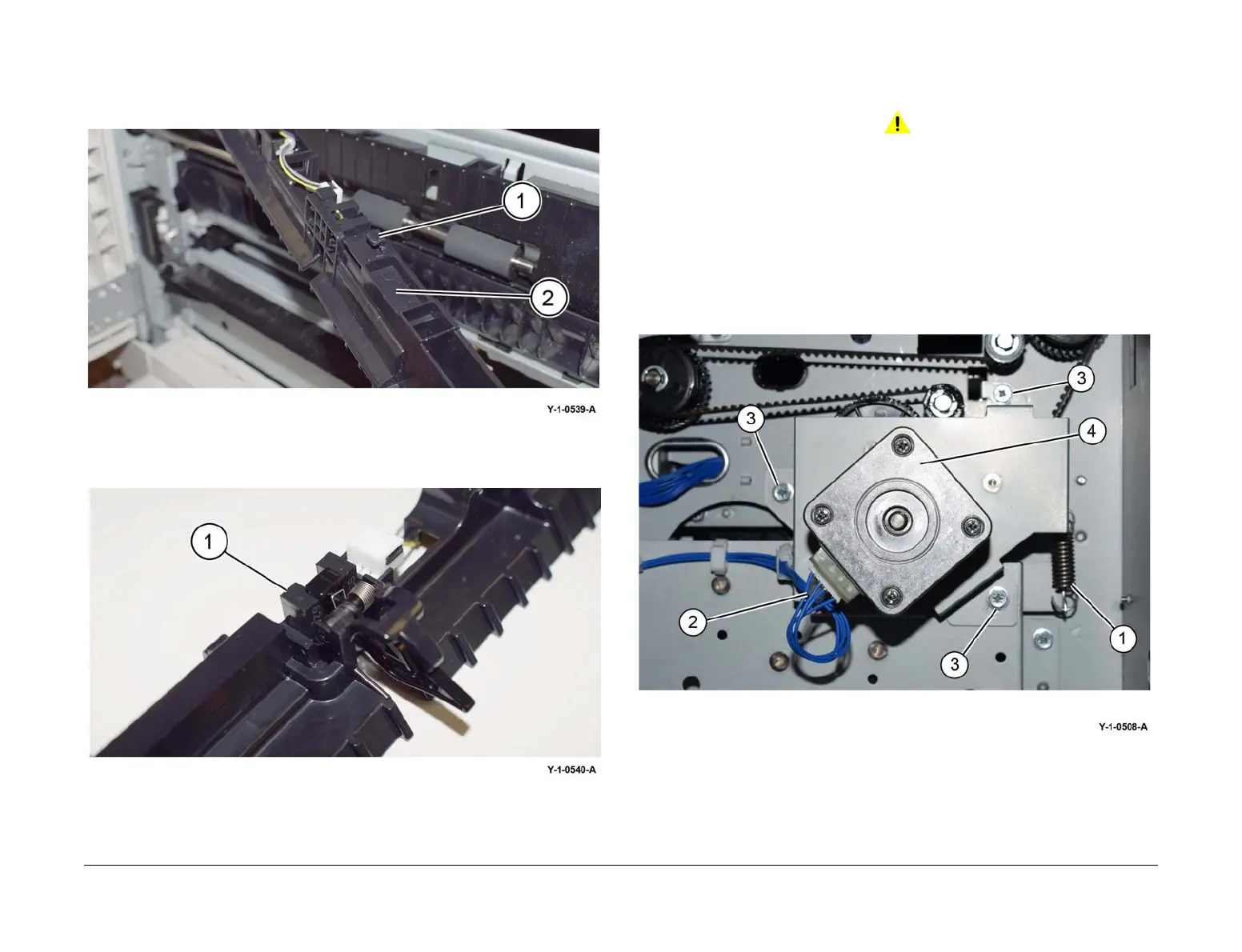

3. Remove the takeaway chute, Figure 2:
a. Move the takeaway chute to the rear to release the hook (1).
b. Disconnect the connector at the rear of the takeaway chute.
c. Remove the takeaway chute (2).
Figure 2 Takeaway chute removal
4. Remove the tray 2 feed out sensor (1), Figure 3.
Figure 3 Sensor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.37 Takeaway Motor 2 Assembly (TTM)
Parts List on PL 70.85
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the TTM rear cover, PL 70.95 Item 8.
2. Remove the takeaway motor 2 assembly, Figure 1:
a. Unhook the spring (1).
b. Disconnect the PJ and release the harness (2).
c. Remove three screws (3).
d. Remove the takeaway motor 2 assembly (4).
Figure 1 Motor assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the drive belt is correctly installed, refer to REP 80.28.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
