Xerox VersaLink B7030 Service Manual

April 2017
5-4
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 1.10
Launch Issue
Parts Lists

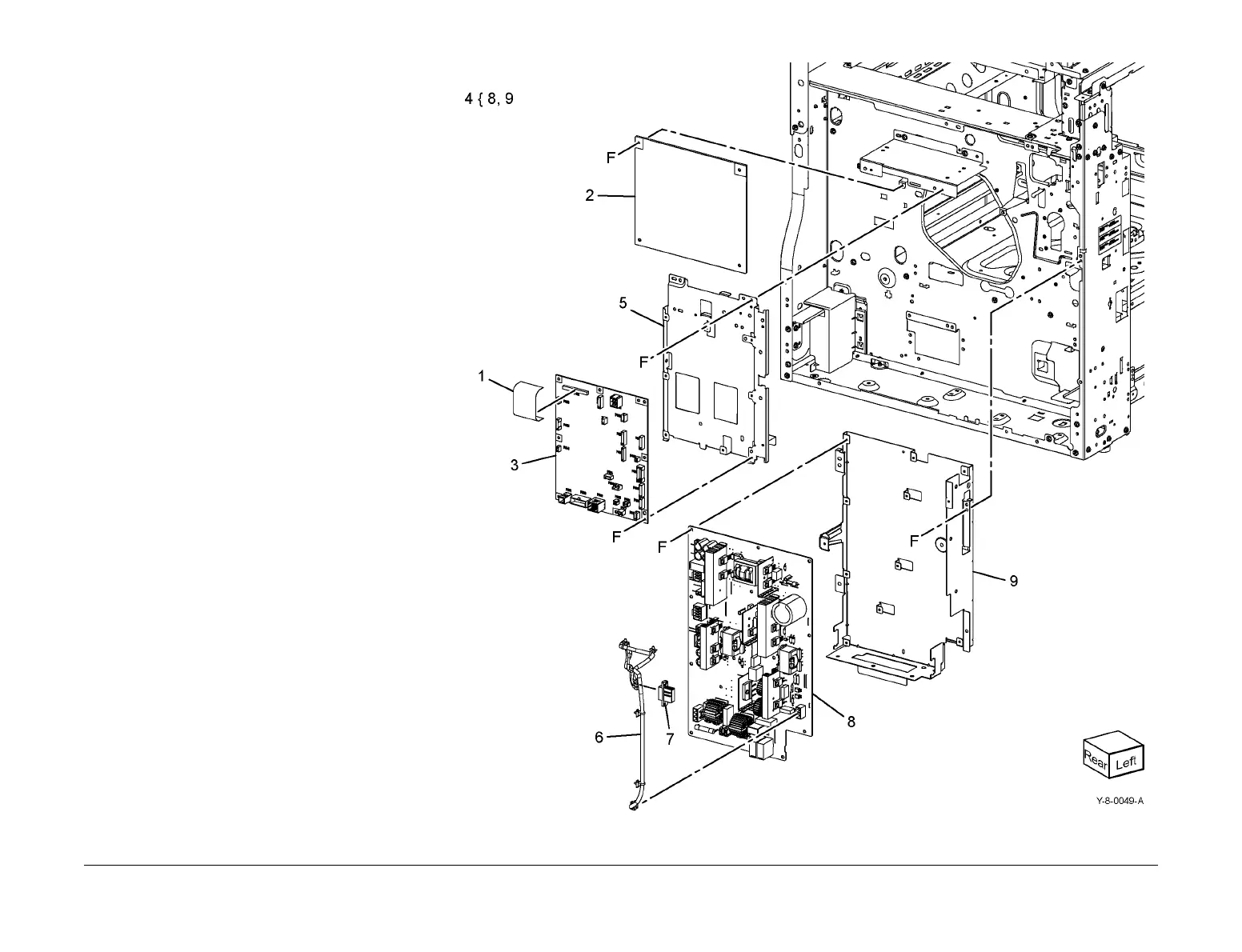

PL 1.10 Electrical Lower Rear
Item Part Description
1 117E39570 Flat cable
2 105E22140 HVPS (REP 1.1)
3 960K82730 Drive PWB (REP 1.2)
4 105K33230 LVPS assembly 110V (REP 1.4)
– 105K33240 LVPS assembly 220V (REP 1.4)
5 – Drive PWB chassis (Not Spared)
6 – Fuser unit MM harness assembly
(Not Spared)
7 – S3 connector panel (Not Spared)
8 – LVPS (P/O PL 1.10 Item 4) (REP
1.3)
9 – LVPS chassis (P/O PL 1.10 Item 4)
