Xerox VersaLink B7030 Service Manual

April 2017
5-12
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.20
Launch Issue
Parts Lists

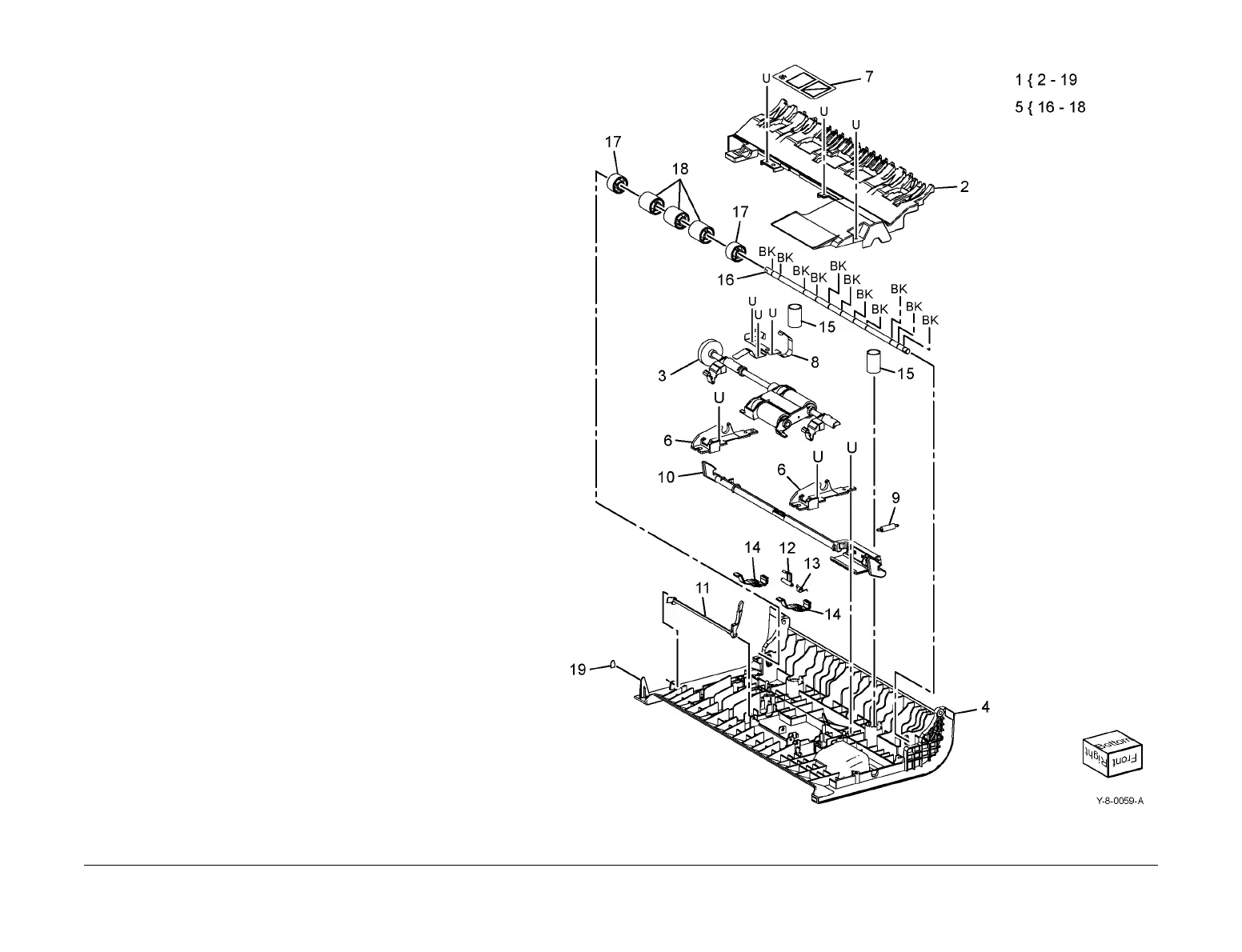

PL 5.20 Upper Feeder
Item Part Description
1 – Upper feeder assembly (Not
Spared)
2 – DADF feeder assembly (P/O PL
5.20 Item 1)
3 – Feed roll nudger roll assembly
(REF: PL 5.25)
4 – Upper feeder cover (P/O PL 5.20
Item 1)
5 – Pinch roller takeaway (P/O PL 5.20
Item 1)
6 – Bracket (P/O PL 5.20 Item 1)
7 – Jam label (P/O PL 5.20 Item 1)
8 – Ground plate (P/O PL 5.20 Item 1)
9 – Exit spring (P/O PL 5.20 Item 1)
10 011K04261 Handle lever
11 120E34245 Actuator (document sensor)
12 – Actuator stopper (P/O PL 5.20 Item
1)
13 – Spring (P/O PL 5.20 Item 1)
14 – Link set (P/O PL 5.20 Item 1)
15 – TA spring (P/O PL 5.20 Item 1)
16 – Shaft (P/O PL 5.20 Item 5)
17 – Nip roll (P/O PL 5.20 Item 5)
18 – Nip roll (P/O PL 5.20 Item 5)
19 – Interlock seal assembly (P/O PL
5.20 Item 1)
