Xerox VersaLink B7030 Service Manual

April 2017
4-177
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.1
Repairs and Adjustments
Launch Issue
REP 80.1 Tray 1 Feeder Assembly
Parts List on PL 80.05
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Pull out tray 1.
2. Open the LH transport assembly.
3. Remove the bypass tray, REP 70.2.

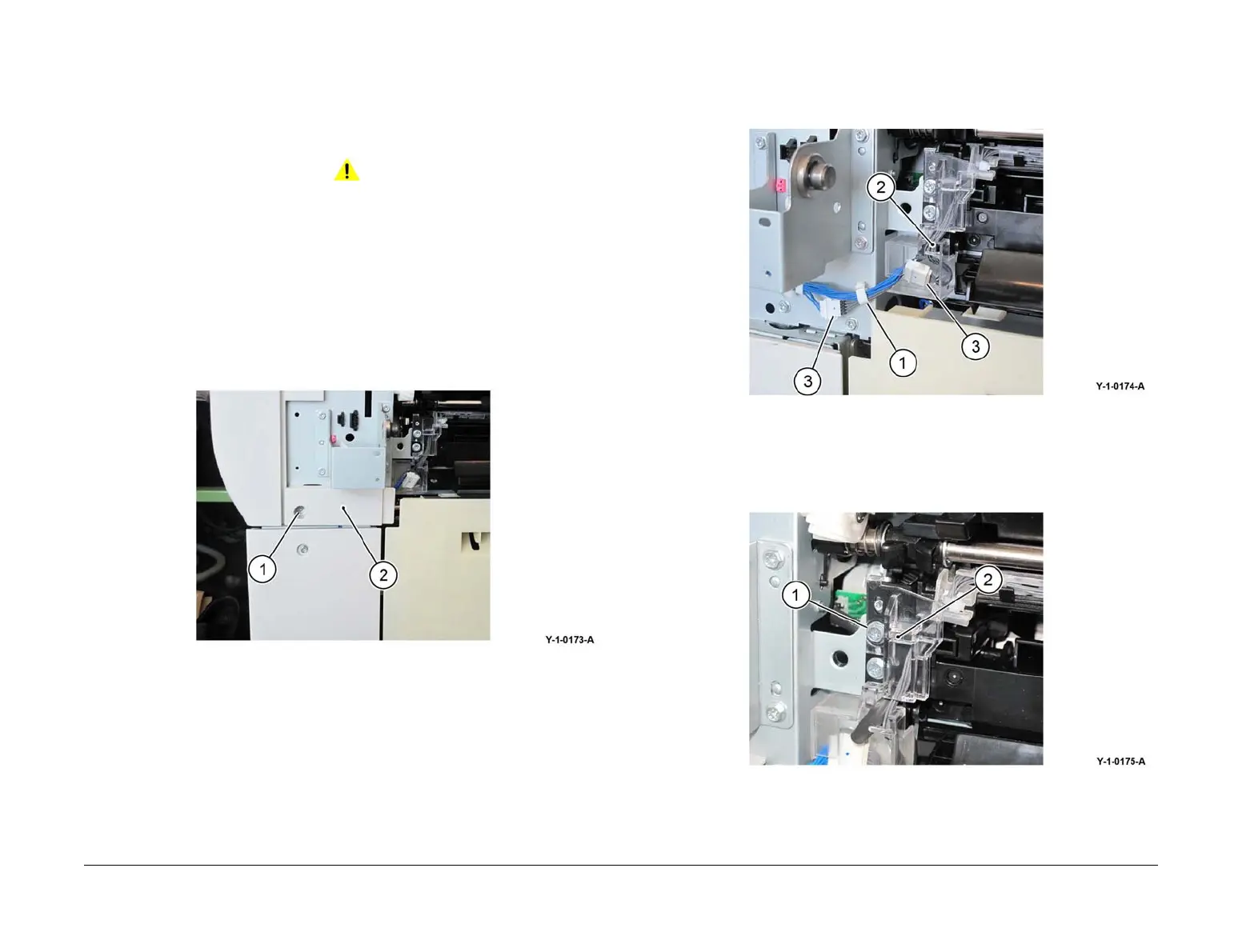

4. Remove the bypass tray R cover, Figure 1:
a. Remove the screw (1).
b. Remove the bypass tray R cover (2).
Figure 1 Bypass tray R cover removal
5. Disconnect the connectors, Figure 2:
a. Release the harness from the retainer (1).
b. Release the harness from the harness holder (2).
c. Disconnect two connector (3).
Figure 2 Connectors
6. Remove the harness holder, Figure 3:
a. Remove the screw (1).
b. Remove the harness holder (2).
Figure 3 Harness holder removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
