Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.05
Parts Lists
Launch Issue

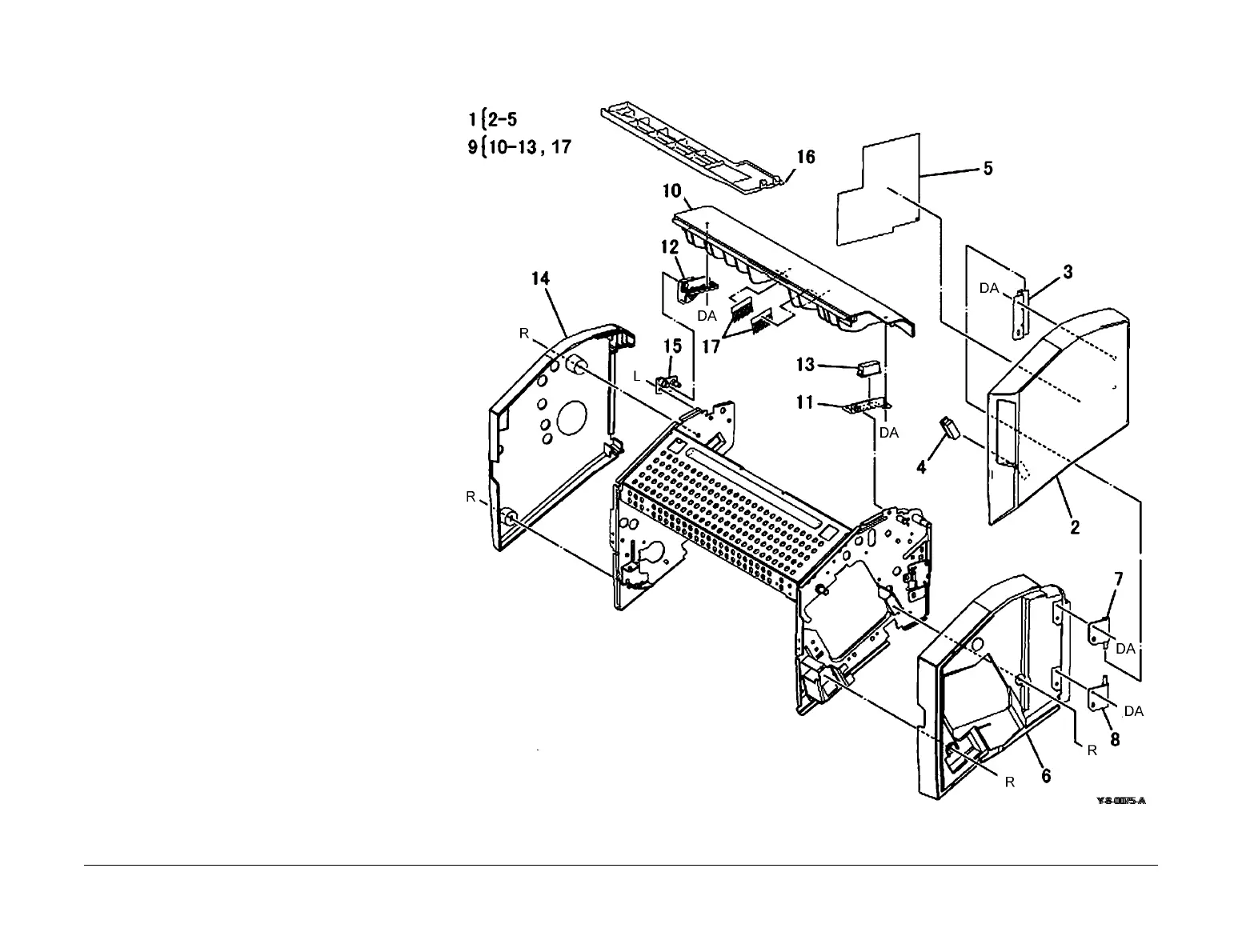

PL 12.05 Integrated Office Finisher (1
of 2)
Item Part Description
1 948K05200 Front cover assembly
2 – Front cover (P/O PL 12.05 Item 1)
3 – Bracket (P/O PL 12.05 Item 1)
4 – Magnet (P/O PL 12.05 Item 1)
5 – Label (P/O PL 12.05 Item 1)
6 – Front inner cover (Not Spared)
7 – Hinge (Not Spared)
8 – Hinge (Not Spared)
9 948K05210 Top cover assembly
10 – Top cover (P/O PL 12.05 Item 9)
11 – Bracket (P/O PL 12.05 Item 9)
12 – Stopper (P/O PL 12.05 Item 9)
13 – Magnet (P/O PL 12.05 Item 9)
14 – Rear cover (Not Spared)
15 – Hinge (Not Spared)
16 – IIT cover (Not Spared)
17 – Static eliminator (P/O PL 12.05
Item 9)
