Xerox VersaLink B7030 Service Manual

April 2017
5-28
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.22
Launch Issue
Parts Lists

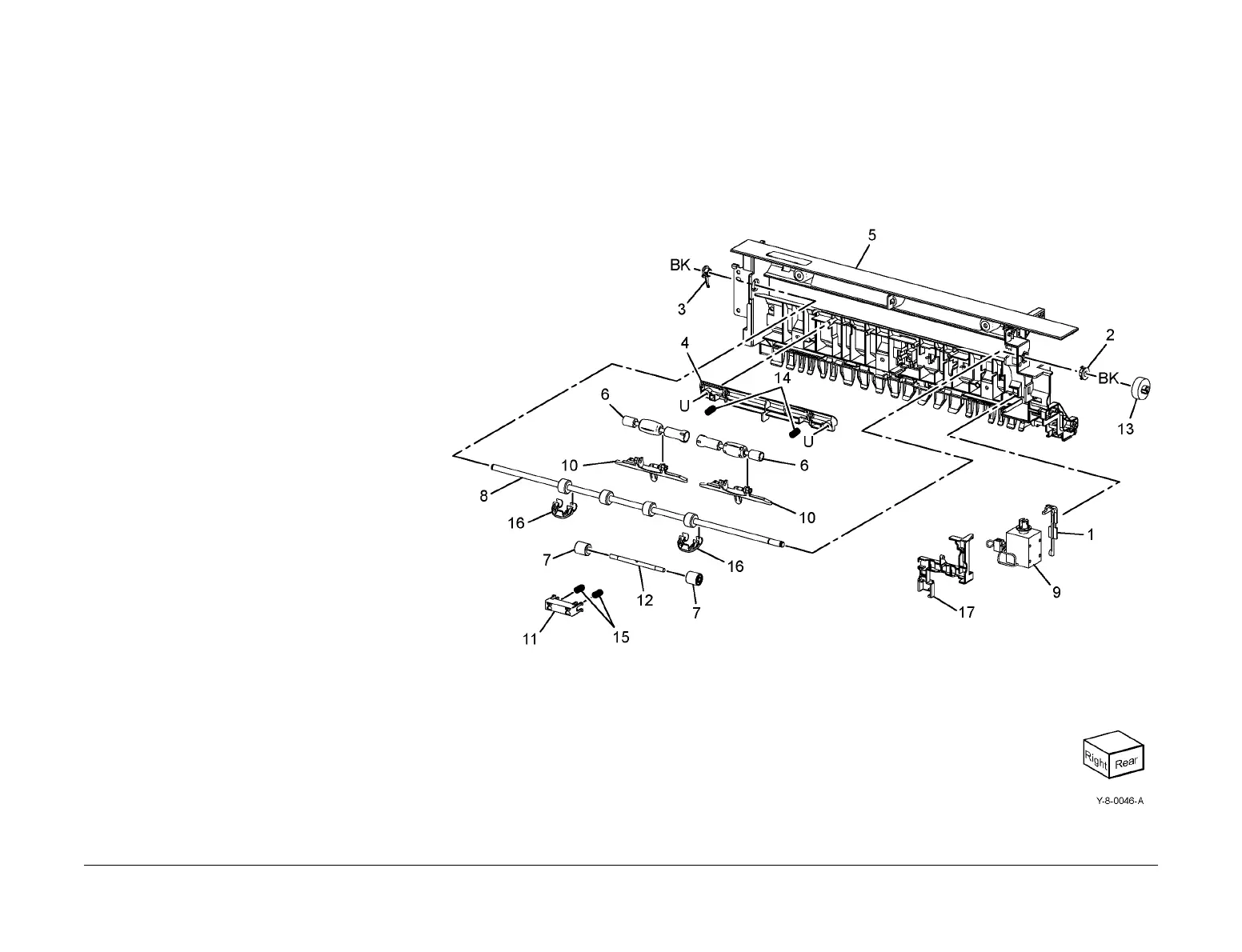

PL 10.22 Exit 2 (3 of 3)
Item Part Description
1 – Gate exit link (Not Spared)
2 – Bearing (Not Spared)
3 – Bearing (Not Spared)
4 – Exit chute (Not Spared)
5 – Low exit 2 chute (Not Spared)
6 059E10261 Pinch roller
7 – Inverter nip roll (Not Spared)
8 – Exit 2 roll (Not Spared) (REP 10.3)
9 921W11601 Exit gate solenoid (SOL77-004)
10 – Nip roll holder (Not Spared)
11 – Spring holder (Not Spared)
12 – Shaft (Not Spared)
13 – Gear 22T (Not Spared)
14 – Exit nip spring (Not Spared)
15 – Inverter nip spring (Not Spared)
16 – Exit guard (Not Spared)
17 – Exit 2 guide harness (Not Spared)
