Xerox VersaLink B7030 Service Manual

April 2017
4-202
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.24
Launch Issue
Repairs and Adjustments
REP 80.24 HCF Retard Lever Spring
Parts List on PL 80.62
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HCF feeder, REP 80.21.
2. Place the feeder on a flat surface. Release the green lever to open the upper feeder
assembly.
3. Remove the retard lever spring, Figure 1:
a. Remove the lower chute (1).
b. Remove the plastic cover (2).
c. Remove the retard roll (3).
d. Remove the E-rings on the lever and spring.
e. Remove the lever (4).
NOTE: Note how the spring extension fits into the lever.
f. Remove the retard lever spring (5).

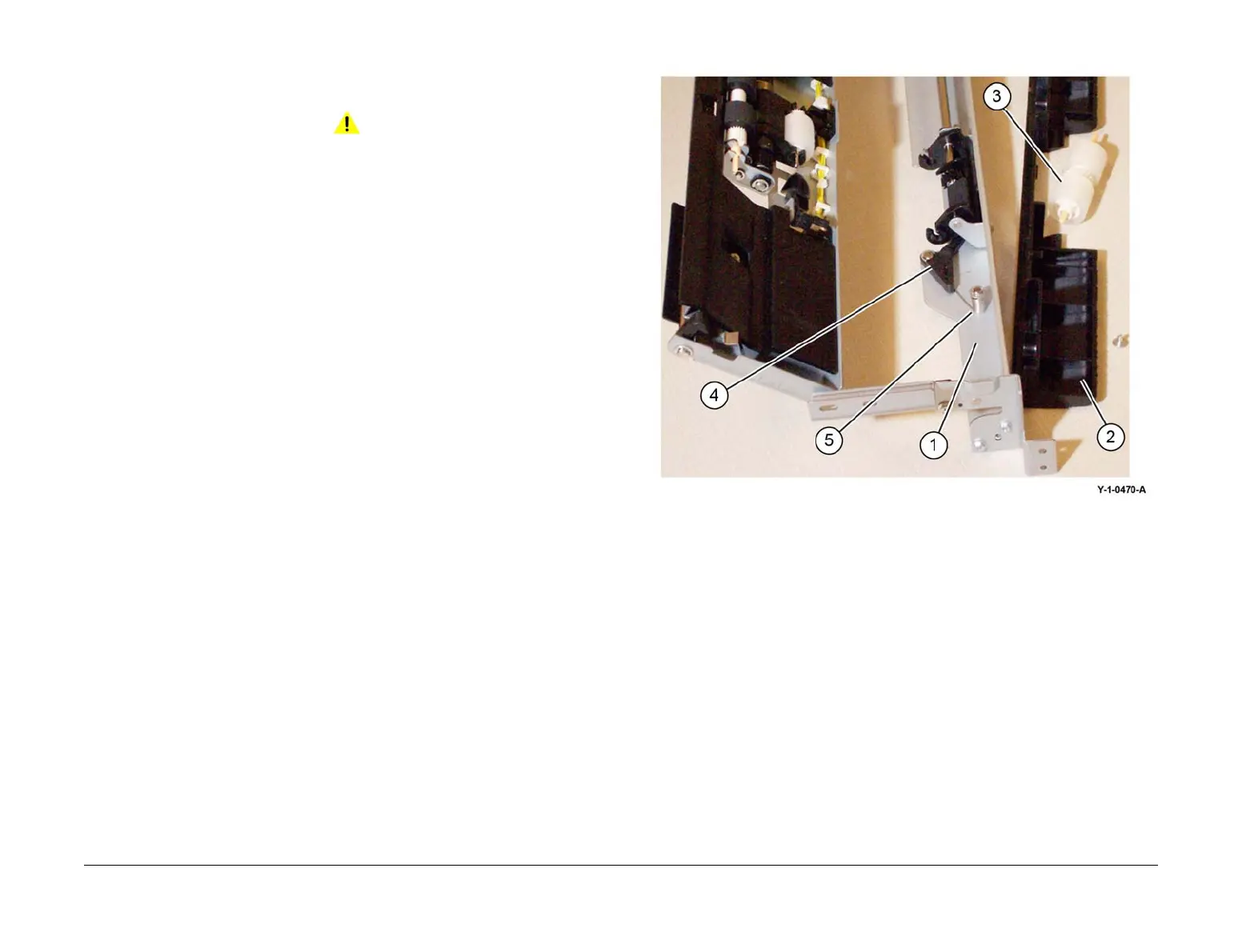

Figure 1 Retard lever spring
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the plastic pads on the lower chute fit in the track before pushing it in.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
