Xerox VersaLink B7030 Service Manual

April 2017
5-48
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.26
Launch Issue
Parts Lists

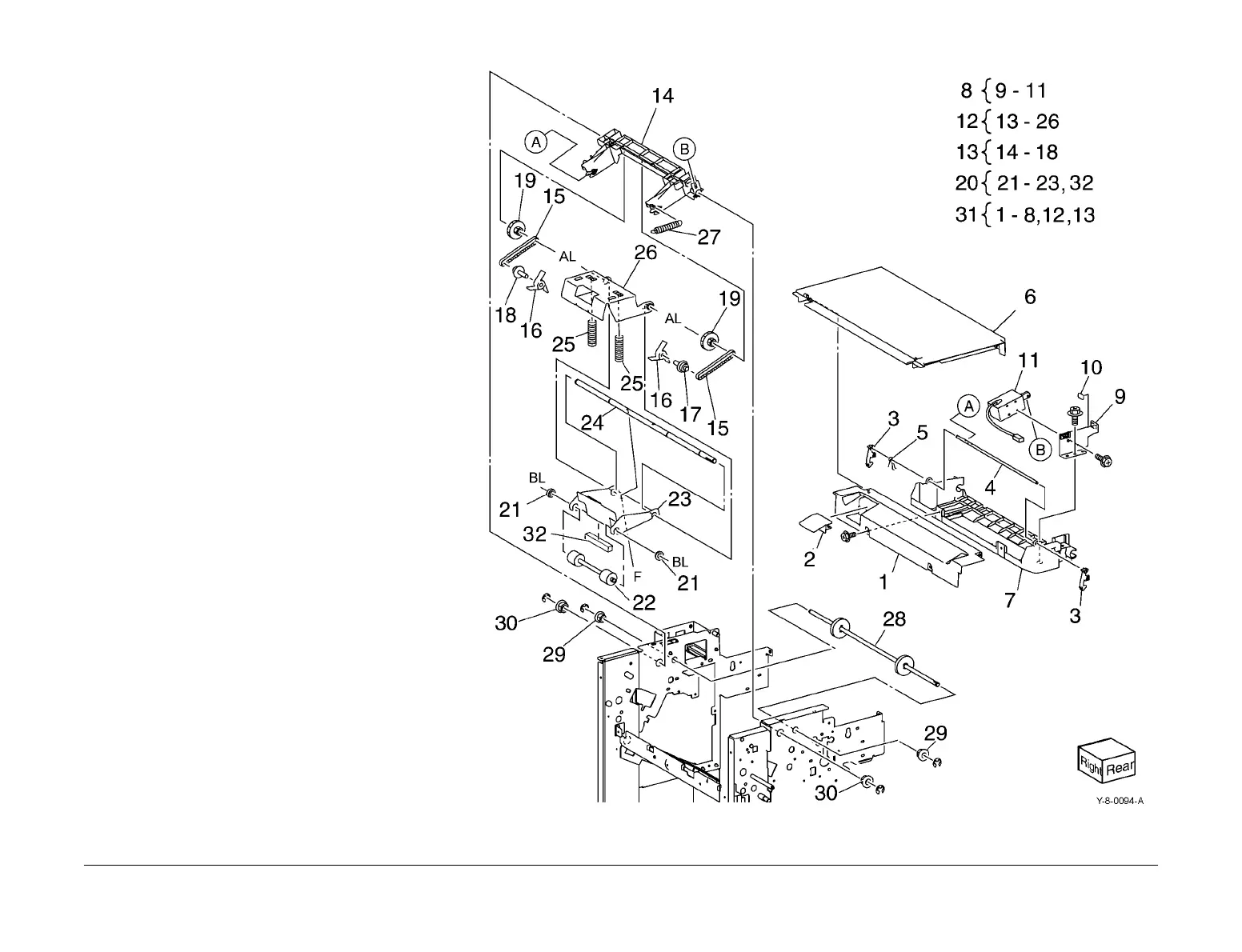

PL 13.26 Office Finisher LX Ejector (2
of 5)
Item Part Description
1 – Top right hand cover (P/O PL 13.26
Item 31)
2 – Top cover lever (P/O PL 13.26 Item
31)
3 – Top cover latch (P/O PL 13.26 Item
31)
4 – Shaft (P/O PL 13.26 Item 31)
5 – Spring (P/O PL 13.26 Item 31)
6 – Eject cover (P/O PL 13.26 Item 31)
(REP 13.9)
7 – Eject chute (P/O PL 13.26 Item 31)
8 121K41632 Sub paddle solenoid assembly
(REP 13.14)
9 – Bracket (P/O PL 13.26 Item 8)
10 – Damper (P/O PL 13.26 Item 8)
11 – Sub paddle solenoid (SOL12-013)
(P/O PL 13.26 Item 8)
12 – Eject roller assembly (P/O PL 13.26
Item 31)
13 031K94470 Paddle arm assembly
14 – Sub paddle arm (P/O PL 13.26 Item
13)
15 – Belt (P/O PL 13.26 Item 14)
16 – Sub paddle (P/O PL 13.26 Item 13)
17 – Pulley (P/O PL 13.26 Item 13)
18 – Pulley (P/O PL 13.26 Item 13)
19 – Gear/Pulley (31T/20T) (Not
Spared)
20 059K55715 Eject nip roll assembly
21 – Bearing (P/O PL 13.26 Item 20)
22 – Eject nip roll (P/O PL 13.26 Item
20)
23 – Bracket (P/O PL 13.26 Item 20)
24 – Shaft (P/O PL 13.26 Item 12)
25 – Spring (P/O PL 13.26 Item 12)
26 – Bracket (P/O PL 13.26 Item 12)
27 – Spring (Not Spared)
28 006K86690 Eject drive shaft
29 – Bearing (Not Spared)
30 – Bearing (Not Spared)
31 – Eject chute assembly (Not Spared)
32 – Static eliminator (P/O PL 13.26
Item 20)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
