April 2017
5-93
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.40
Parts Lists
Launch Issue

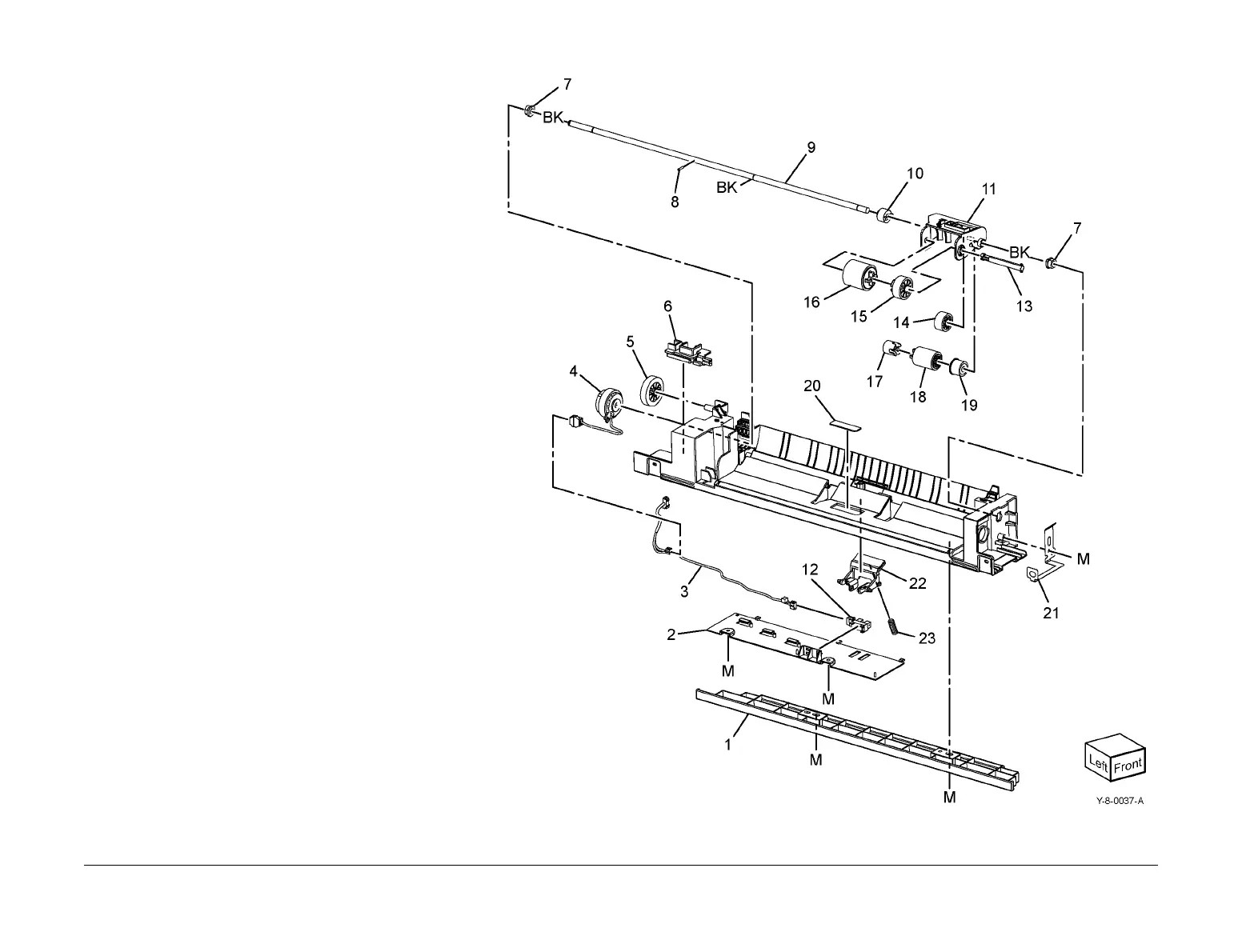

PL 70.40 Bypass Tray Lower Feeder
Item Part Description
1 – Bypass tray low chute (Not Spared)
2 – Lower cover (Not Spared)
3 – Bypass tray harness assembly (Not
Spared)
4 121K56480 Bypass tray feed clutch (CL75-001)
5 – Drive gear 22T (Not Spared)
6 – Connector cover (Not Spared)
7 – Bearing (Not Spared)
8 – Pin (Not Spared)
9 – Shaft (Not Spared)
10 – Friction clutch assembly (Not
Spared)
11 – Nudger holder (Not Spared)
12 930W00123 Bypass tray no paper sensor (Q75-
100)
13 – Shaft (Not Spared)
14 – Idler gear 37T (Not Spared)
15 – Nudger gear 46T (Not Spared)
16 022K78481 Bypass tray nudger roll (See
NOTE) (REP 80.16)
17 – One way clutch (Not Spared)
18 022K77450 Feed roll (REP 80.16)
19 – Feed gear 30T (Not Spared)
20 – Pad (Not Spared)
21 – Earth plate (Not Spared)
22 019K12820 Retard pad (See NOTE) (REP
80.17)
23 – Spring (Not Spared)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.
