Xerox VersaLink B7030 Service Manual

April 2017
4-186
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.9, REP 80.10
Launch Issue
Repairs and Adjustments

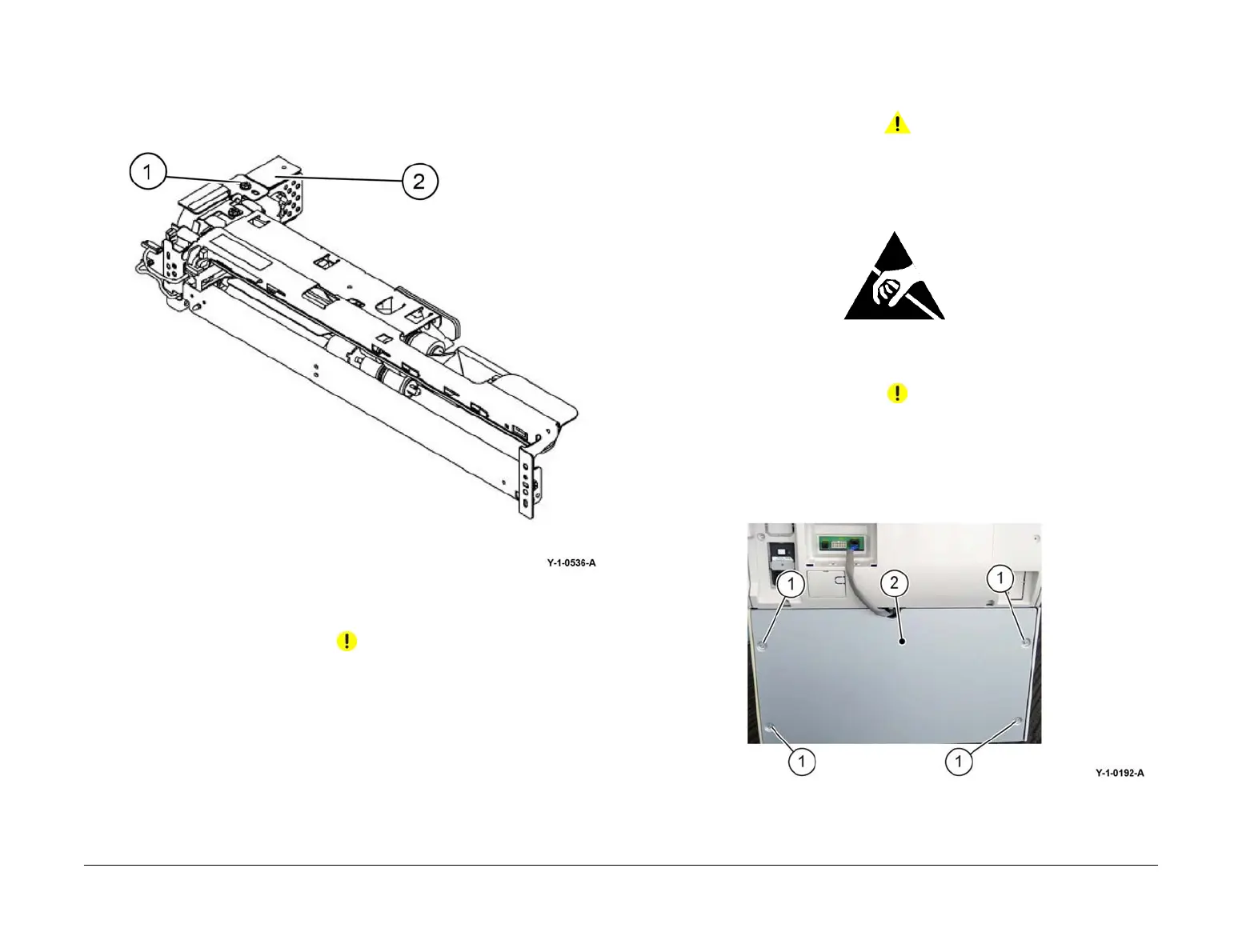

6. Remove the FDR 2T cover from the tray 4 feeder assembly, Figure 3.
a. Remove the screw (1).
b. Remove the FDR 2T cover (2). Retain the cover for installation onto the new tray 4
feeder assembly.
Figure 3 FDR 2T cover removal
Replacement
CAUTION
Ensure that the FDR 2T cover is installed onto the new tray 4 feeder assembly. Refer to Figure
3.
1. The replacement is the reverse of the removal procedure.
2. If new tray 4 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-803.
REP 80.10 3TM PWB
Parts List on PL 70.23
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. Remove the rear cover, Figure 1:
a. Remove four screws (1).
b. Remove the rear cover (2).
Figure 2 Rear cover removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
