Xerox VersaLink B7030 Service Manual

April 2017
4-93
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.28
Repairs and Adjustments
Launch Issue
REP 12.28 Stack Height Sensor
Parts List on PL 12.26
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the front inner cover, PL 12.05 Item 6.
3. Remove the rear cover, PL 12.05 Item 14.
4. Turn over the integrated office finisher.
5. Remove the bottom cover, PL 12.06 Item 1.

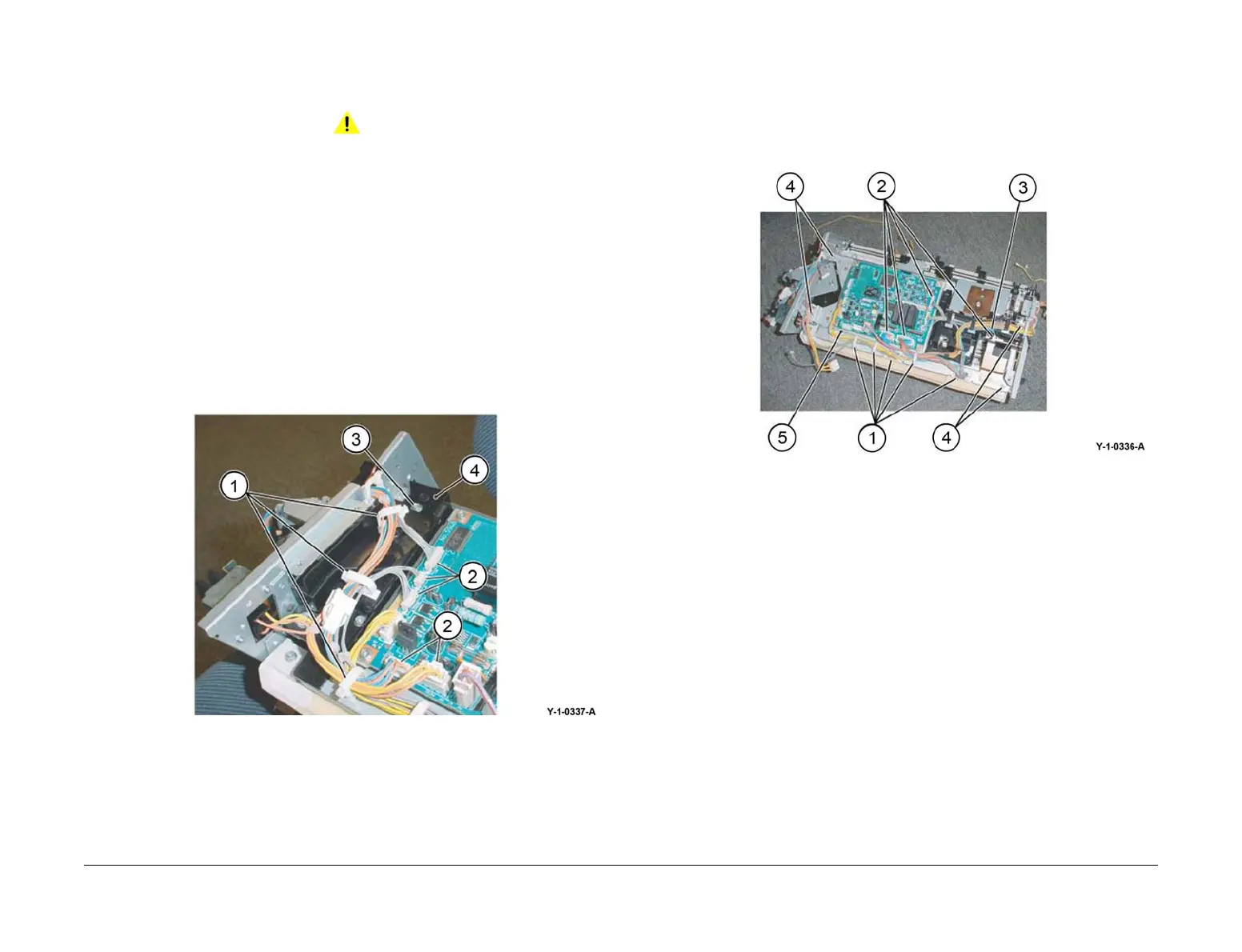

6. Remove the connector bracket, Figure 1:
a. Release the harness from the three clamps (1).
b. Disconnect the connectors (2).
c. Remove two screws (3).
d. Remove the connector bracket (4).
Figure 1 Connector bracket removal
7. Remove the bottom plate, Figure 2:
a. Release the harness from the 5 clamps (1).
b. Disconnect eight connectors (2).
c. Remove the harness from the retainers (3).
d. Remove four screws (4).
e. Remove the bottom plate (5).
Figure 2 Bottom plate removal

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
