Xerox VersaLink B7030 Service Manual

April 2017
5-101
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.67
Parts Lists
Launch Issue

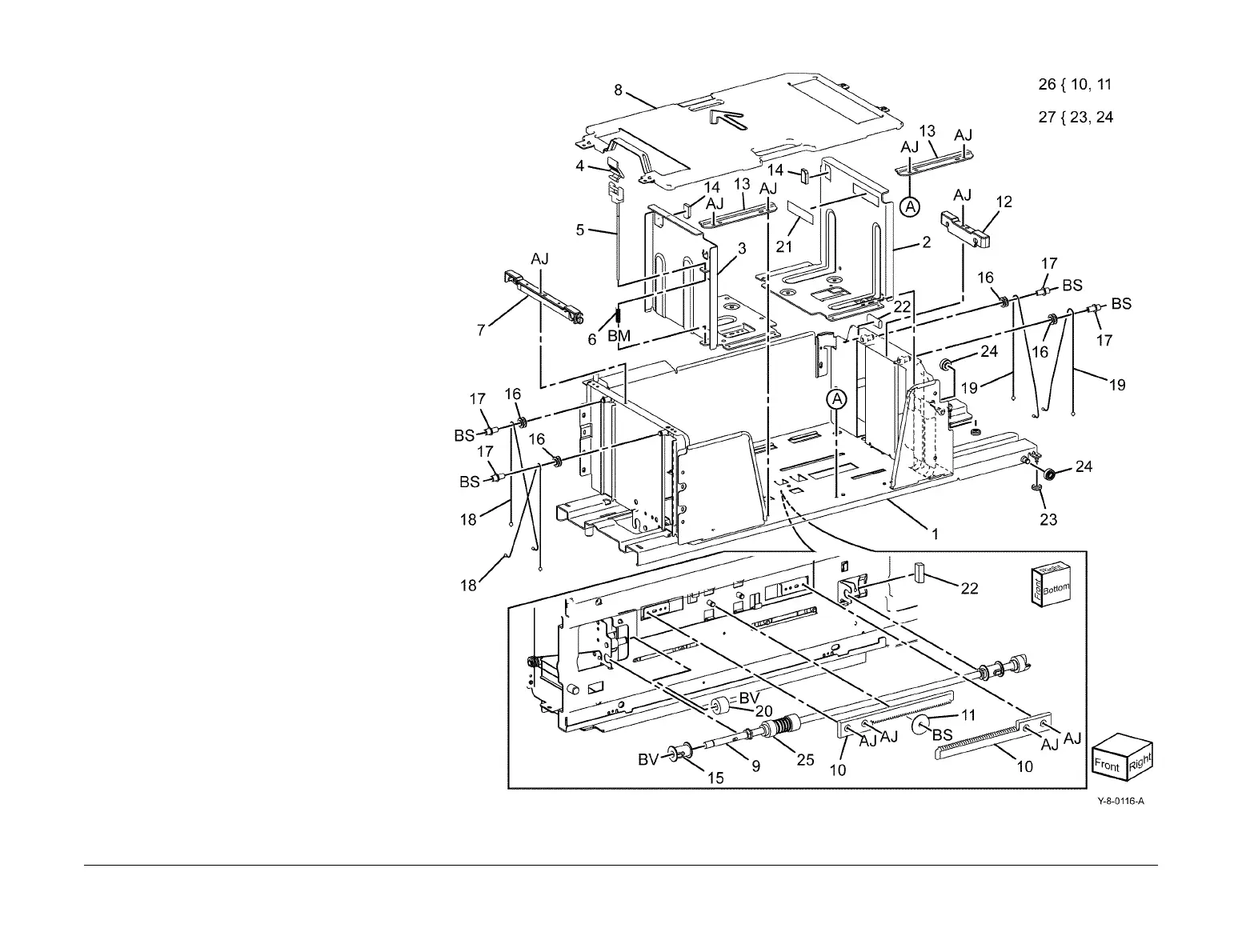

PL 70.67 TTM (3 of 3)
Item Part Description
1 – Tray 4 cassette assembly (Not
Spared)
2 – Side rear guide (Not Spared)
3 – Side front guide (Not Spared)
4 – Knob (Not Spared)
5 – Knob assembly (Not Spared)
6 – Spring (Not Spared)
7 – Guide - WF (Not Spared)
8 – Bottom plate (Not Spared)
9 006K35290 Lift shaft (REP 70.10)
10 – Rack gear (P/O PL 70.67 Item 26)
11 – Pinion (P/O PL 70.67 Item 26)
12 – Guide - W (Not Spared)
13 – Bracket (Not Spared)
14 819E04150 Pad (REP 70.10)
15 – Pulley (Not Spared)
16 – Pulley (Not Spared)
17 – Shaft - PL (Not Spared)
18 – Front lift cable (Not Spared)
19 – Rear lift cable (Not Spared)
20 – Size actuator (Not Spared)
21 – Label (Not Spared)
22 – Gasket (Not Spared)
23 – Lower roller (P/O PL 70.67 Item 27)
24 – Side roller (P/O PL 70.67 Item 27)
25 019K17181 Brake assembly
26 604K68260 Rack gear and pinion kit
27 604K68160 Roller kit

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
