Xerox VersaLink B7030 Service Manual

April 2017
5-56
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.55
Launch Issue
Parts Lists

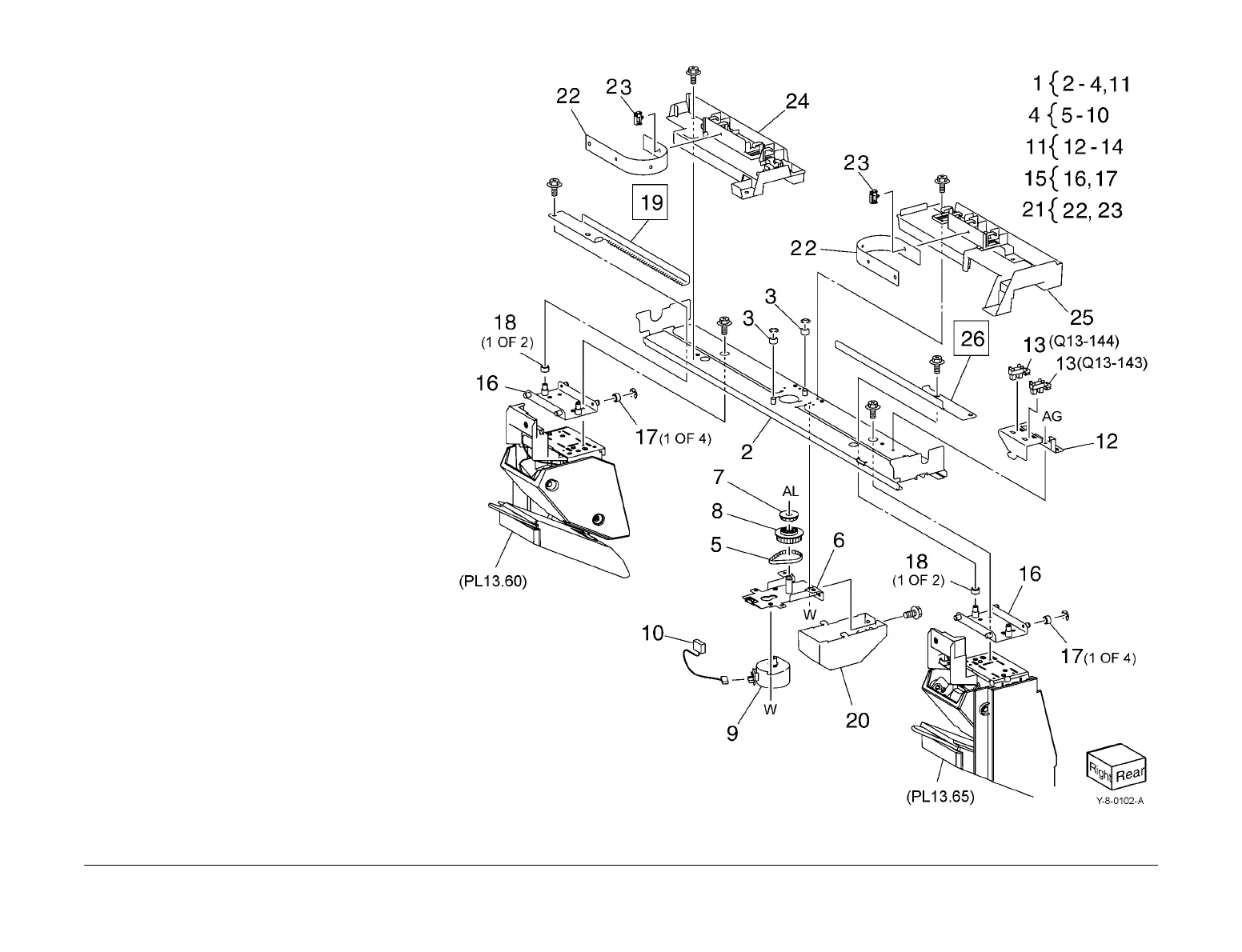

PL 13.55 Office Finisher LX Booklet
Stapler Assembly
Item Part Description
1 – Front carriage rail (Not Spared)
2 – Frame (P/O PL 13.55 Item 1)
3 – Core (P/O PL 13.55 Item 1)
4 127K57052 Booklet stapler move motor
assembly
5 – Belt (P/O PL 13.55 Item 4)
6 – Bracket (P/O PL 13.55 Item 4)
7 – Gear (12T) (P/O PL 13.55 Item 4)
8 – Pulley (50T) (P/O PL 13.55 Item 4)
9 – Booklet stapler move motor
(MOT13-028) (P/O PL 13.55 Item
4) (REP 13.38)
10 – Wire harness (P/O PL 13.55 Item 4)
11 – Sensor bracket assembly (P/O PL
13.55 Item 1)
12 – Sensor bracket (P/O PL 13.55 Item
11)
13 930W00111 Booklet stapler move position
sensor (Q13-143)/booklet stapler
move home sensor (Q13-144)
14 – Rear rack gear (P/O PL 13.55 Item
11)
15 – Carriage assembly (Not Spared)
16 – Carriage (P/O PL 13.55 Item 15)
17 – Core (P/O PL 13.55 Item 15)
18 – Core (Not Spared)
19 – Front rack gear (Not Spared)
20 – Motor cover (Not Spared)
21 – Harness guide assembly (Not
Spared)
22 – Harness strap (P/O PL 13.55 Item
21)
23 – Locking clamp (P/O PL 13.55 Item
21)
24 – Harness guide (front) (Not Spared)
25 – Harness guide (rear) (Not Spared)
26 – Rear rack guide (Not Spared)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
