April 2017
4-97
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.4, REP 13.5
Repairs and Adjustments
Launch Issue
REP 13.4 H-Transport Motor
Parts List on PL 13.08
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the H-transport assembly, REP 13.1.
2. Remove the H-transport rear cover, PL 13.06 Item 9.
3. Place the H-transport top down on a work surface.
4. Remove the H-transport motor, Figure 1:
a. Remove the screw, then the shield (1).
b. Disconnect the connector (2).
c. Loosen two screws to release the belt tension (3).
d. Remove two screws (3), then remove the H-transport motor.

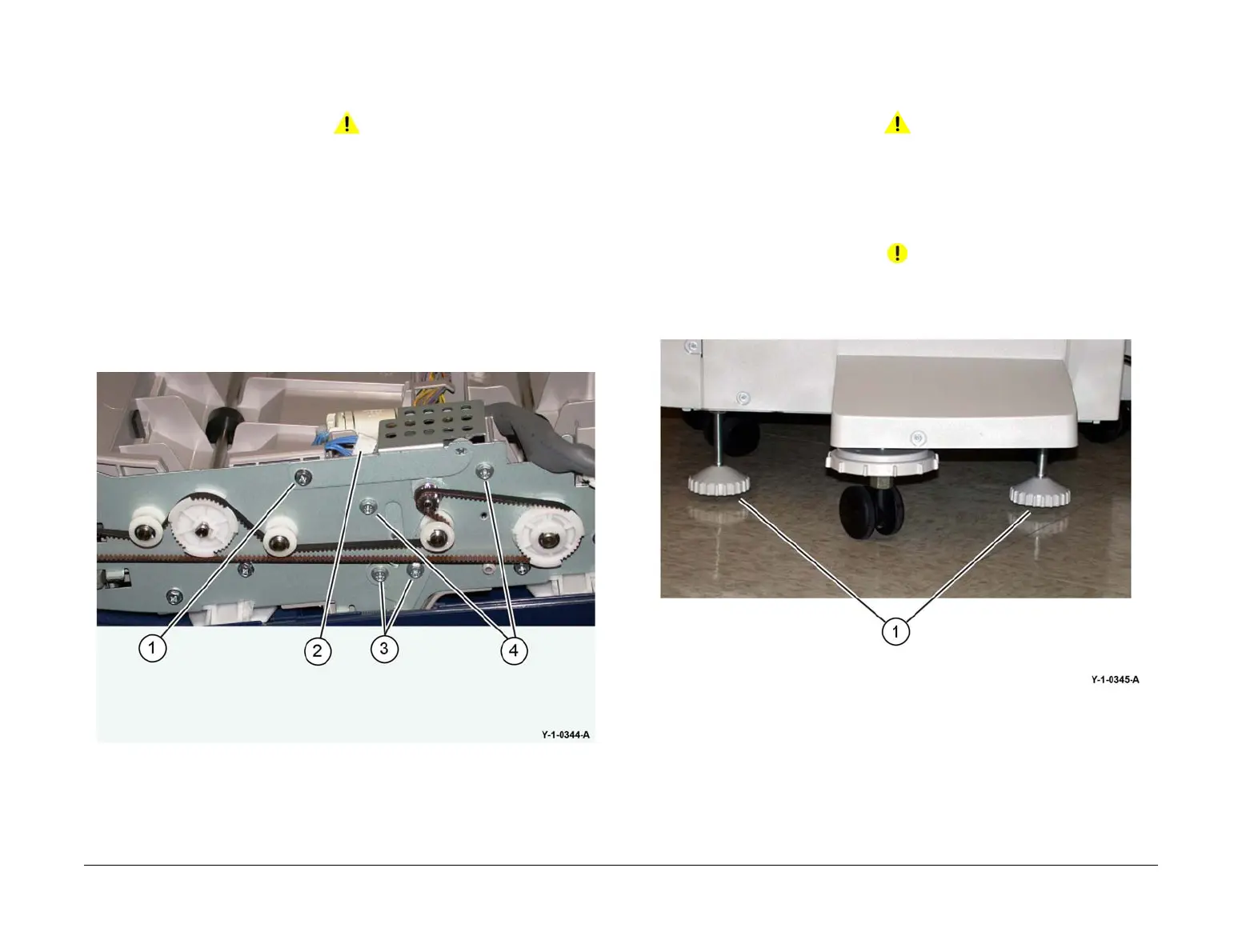

Figure 1 H-transport motor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.5 Finisher LX Undocking
Parts List on PL 13.05
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Disconnect the finisher power cord, the H-transport connector and the finisher connector
from the IOT.
CAUTION
Take care not to topple the finisher. The finisher is unstable when un-docked from the machine.
2. Raise the feet (1) to free the finisher, Figure 1.
Figure 1 Finisher feet
3. Open the finisher front door.
To Next Page
