Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.60
Launch Issue
Parts Lists

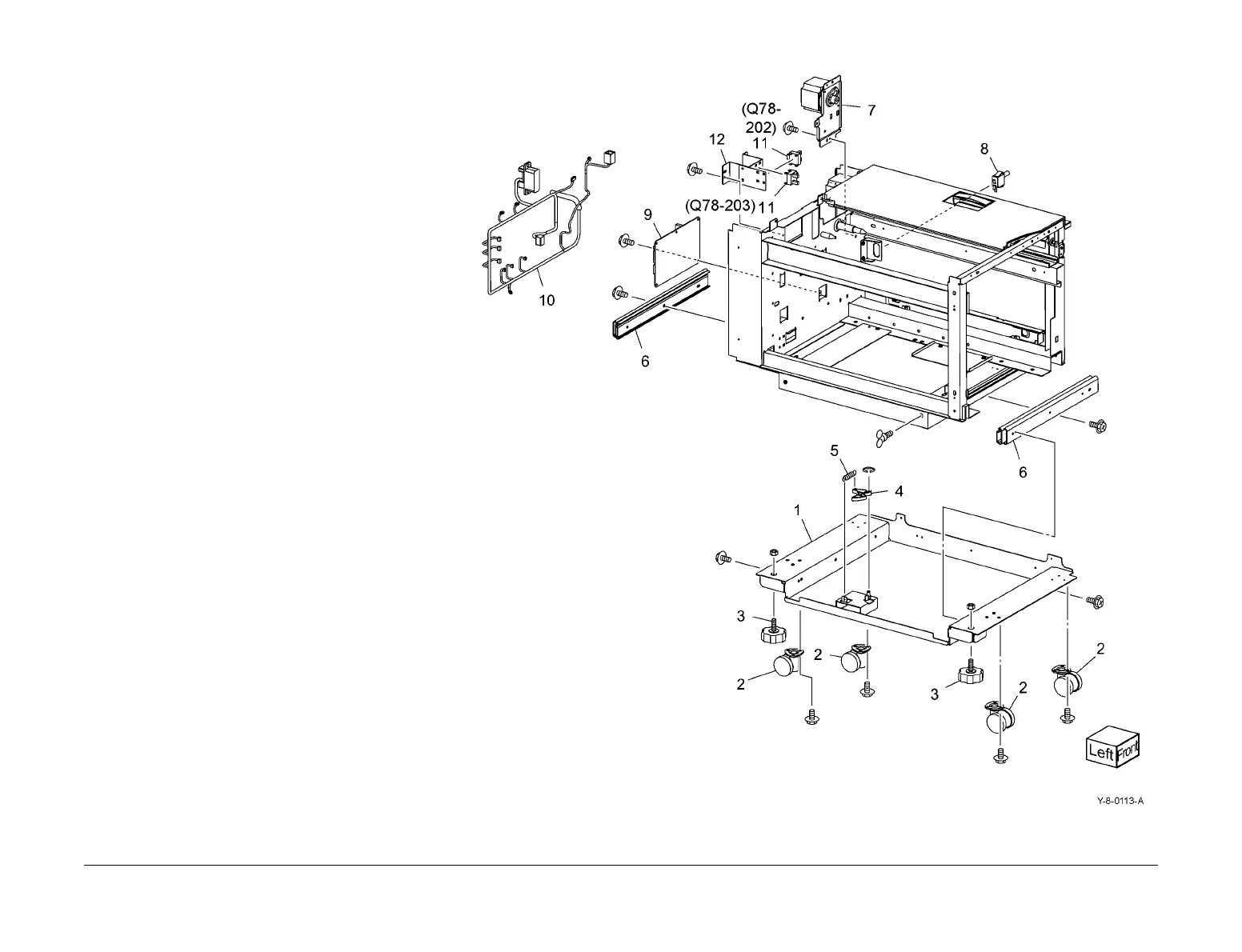

PL 70.60 HCF Electrical and Rails
Item Part Description
1 – Plate (Not Spared)
2 017E92820 Caster (REP 70.7)
3 – Foot (Not Spared)
4 – Latch lever (Not Spared)
5 – Spring (Not Spared)
6 801K15690 Rail
7 127K47152 Takeaway motor (MOT78-093)
8 – HCF side out switch (S78-301)
(Not Spared)
9 960K31492 HCF PWB (REP 70.8)
10 – Wire Harness (P/O PL 70.45 Item
16)
11 130K55590 HCF size sensor A (Q78-202)/HCF
size sensor B (Q78-203)
12 – Bracket (P/O PL 70.45 Item 5)
To Next Page
