April 2017
4-83
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.20, REP 12.21
Repairs and Adjustments
Launch Issue
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the eject belt is aligned with the marks on the pulleys, Figure 4.

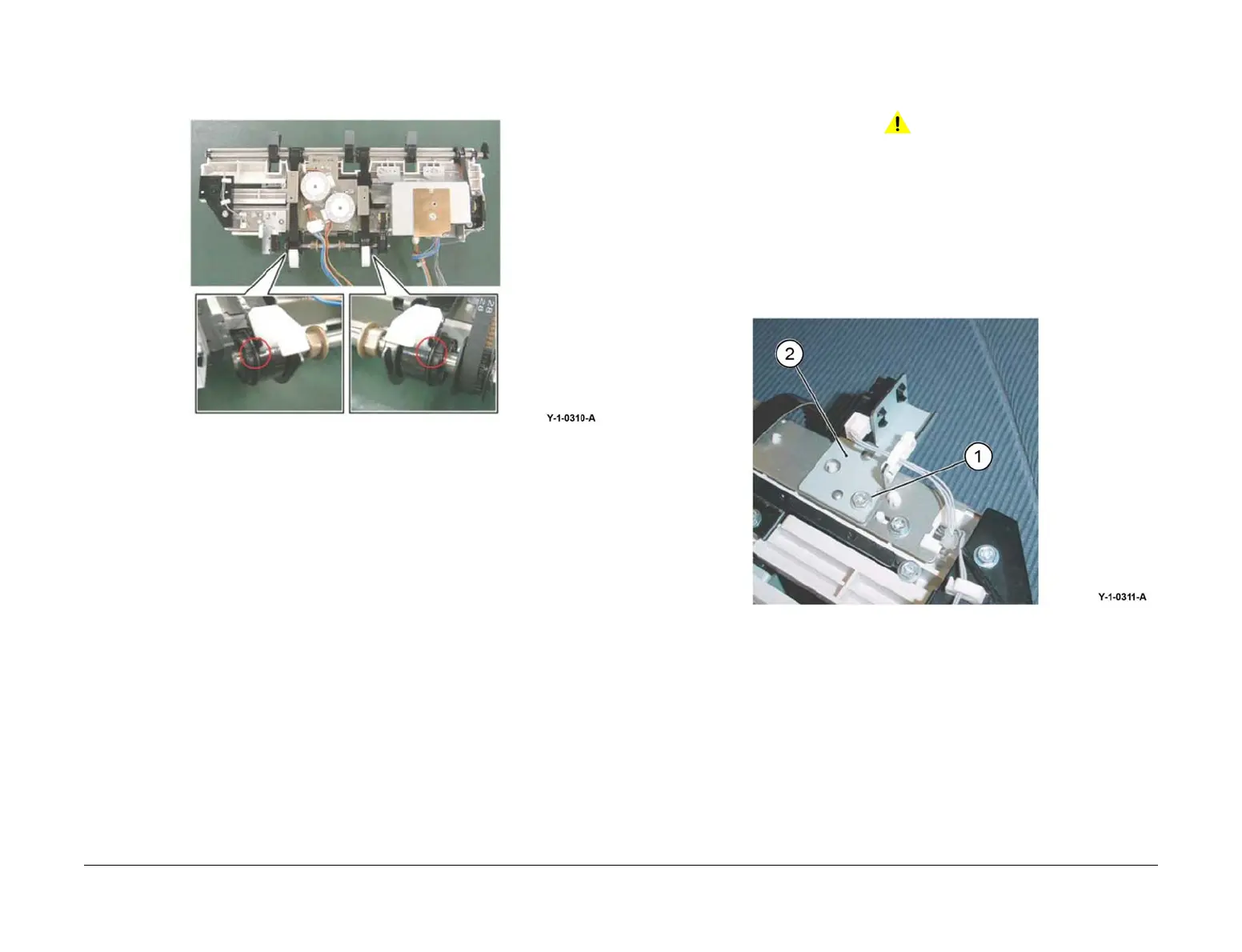

Figure 4 Eject belt installation
REP 12.21 Eject Belt
Parts List on PL 12.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the compiler assembly, REP 12.19.
2. Remove the front/rear tamper motor assembly, REP 12.25.
3. Move the eject home sensor assembly, Figure 1:
a. Remove the screw (1).
b. Move the eject home sensor assembly (2).
Figure 1 Eject home sensor assembly
To Next Page
