Xerox VersaLink B7030

April 2017
5-76
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 60.30
Launch Issue
Parts Lists

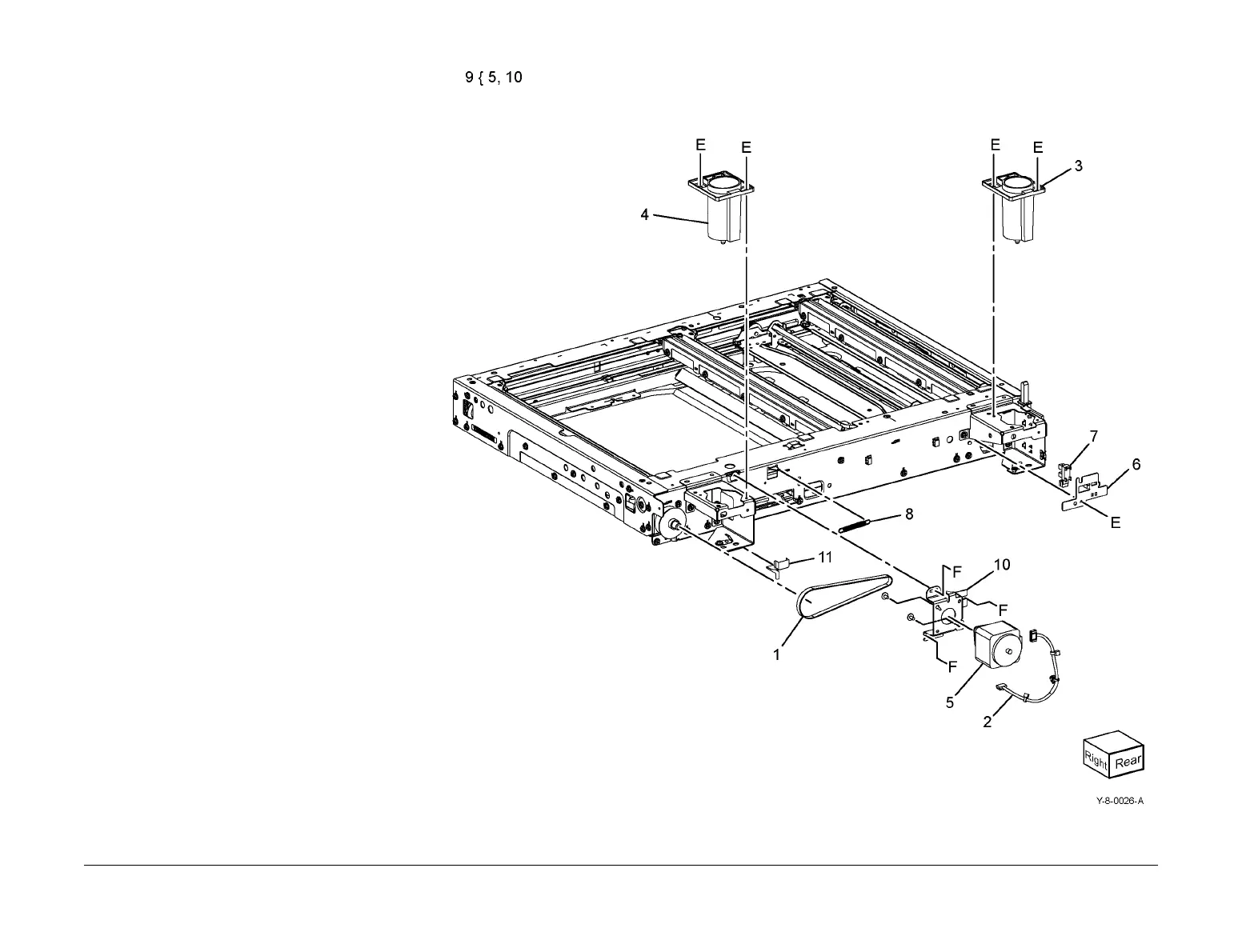

PL 60.30 Motor/Transport PWB
Item Part Description
1 – Drive belt (Not Spared)
2 – Scan motor harness (Not Spared)
3 – Left counterbalance support (Not
Spared)
4 – Right counterbalance support (Not
Spared)
5 – IIT scan motor (MOT62-005) (P/O
PL 60.30 Item 9)
6 – Bracket (Not Spared)
7 930W00123 IIT registration sensor (Q62-212)
8 – Extension spring
9 127K76591 IIT scan motor assembly (REP
60.7)
10 – Motor bracket (P/O PL 60.30 Item
9)
11 – Rear cover ground clip (Not
Spared)
