April 2017
4-34
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.9
Launch Issue
Repairs and Adjustments
REP 5.9 Right Counter Balance
Parts List on PL 5.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF rear cover, REP 5.4.
2. Remove the DADF, REP 5.1.

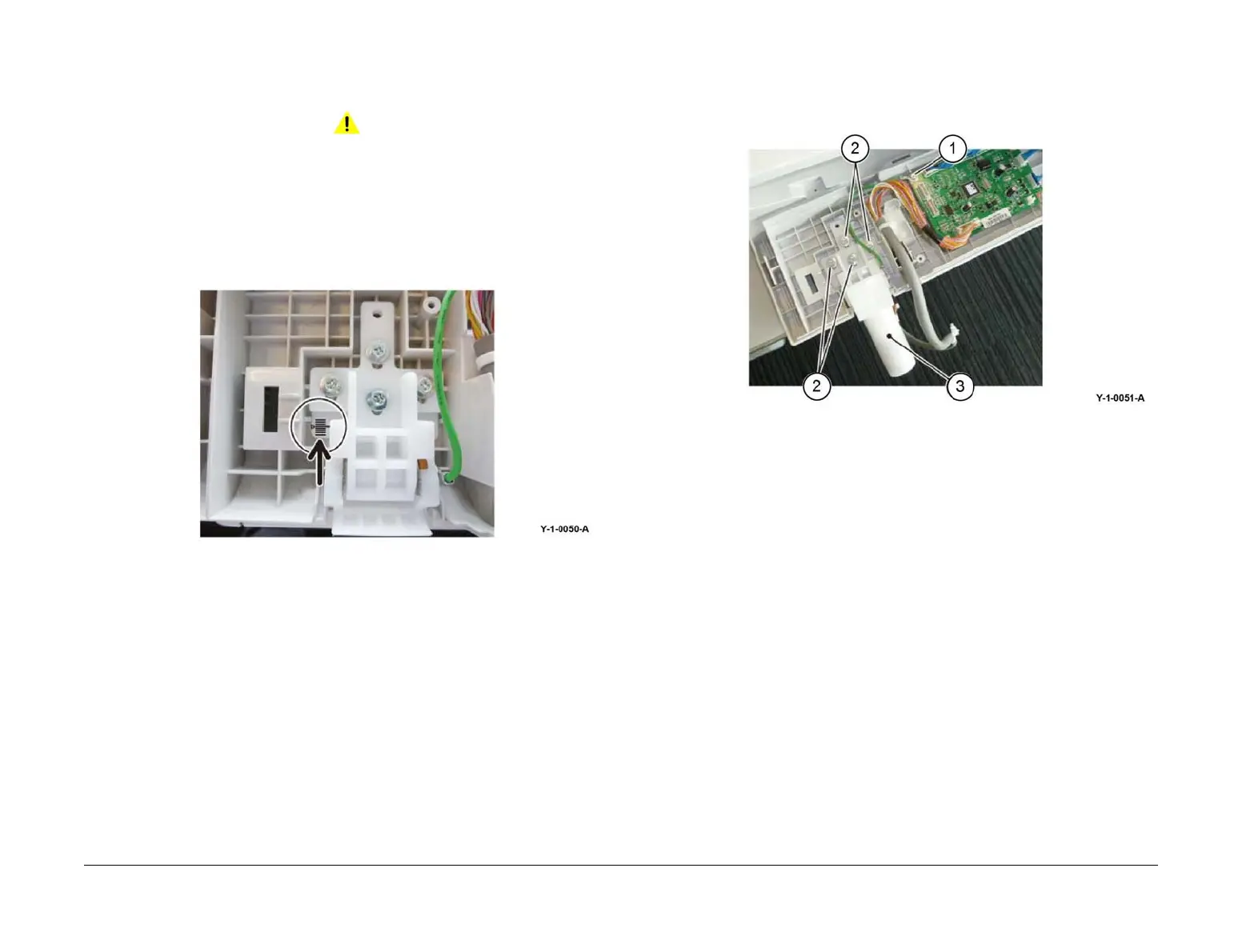

3. Record the position of right counter balance, Figure 1.
Figure 1 Position
4. Remove the right counter balance, Figure 2:
a. Disconnect the ground wire (1).
b. Remove four screws (2).
c. Remove the right counter balance (3).
Figure 2 Counter balance removal
Replacement
The replacement is the reverse of the removal procedure.
