Xerox VersaLink B7030 Service Manual

April 2017
5-52
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.35
Launch Issue
Parts Lists

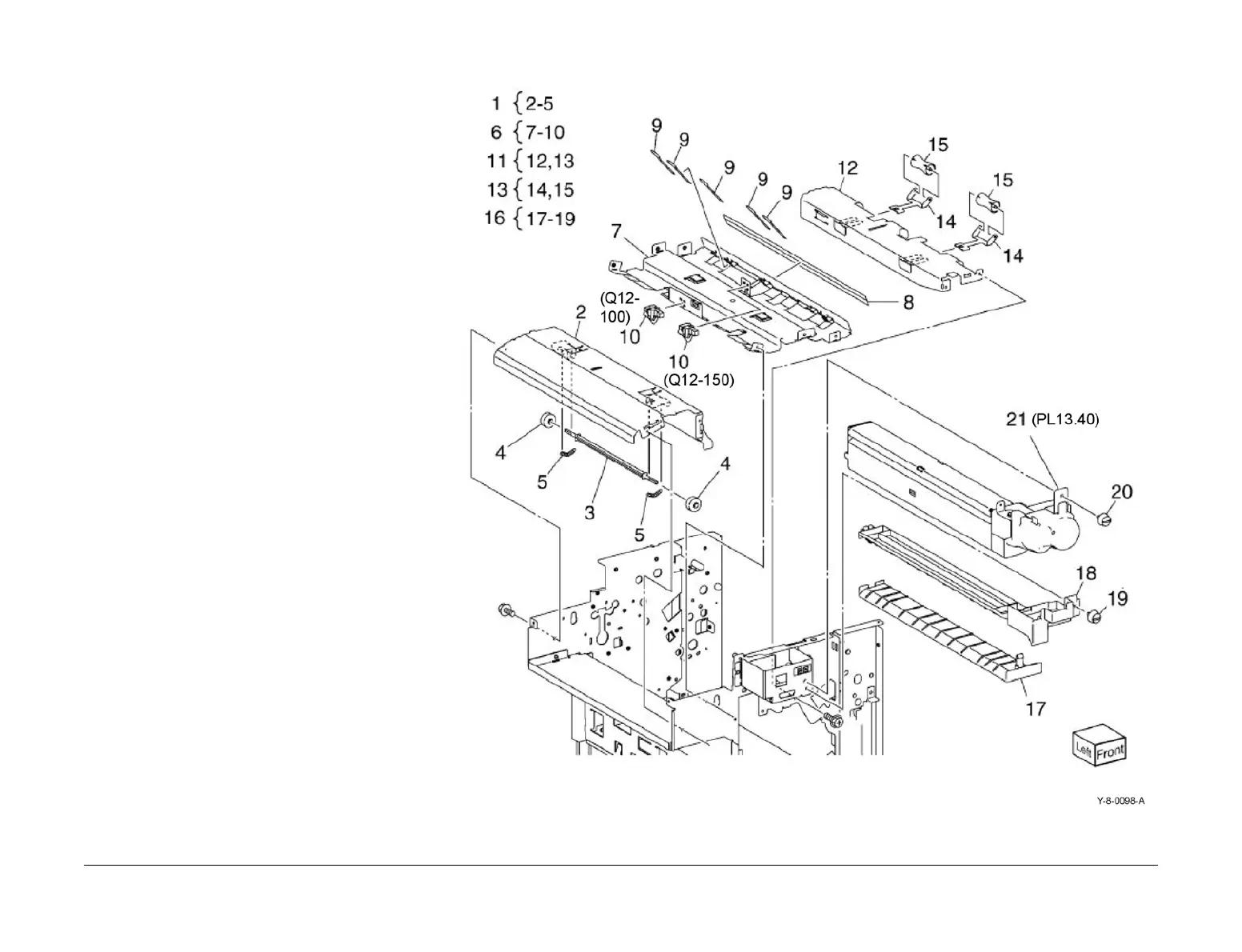

PL 13.35 Office Finisher LX Exit and
Folder Assembly
Item Part Description
1 054K35532 Lower chute assembly
2 – Lower chute (P/O PL 13.35 Item 1)
3 – Shaft (P/O PL 13.35 Item 1)
4 – Nip roll (P/O PL 13.35 Item 1)
5 – Spring (P/O PL 13.35 Item 1)
6 054K35540 Exit upper chute assembly
7 – Exit upper chute (P/O PL 13.35
Item 6)
8 – Static eliminator (P/O PL 13.35
Item 6)
9 – Paper guide (P/O PL 13.35 Item 6)
10 130K88311 Compiler exit sensor (Q12-150)/
transport entry sensor (Q12-100)
11 054K48531 Exit lower chute assembly
12 – Exit lower chute (P/O PL 13.35 Item
11)
13 – Nip roll assembly (P/O PL 13.35
Item 11)
14 – Spring (P/O PL 13.35 Item 13)
15 – Nip roll (P/O PL 13.35 Item 13)
16 607K03960 Chute assembly
17 – Lower chute (P/O PL 13.35 Item
16)
18 – Upper chute (P/O PL 13.35 Item
16)
19 – Thumb screw (P/O PL 13.35 Item
16)
20 – Thumb screw (Not Spared)
21 695K18692 Crease assembly (Option) (REP
13.18)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
