REP 12.6 Exit Roll Assembly
Parts List on PL 12.11
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the upper chute assembly, REP 12.13.
2. Remove the exit roll assembly, Figure 1:
a. Remove the E-ring, then the bearing (1).
b. Remove the E-ring, then the bearing (2).
c. Remove the exit roll assembly (3).

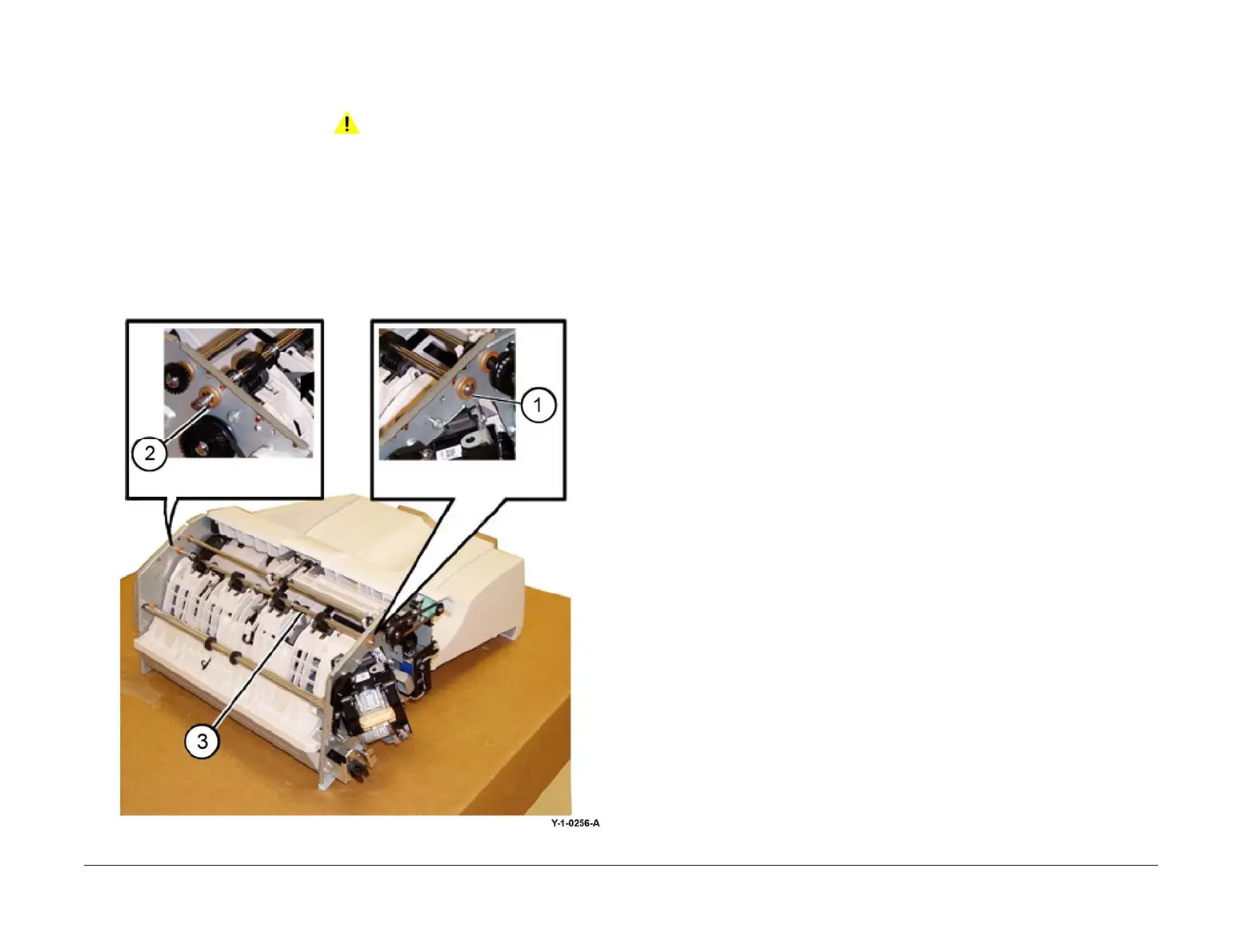

Figure 1 Exit roll assembly removal
Replacement
The replacement is the reverse of the removal procedure.
NOTE: Ensure that the paper guides on the upper chute, PL 12.13 Item 4 are not folded back
on top of the exit roll assembly.
