April 2017
5-90
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.28
Launch Issue
Parts Lists

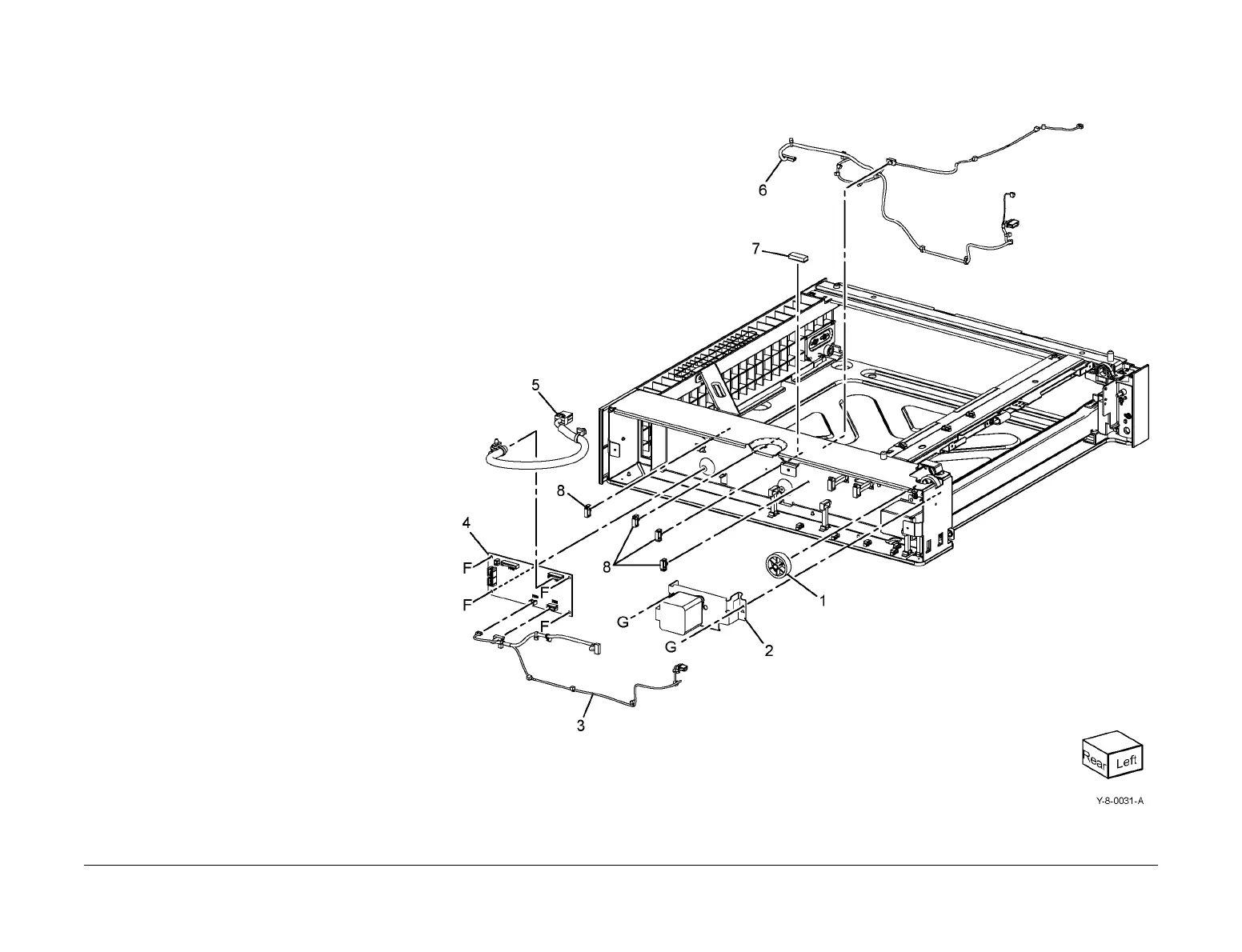

PL 70.28 STM (4 of 4)
Item Part Description
1 807E45050 Gear 65/20
2 049K28360 Takeaway motor (MOT77-033)
(REP 80.14)
3 952K15720 Harness
4 607K04440 STM PWB (REP 80.13)
5 952K15700 Harness
6 952K15710 Harness
7 – Gasket shield (Not Spared)
8 920W01210 Locking clamp
