April 2017
5-17
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.45
Parts Lists
Launch Issue

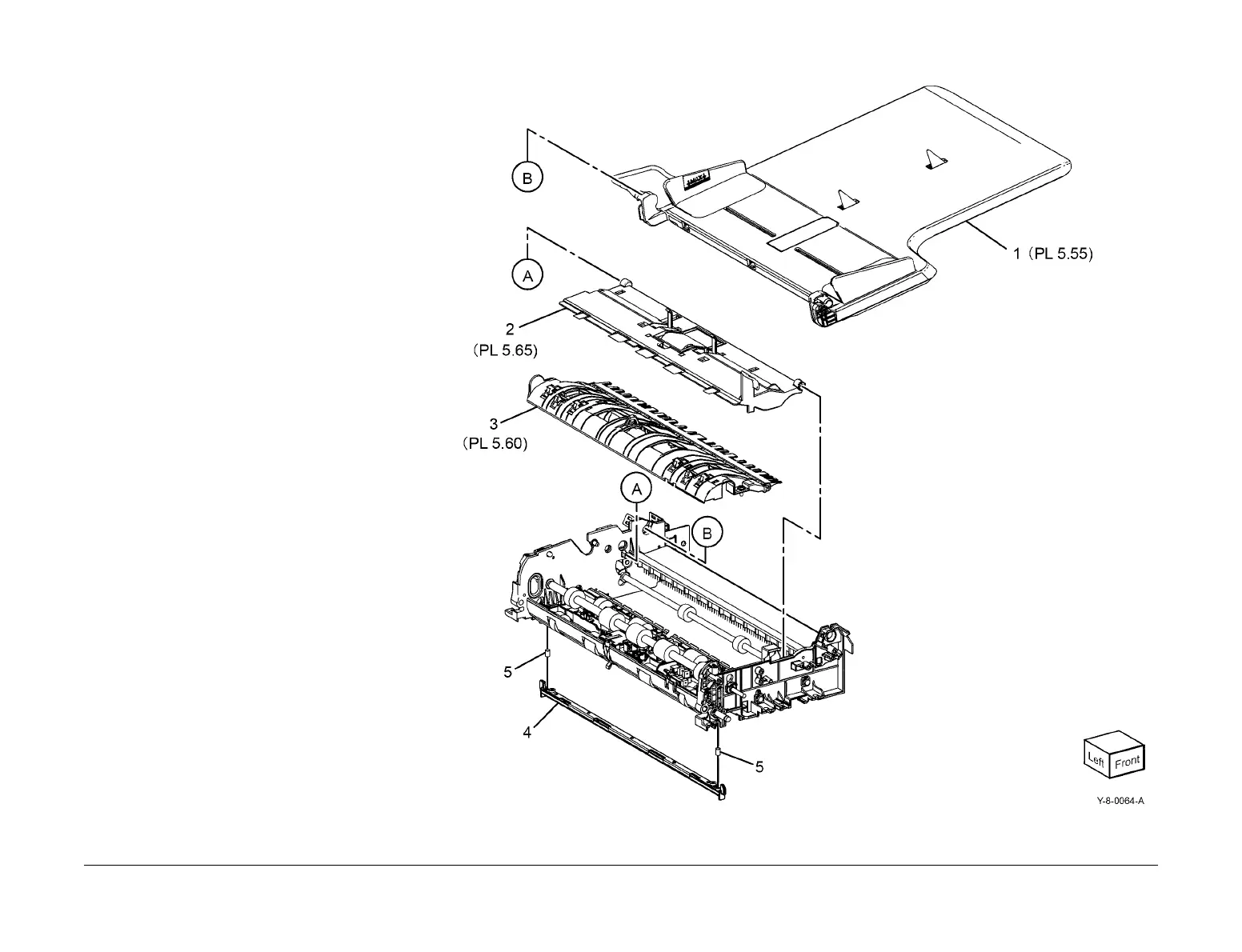

PL 5.45 DADF Tray and Chute
Item Part Description
1 – Document tray (REF: PL 5.55)
(REP 5.14)
2 054K54871 Retard chute assembly (REF: PL
5.65) (REP 5.15)
3 054K54860 Invert chute assembly (REF: PL
5.60) (REP 5.16)
4 – FLT chute assembly (Not Spared)
5 – Floating spring (Not Spared)
