Xerox VersaLink B7030 Service Manual

April 2017
5-58
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.65
Launch Issue
Parts Lists

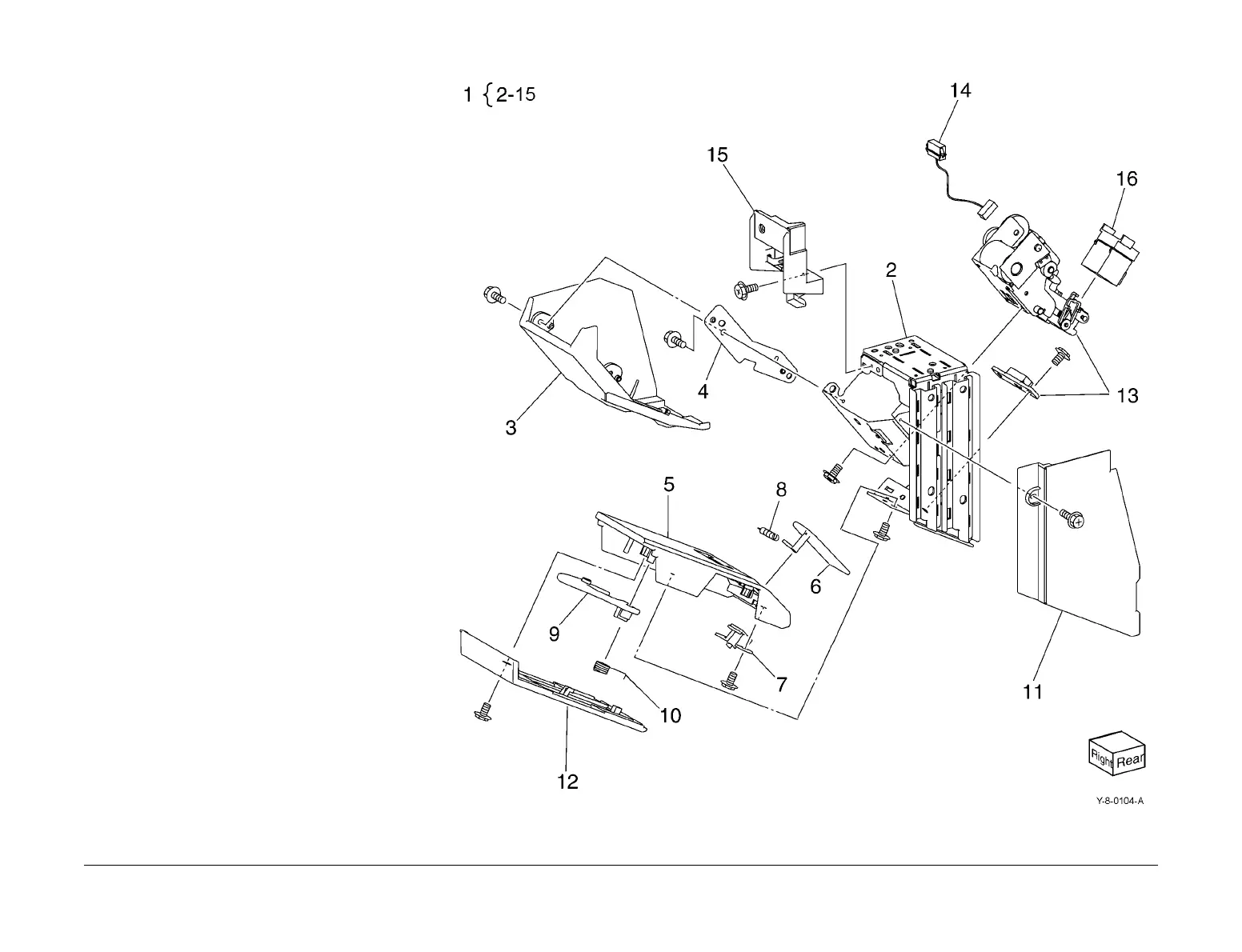

PL 13.65 Office Finisher LX Booklet
Rear Stapler Assembly
Item Part Description
1 029K92501 Booklet rear stapler assembly
2 – Bracket (P/O PL 13.65 Item 1)
3 – Rear cover (P/O PL 13.65 Item 1)
4 – Bracket (P/O PL 13.65 Item 1)
5 – Chute (P/O PL 13.65 Item 1)
6 – Sub chute (P/O PL 13.65 Item 1)
7 – Support (P/O PL 13.65 Item 1)
8 – Spring (P/O PL 13.65 Item 1)
9 – Sub chute (P/O PL 13.65 Item 1)
10 – Spring (P/O PL 13.65 Item 1)
11 – Front cover (P/O PL 13.65 Item 1)
12 – Lower cover (P/O PL 13.65 Item 1)
13 – Booklet stapler assembly (P/O PL
13.65 Item 1) (REP 13.37)
14 – Wire harness (P/O PL 13.65 Item 1)
15 – Guide (P/O PL 13.65 Item 1)
16 008R12964 Booklet staple cassette assembly
