Xerox VersaLink B7030 Service Manual

April 2017
5-64
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 28.06
Launch Issue
Parts Lists

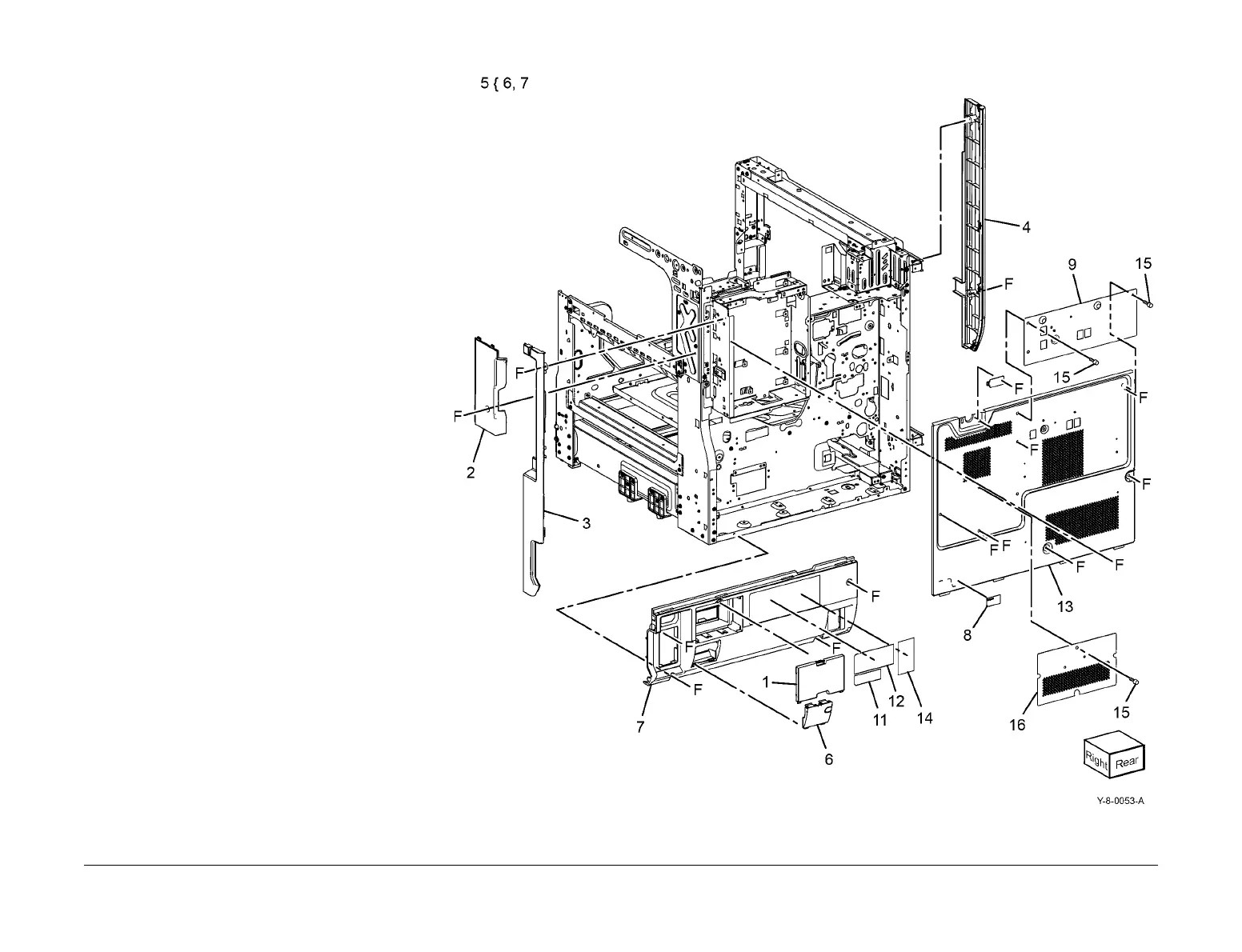

PL 28.06 Covers (2 of 2)
Item Part Description
1 – STM cover (Not Spared)
2 – RH top cover (Not Spared)
3 – RH rear cover (Not Spared)
4 – LH rear cover (Not Spared)
5 – Lower rear cover assembly (Not
Spared) (REP 28.6)
6 – Infill cover (P/O PL 28.06 Item 5)
7 – Lower rear cover (P/O PL 28.06
Item 5) (REP 28.6)
8 – Outlet label (Not Spared)
9 – Fax cover (Not Spared)
10 – Not used
11 – Earth label (Not Spared)
12 – Data plate (Not Spared)
13 – Upper rear cover (P/O PL 28.06
Item 15) (REP 28.5)
14 – Label-PTT (Not Spared)
15 826E14330 Thumbscrew
16 – HDD cover (Not Spared)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
