Xerox VersaLink B7030 Service Manual

April 2017
5-5
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 1.15
Parts Lists
Launch Issue

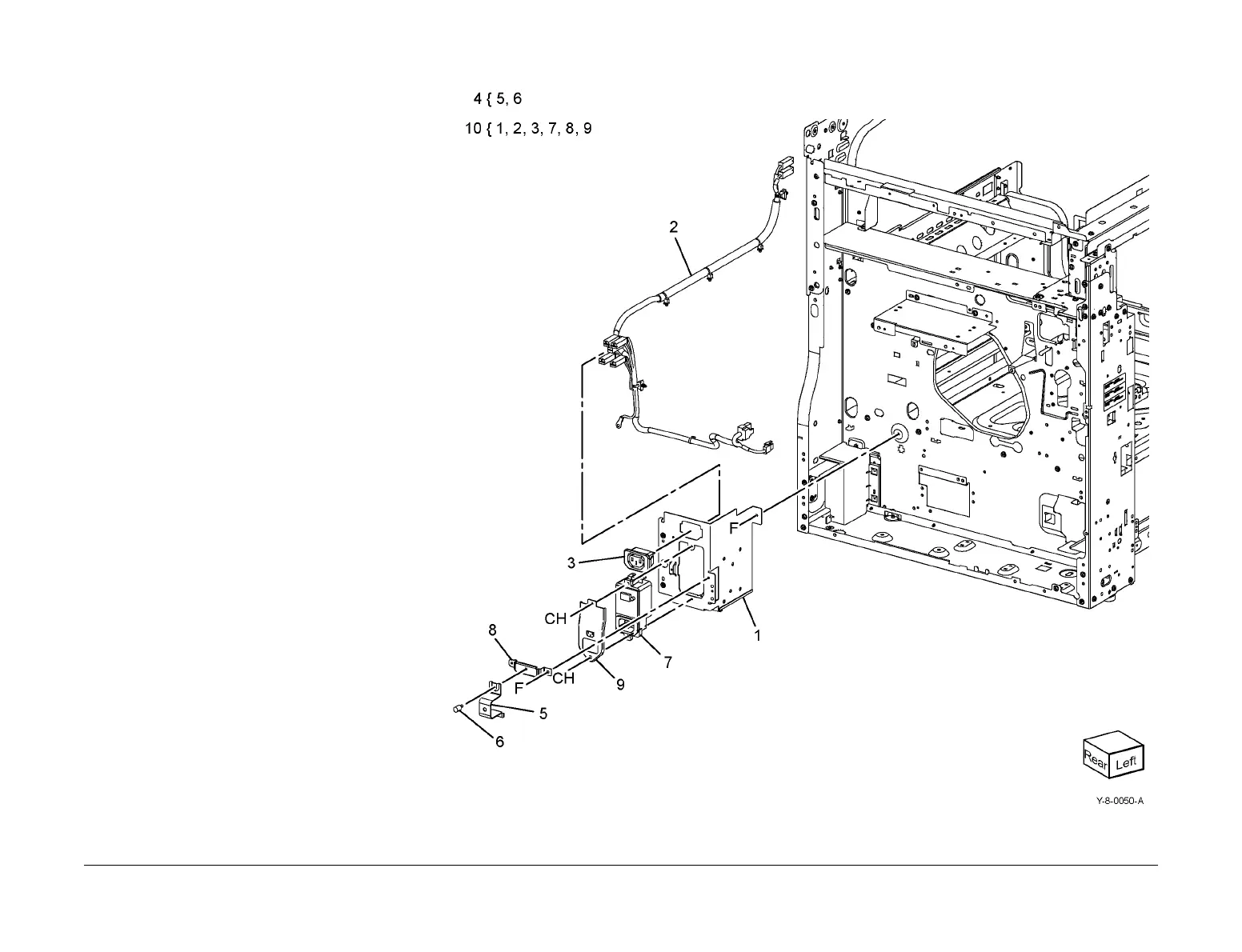

PL 1.15 GFI Breaker
Item Part Description
1 – Support bracket (P/O PL 1.15 Item
10)
2 – AC main harness assembly (P/O
PL 1.15 Item 10)
3 – Finisher outlet (P/O PL 1.15 Item
10)
4 – AC bracket assembly (Not Spared)
5 – AC stopper bracket (P/O PL 1.15
Item 4)
6 – Screw (P/O PL 1.15 Item 4)
7 – Inlet GFI breaker (P/O PL 1.15 Item
10)
8 – Connect bracket (P/O PL 1.15 Item
10)
9 – Inlet bracket (P/O PL 1.15 Item 10)
10 101K72840 AC chassis assembly
11 917W03102 Power cord 220V
– 917W03005 Power cord 110V
