Xerox VersaLink B7030 Service Manual

April 2017
5-96
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.51
Launch Issue
Parts Lists

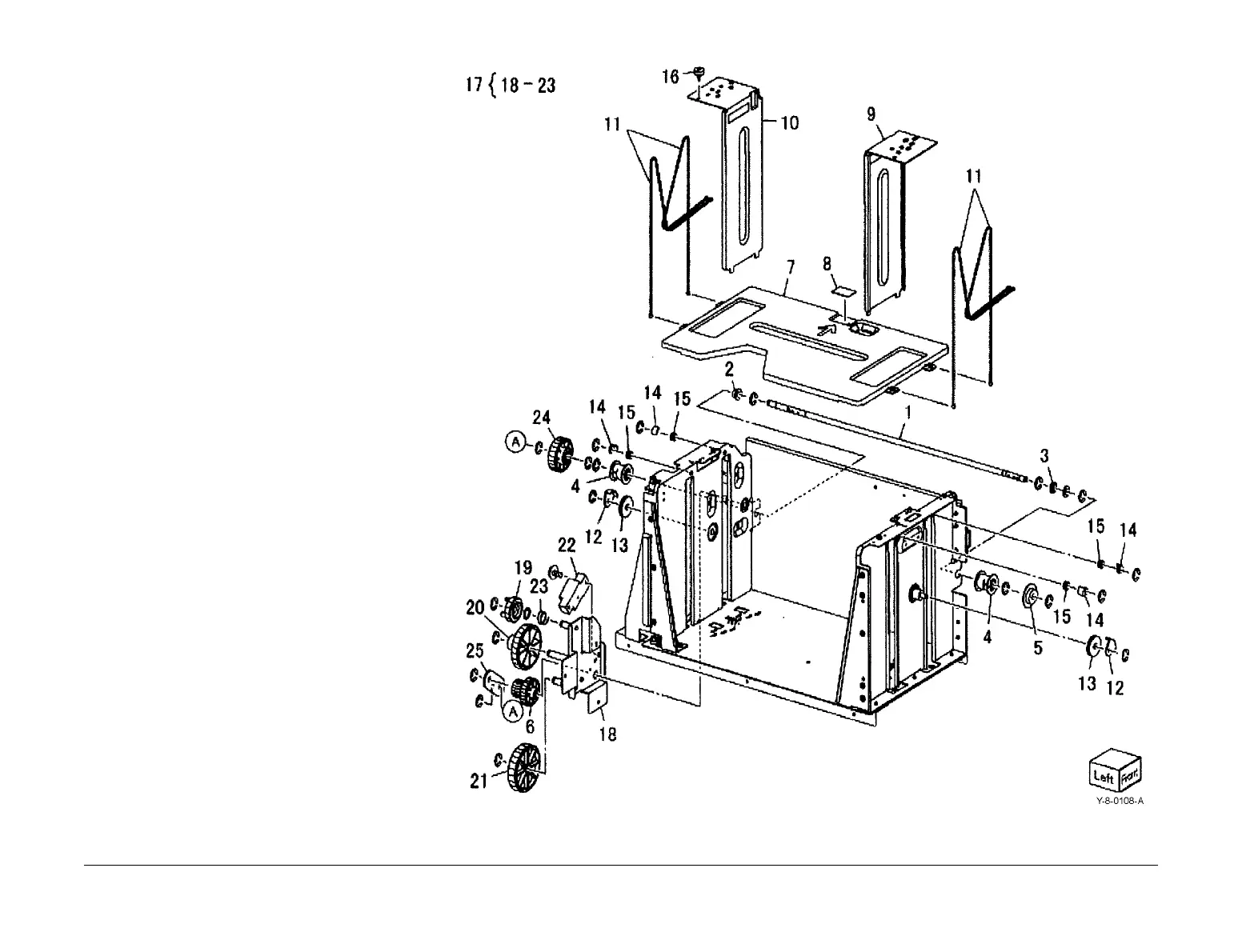

PL 70.51 HCF (2 of 2)
Item Part Description
1 – Lift shaft (P/O PL 70.45 Item 5)
2 – Bearing (P/O PL 70.45 Item 5)
3 – Bearing (P/O PL 70.45 Item 5)
4 020E37620 Tray cable pulley
5 – Gear (P/O PL 70.45 Item 5)
6 – Gear (P/O PL 70.45 Item 5)
7 – Bottom plate (P/O PL 70.45 Item 5)
8 019E58620 Pad
9 – Front side guide (P/O PL 70.45
Item 5)
10 – Rear side guide (P/O PL 70.45 Item
5)
11 604K19981 Rear cables (REP 70.5)/front
cables (REP 70.6)
12 032E22410 Wire guide (L)
13 – Pulley (P/O PL 70.45 Item 5)
14 – Wire guide (S) (P/O PL 70.45 Item
5)
15 – Pulley (P/O PL 70.45 Item 5)
16 – Screw (P/O PL 70.45 Item 5)
17 015K65532 Gear bracket assembly
18 – Gear bracket (P/O PL 70.51 Item
17)
19 – Contact gear (P/O PL 70.51 Item
17)
20 – Gear (P/O PL 70.51 Item 17)
21 – Gear (P/O PL 70.51 Item 17)
22 – Brake (P/O PL 70.51 Item 17)
23 – Spring (P/O PL 70.51 Item 17)
24 807E04500 Lift gear
25 – Plate (P/O PL 70.45 Item 5)
