Xerox VersaLink B7030 Service Manual

April 2017
8-13
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
DADF
NOTE: A video is available on the EDOC that provides additional information. The video is
accessible from the Library menu on the Service Interface.
Document Feeding Overview
The duplexing automatic document feeder (DADF) scans single or multi-page documents auto-
matically. Single-sided and double-sided documents can be fed. Mixed sizes can be run after
the appropriate selections are made on the UI
The DADF can invert a document to scan images on both sides, and it employs a constant
velocity transport (CVT) system. With the CVT system, the lamp carriage of the IIT is fixed at a
specified position (the scan position) where images are scanned as documents feed across the
platen at a constant speed. Refer to Figure 1.

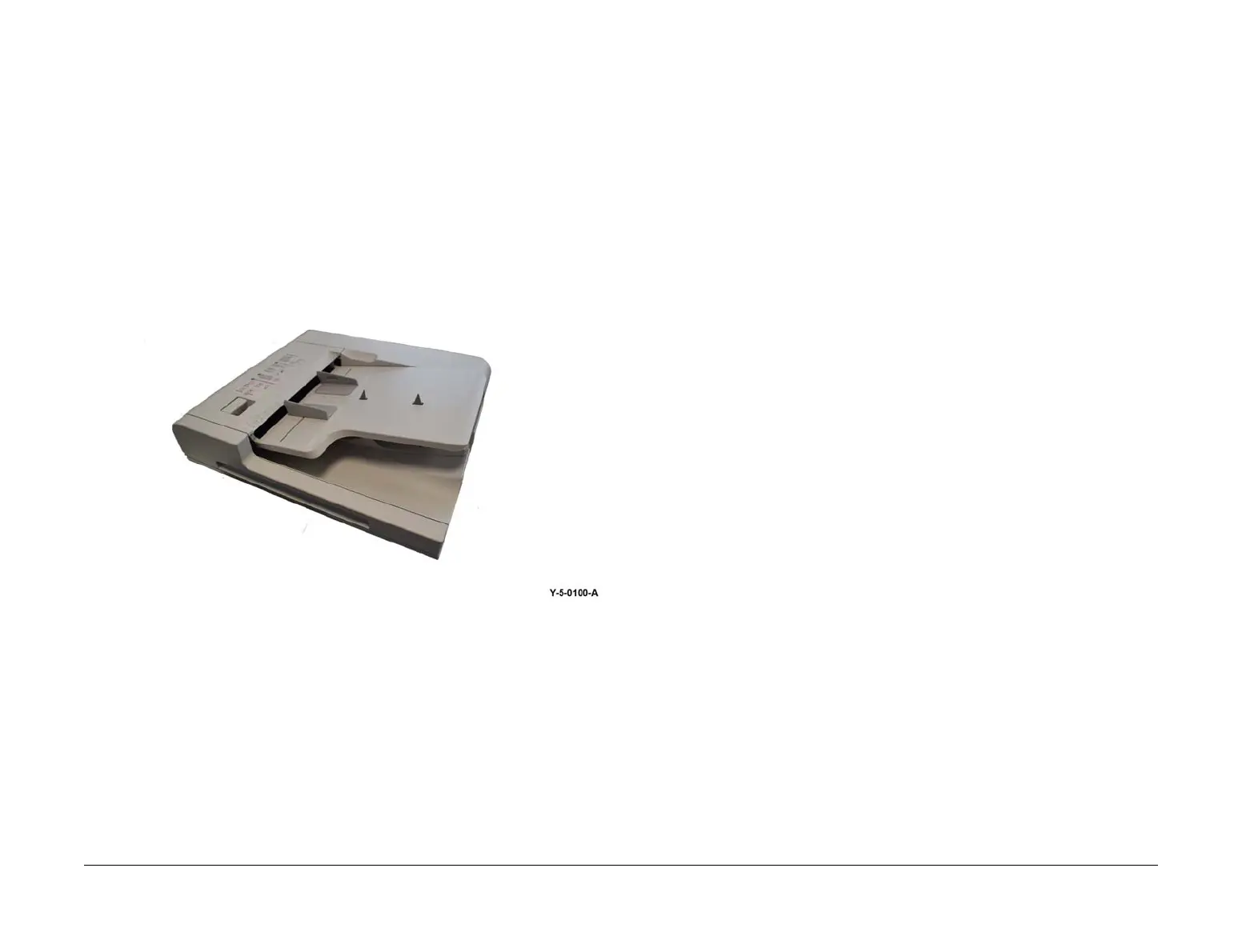

Figure 1 DADF
The DADF performs the following functions:
• Automatically separates and feeds documents for copying.
• Automatically senses the document size.
• De-skews the documents before they are copied.
• Automatically inverts two-sided documents for duplex copying.
• Automatically stacks copied documents on the exit tray in the correct order and same ori-
entation in which they were fed.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
