Xerox VersaLink B7030 Service Manual

April 2017
5-122
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.61
Launch Issue
Parts Lists

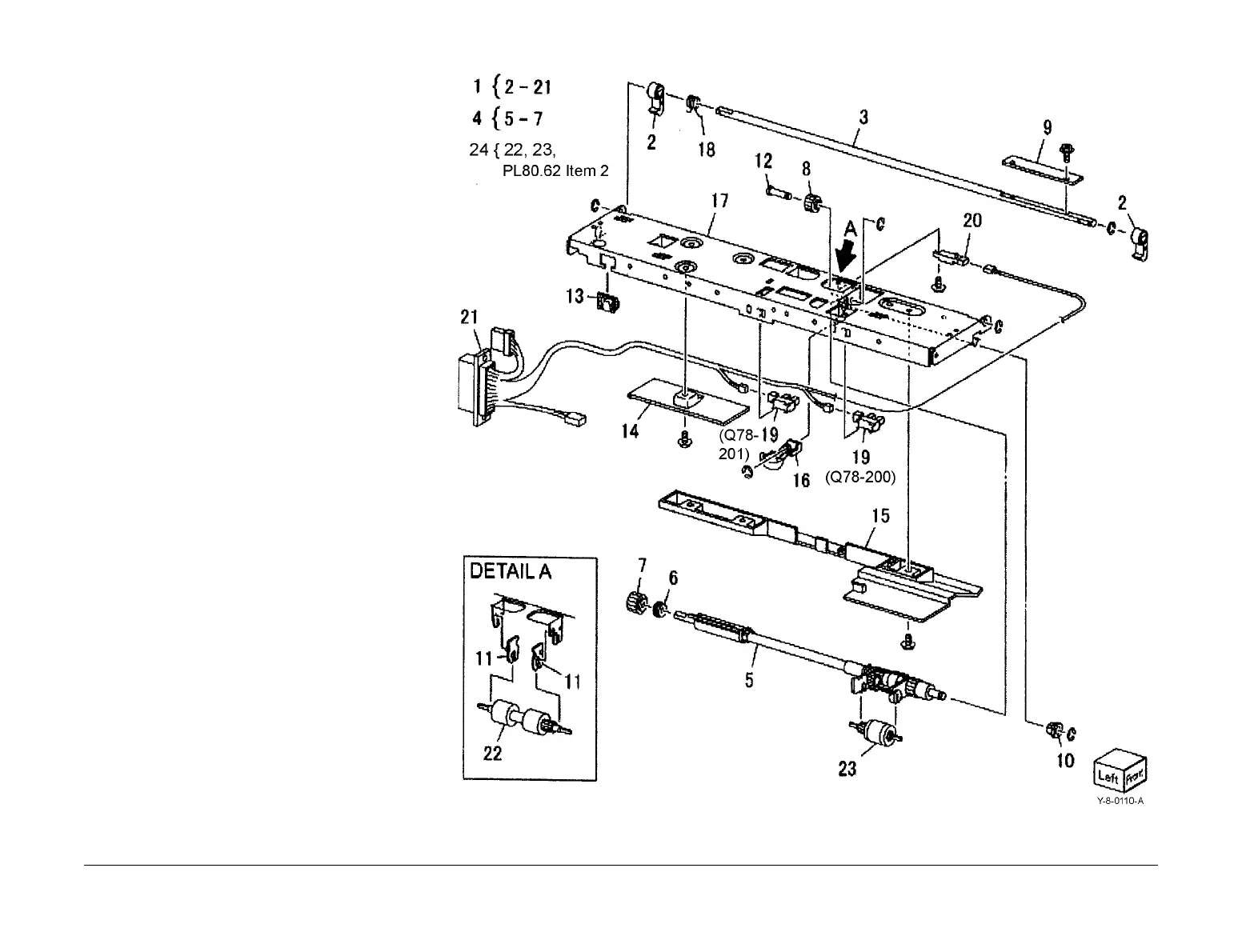

PL 80.61 HCF Feeder (2 of 3)
Item Part Description
1 – Upper feeder assembly (P/O PL
70.45 Item 11)
2 003E59570 Latch
3 – Shaft latch (P/O PL 80.61 Item 1)
4 006K23124 Feed shaft assembly (REP 80.23,
REP 80.25)
5 – Feed shaft (P/O PL 80.61 Item 4)
6 413W66250 Ball bearing
7 – Gear 20T (P/O PL 80.61 Item 4)
8 007E78180 Feed gear 25T
9 – Lever (P/O PL 80.61 Item 1)
10 – Bearing (P/O PL 80.61 Item 1)
11 – Spacer (P/O PL 80.61 Item 1)
12 – Pin drive (P/O PL 80.61 Item 1)
13 – Guide (P/O PL 80.61 Item 1)
14 – Rear upper chute (P/O PL 80.61
Item 1)
15 – Upper chute (P/O PL 80.61 Item 1)
16 120E21900 Actuator
17 – Upper frame (P/O PL 80.61 Item 1)
18 – Spring (P/O PL 80.61 Item 1)
19 930W00112 HCF no paper sensor (Q78-200)/
HCF level sensor (78-201)
20 – HCF Pre feed sensor (Q78-100)
(P/O PL 80.61 Item 1)
21 – Wire harness (P/O PL 80.61 Item 1)
22 – Feed roll (P/O PL 80.61 Item 24)
23 – Nudger roll (P/O PL 80.61 Item 24)
24 604K23660 Feed roller kit (REP 80.22)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
