REP 13.32 Booklet Front Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet maker assembly from the finisher, REP 13.31.

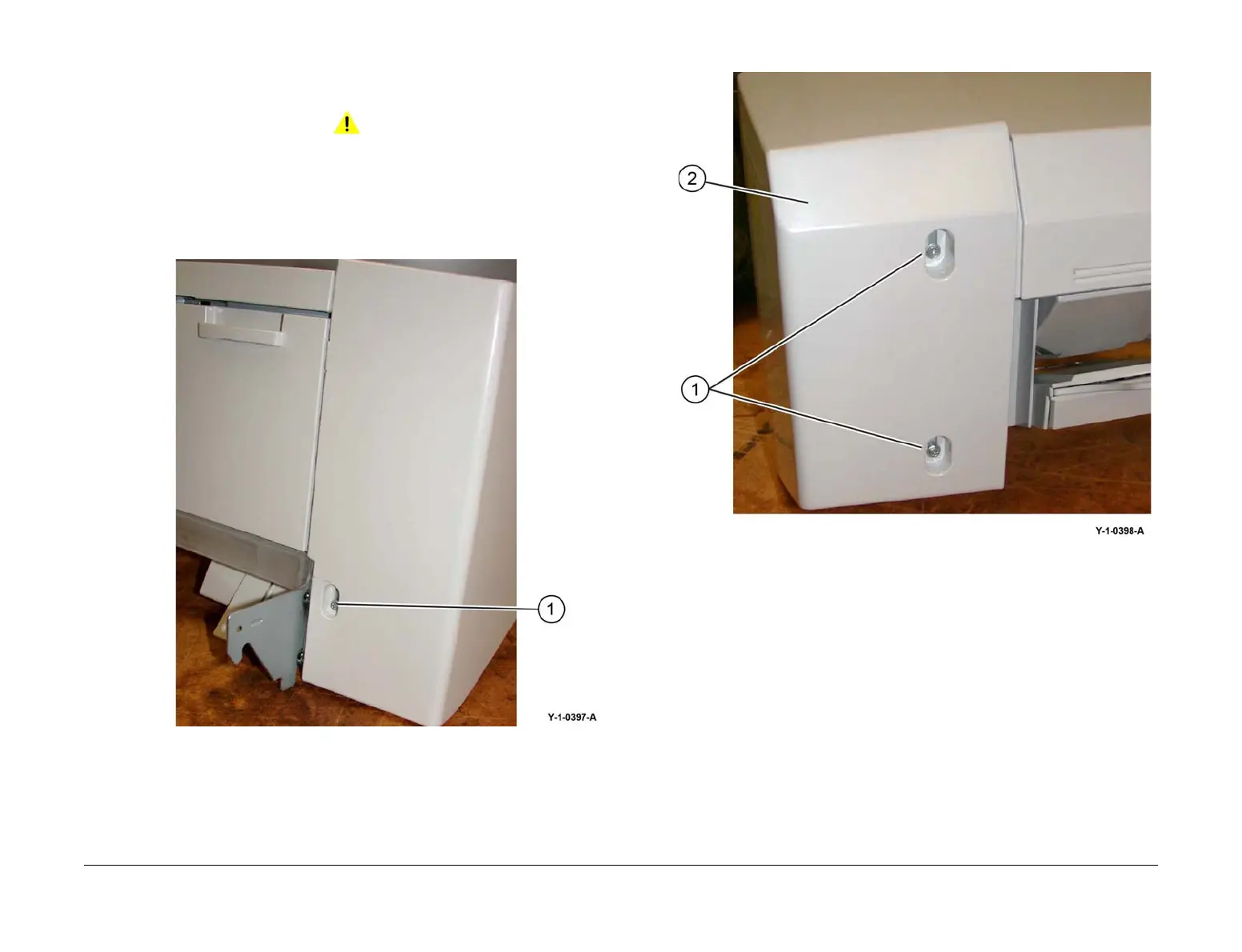

2. Remove the screw (1), Figure 1.
Figure 1 Screw removal
3. Remove two screws (1), then the booklet front cover (2), Figure 2.
Figure 2 Booklet front cover removal
Replacement
The replacement is the reverse of the removal procedure.
