Xerox VersaLink B7030 Service Manual

April 2017
5-24
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.10
Launch Issue
Parts Lists

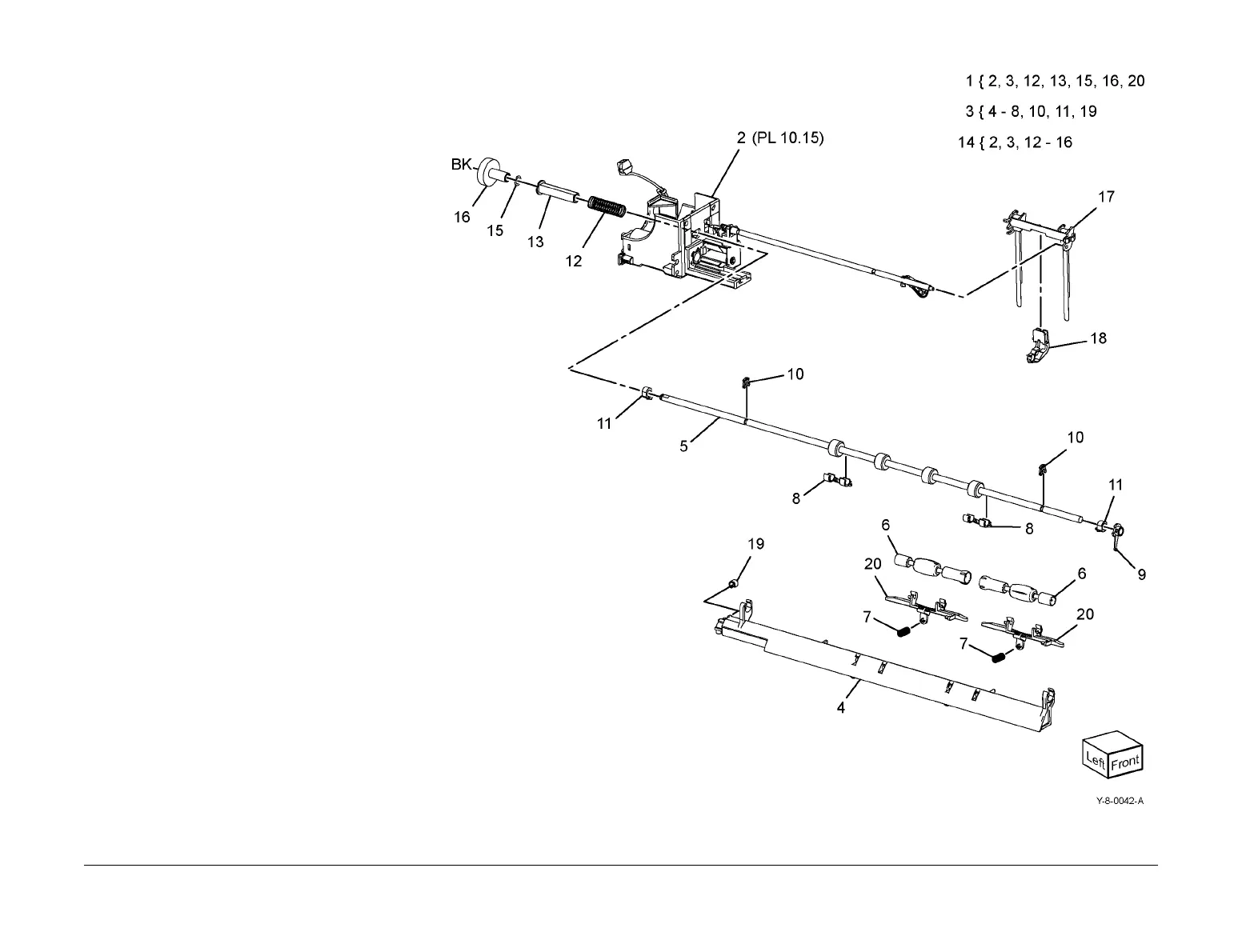

PL 10.10 Exit 1
Item Part Description
1 859K00502 Exit 1 OCT assembly (REP 10.1)
2 – Exit 1 base assembly (P/O PL
10.10 Item 1)
3 – OCT chute assembly (P/O PL
10.10 Item 1)
4 – OCT chute (P/O PL 10.10 Item 3)
5 – Exit 1 roller assembly (P/O PL
10.10 Item 3)
6 – Nip roll (P/O PL 10.10 Item 3)
7 – Spring (P/O PL 10.10 Item 3)
8 – Exit guard (P/O PL 10.10 Item 3)
9 – Bearing (Not Spared)
10 – Clip shaft (P/O PL 10.10 Item 3)
11 – Bearing (P/O PL 10.10 Item 3)
12 – OCT back spring (P/O PL 10.10
Item 1)
13 – Bearing OCT (P/O PL 10.10 Item 1)
14 – Full stack chute assembly (Not
Spared)
15 – Plain washer (P/O PL 10.10 Item 1)
16 – OCT gear (P/O PL 10.10 Item 1)
17 036K92030 Paper exit 1 weight assembly
18 – Exit 1 CTR guard (Not Spared)
19 – OCT collar (P/O PL 10.10 Item 3)
20 – Nip roll holder (P/O PL 10.10 Item
1)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
