Xerox VersaLink B7030

April 2017
5-102
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.70
Launch Issue
Parts Lists

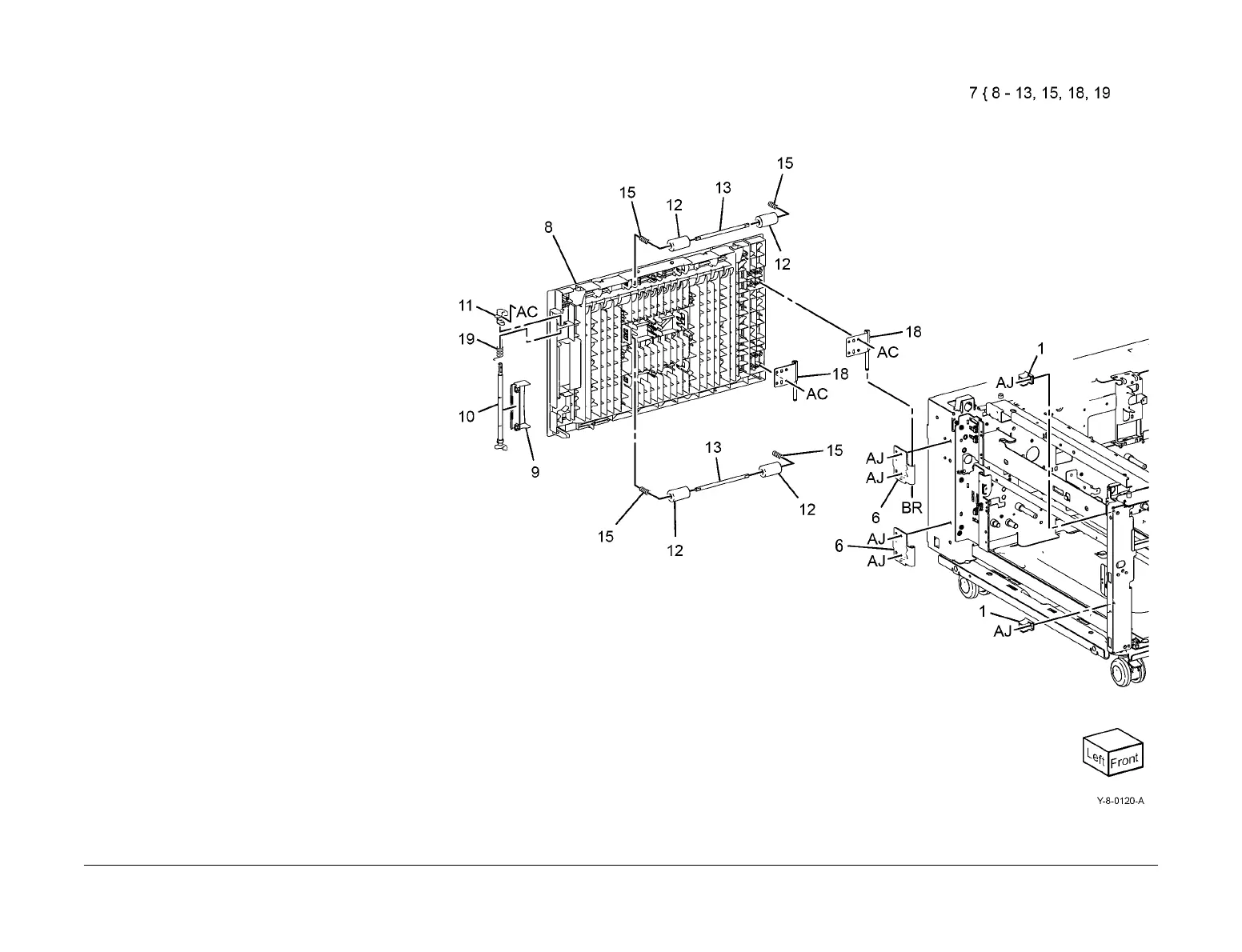

PL 70.70 TTM Left Cover Assembly
Item Part Description
1 – Door catch (Not Spared)
2 – Not used
3 – Not used
4 – Not used
5 – Not used
6 – Hinge frame bracket (Not Spared)
7 948K03890 Left cover assembly
8 – Left cover (P/O PL 70.70 Item 7)
9 – Handle (P/O PL 70.70 Item 7)
10 – Latch (P/O PL 70.70 Item 7)
11 – Hook (P/O PL 70.70 Item 7)
12 059E99241 Nip roll
13 – Nip spring (P/O PL 70.70 Item 7)
14 – Not used
15 – Pinch spring (P/O PL 70.70 Item 7)
16 – Not used
17 – Not used
18 – Hinge bracket assembly (P/O PL
70.70 Item 7)
19 – Spring (P/O PL 70.70 Item 7)
