Xerox VersaLink B7030 Service Manual

April 2017
5-129
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 90.20
Parts Lists
Launch Issue

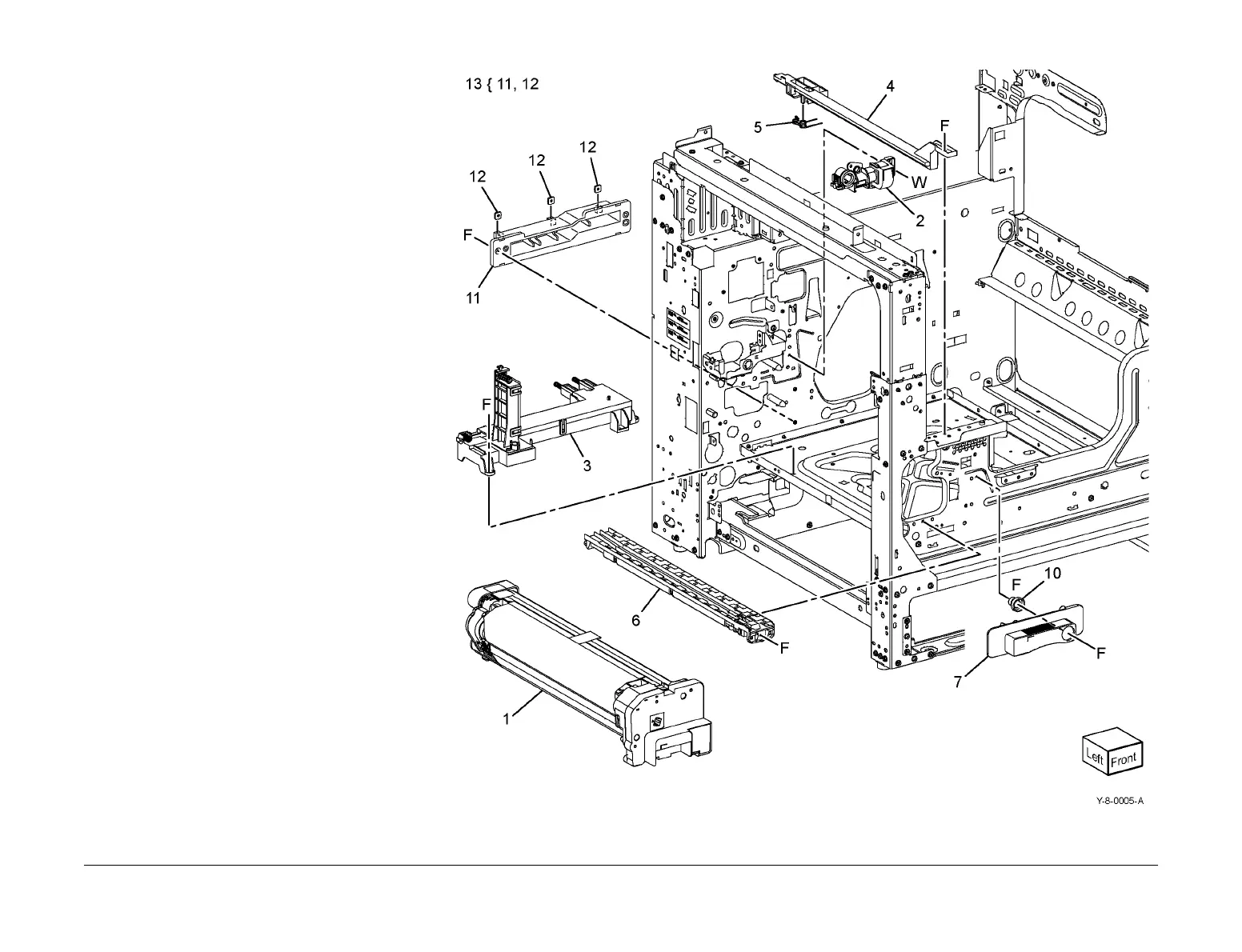

PL 90.20 Xerographic Components
Item Part Description
1 113R00779 Drum cartridge (REP 90.4)
2 052K13870 Reclaim pipe assembly (REP 90.5)
3 848K94940 AC housing assembly (REP 90.6)
4 – CRU upper guide (Not Spared)
5 – Conductor (Not Spared)
6 – Lower guide assembly (Not
Spared)
7 803E27170 CRU handle
8 – Not used
9 – Not used
10 013E38891 Handle bearing
11 – HV conductor housing (P/O PL
90.20 Item 13)
12 – Plate nut (P/O PL 90.20 Item 13)
13 604K96920 HV housing assembly
